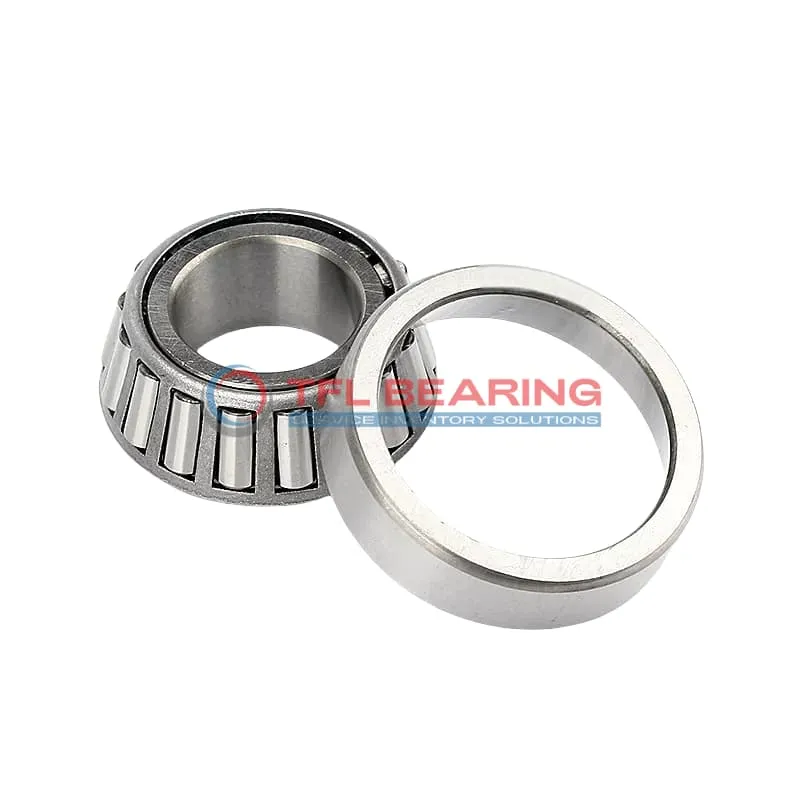

TS (Single Row Tapered Roller Bearings) (Imperial) 597A-593X

TS (Single Row Tapered Roller Bearings) (Imperial) 597A-593X

The 597A-593X is a single-row tapered roller bearing with a 3.6″ bore and 5.9″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 48,600 lbf radially and 9,530 lbf thrust, making it sturdy for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for varied environments.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for industrial machinery, gearboxes, or vehicles where combined loads are common.

Weighing 5.2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for most applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 597A-593X
  • Brand TFL
  • Interchangeable Timken
  • Size 3.5965" x 5.9055" x 1.417"
  • Bore Dia 3.5965"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5.9055"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.43"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.063"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.417"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.12"
  • Cone Frontface Backing Diameter 4.64"
  • Cone Backface Backing Diameter 4.21"
  • Cup Frontface Backing Diameter 5.63"
  • Cup Backface Backing Diameter 5.28"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location 0.1"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 597A
  • Cup Part Number 593X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 595
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 71600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9530 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.2 lb

Features

Performance Features of 597A-593X Bearing

597A-593X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 48,600 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

597A-593X Bearing requires lubrication, ensuring smooth operation and reduced wear over time.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Industrial Uses of 597A-593X Bearing
597A-593X Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 597A-593X Bearing supports wheel hubs and differential systems, providing reliable performance under high stress. Its inch sizing makes it compatible with many North American vehicle models.

For industrial gearboxes, 597A-593X Bearing’s open design allows for easy lubrication, extending service life. The steel cage adds stability, making it suitable for high-speed operations.

Where Is 597A-593X Bearing Used?
597A-593X Bearing is found in agricultural machinery, particularly in tractors and harvesters, where its robust design withstands heavy loads. The standard radial clearance ensures smooth operation.

In mining equipment, 597A-593X Bearing excels in conveyor systems, thanks to its high dynamic radial load capacity. The tapered rollers distribute stress evenly, reducing wear.

Built for Heavy-Duty Use: 597A-593X Bearing
597A-593X Bearing is ideal for forestry machinery, handling the rough terrain and variable loads. Its chrome steel rollers provide consistent performance in harsh conditions.

For railway applications, 597A-593X Bearing supports axle boxes, ensuring reliable operation over long distances. The ABEC-1 rating balances precision and cost-effectiveness.

Automotive vs Aerospace: Applications of 597A-593X Bearing
In automotive systems, 597A-593X Bearing is used in drivetrains, where its combined load capacity is essential. The inch measurements simplify integration with existing designs.

For aerospace ground equipment, 597A-593X Bearing handles heavy loads in tow tractors and loading systems. Its temperature range suits various operational environments.
