TS (Single Row Tapered Roller Bearings) (Imperial) 596-593X

TS (Single Row Tapered Roller Bearings) (Imperial) 596-593X

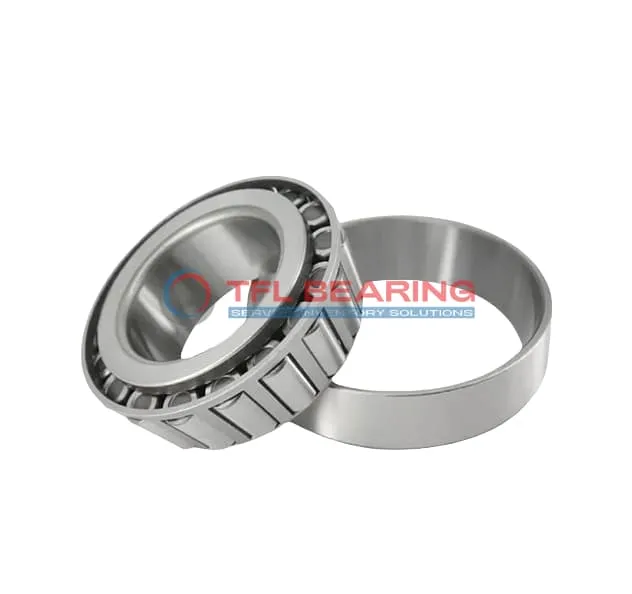

The 596-593X is a single-row tapered roller bearing with a 3.375″ bore and 5.9055″ outer diameter, crafted from robust chrome steel. It handles combined loads up to 48600 lbf radially and 9530 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in industrial machinery or automotive systems where combined loads are common.

Weighing 5.7 lb, it’s built to last while meeting RoHS and REACH standards for safety and environmental compliance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 596-593X
  • Brand TFL
  • Interchangeable Timken
  • Size 3.375" x 5.9055" x 1.417"
  • Bore Dia 3.375"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5.9055"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.43"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.063"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.417"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.12"
  • Cone Frontface Backing Diameter 4.53"
  • Cone Backface Backing Diameter 4.02"
  • Cup Frontface Backing Diameter 5.63"
  • Cup Backface Backing Diameter 5.28"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0.15"
  • Effective Center Location -0.1"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 596
  • Cup Part Number 593X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 595
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 71600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9530 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.7 lb

Features

Performance Features of 596-593X Bearing

596-593X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 48,600 lbf, ensuring reliable performance in demanding conditions.

The tapered roller design of 596-593X Bearing provides effective load distribution, reducing wear and extending service life.
With a standard radial clearance, it balances durability and efficiency in various applications.

596-593X Bearing operates within a temperature range of -30° to 110°C, making it suitable for diverse environments.
The steel cage maintains roller alignment, ensuring smooth and consistent operation.

Designed for easy lubrication, 596-593X Bearing simplifies maintenance and reduces downtime.
Its ABEC-1 rating guarantees precision and reliability in industrial settings.

Application

Industrial Uses of 596-593X Bearing
The 596-593X Bearing is commonly used in heavy machinery, such as construction equipment and mining gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 596-593X Bearing fits well in wheel hubs and differential systems, providing reliable performance under both radial and thrust loads. The inch sizing makes it compatible with many American vehicle models.

For industrial automation, 596-593X Bearing supports conveyor systems and robotic arms, where its open design allows for easy lubrication. The steel cage adds stability during high-speed operations.

Where Is 596-593X Bearing Used?
You’ll often find 596-593X Bearing in agricultural machinery, like tractors and harvesters, where its robust design handles uneven loads. The standard radial clearance ensures smooth operation in varying conditions.

In material handling equipment, 596-593X Bearing excels in forklifts and cranes, thanks to its high dynamic radial load capacity. The ABEC-1 rating makes it suitable for general industrial use.

Built for Heavy-Duty Use: 596-593X Bearing
The 596-593X Bearing is ideal for forestry equipment, such as log splitters, where its tapered rollers manage heavy loads effortlessly. The chrome steel rollers resist wear over time.

In power transmission systems, 596-593X Bearing supports gearboxes and pulleys, ensuring consistent performance. Its inch measurements simplify replacements in older machinery.

Automotive vs Aerospace: Applications of 596-593X Bearing
In automotive settings, 596-593X Bearing is trusted for axle assemblies, offering a balance of strength and precision. The open seal design allows for straightforward maintenance.

For aerospace ground equipment, 596-593X Bearing handles the rigorous demands of aircraft tow tractors. Its temperature range suits both cold and moderate climates.
