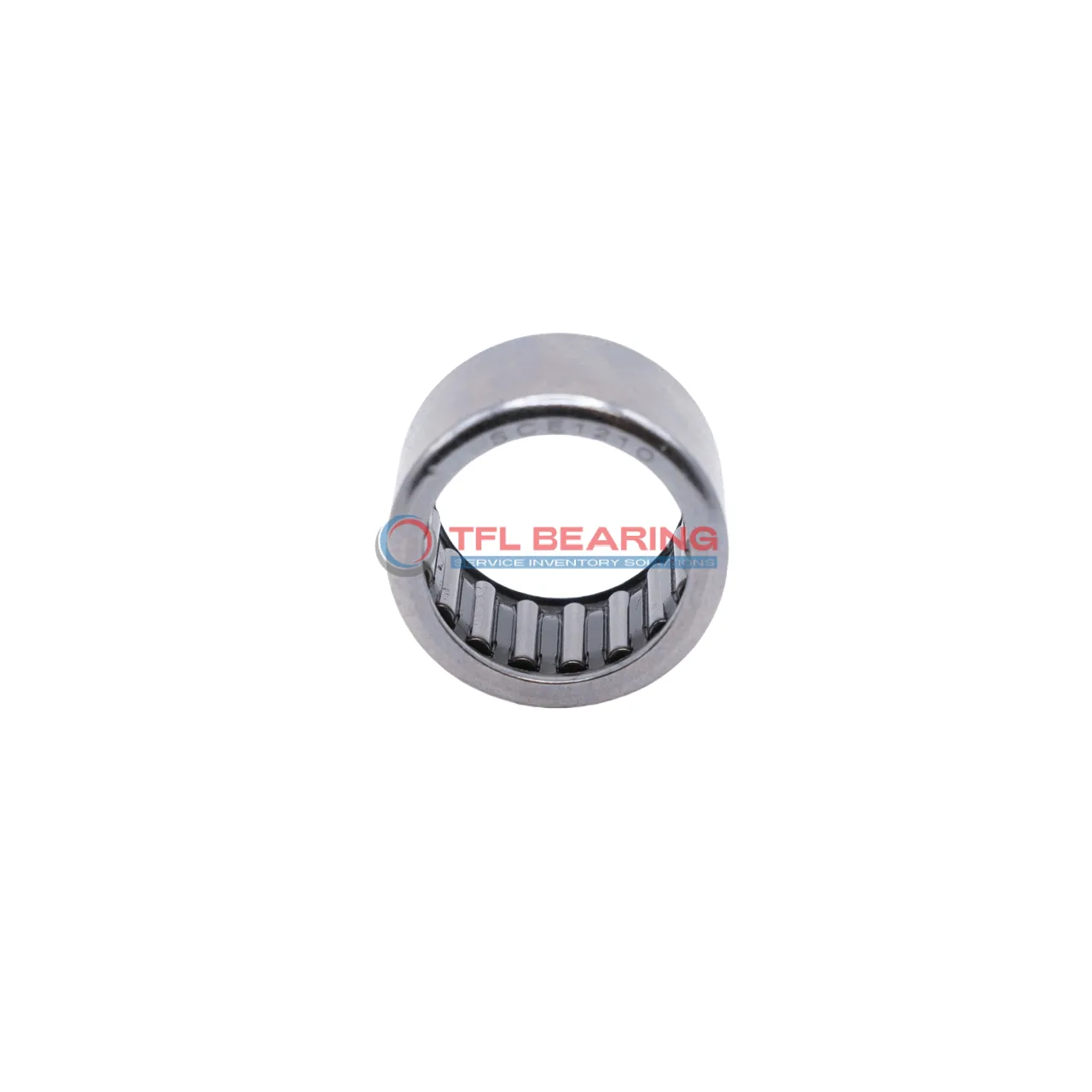

Drawn Cup Needle Roller Bearings SCE85

Drawn Cup Needle Roller Bearings SCE85

The SCE85 is a drawn cup needle roller bearing with a 0.5″ bore and 0.6875″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 821 lbf and spins efficiently at speeds up to 19500 RPM.
Its open-end design and press-fit mounting make it easy to install, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like automotive components or small machinery where space is limited.
Regular lubrication is recommended to maintain its performance. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE85
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.5"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.6875"
  • Outer Dia Tolerance Not Rated
  • Width 0.3125"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 821 lbf
  • Static Radial Load 888 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 19500 rpm
  • Weight 4 g
Drawn Cup Needle Roller Bearings SCE85 dimension drawing
Download DWG Download PDF

Features

Why Choose SCE85 Bearing for Precision Tasks?
SCE85 Bearing is crafted with steel rings and rollers, ensuring strong radial load capacity up to 821 lbf.
Its press-fit shaft mount design simplifies installation, making it ideal for precision applications.
The open-end construction allows for easy lubrication, maintaining smooth operation at high speeds.
With a maximum speed of 19,500 rpm, it delivers reliable performance in demanding conditions.
SCE85 Bearing operates efficiently within a temperature range of -20 to 110°C.
Its steel cage ensures durability, reducing maintenance needs over time.

Application

Industrial Uses of SCE85 Bearing
SCE85 Bearing is commonly used in industrial gearboxes, where its compact design helps save space while handling radial loads efficiently. The press-fit mounting ensures a secure installation in tight assemblies.
Where Is SCE85 Bearing Used?
You’ll find SCE85 Bearing in automotive transmissions, providing smooth operation under high-speed conditions. Its steel construction offers durability, making it a reliable choice for long-term use.
Built for Heavy-Duty Use: SCE85 Bearing
SCE85 Bearing works well in conveyor systems, where its needle rollers distribute loads evenly. The open design allows for easy lubrication, extending its service life in demanding environments.
Automotive vs Industrial: Applications of SCE85 Bearing
In automotive steering systems, SCE85 Bearing supports precise movement, while in industrial pumps, it handles radial loads with ease. Its inch sizing makes it versatile for various machinery.
Perfect Fit for Automation: SCE85 Bearing
SCE85 Bearing is ideal for robotic arms, where its high-speed capability ensures smooth motion. The steel cage adds strength, making it suitable for repetitive tasks.
