TS (Single Row Tapered Roller Bearings) (Imperial) 569-564

TS (Single Row Tapered Roller Bearings) (Imperial) 569-564

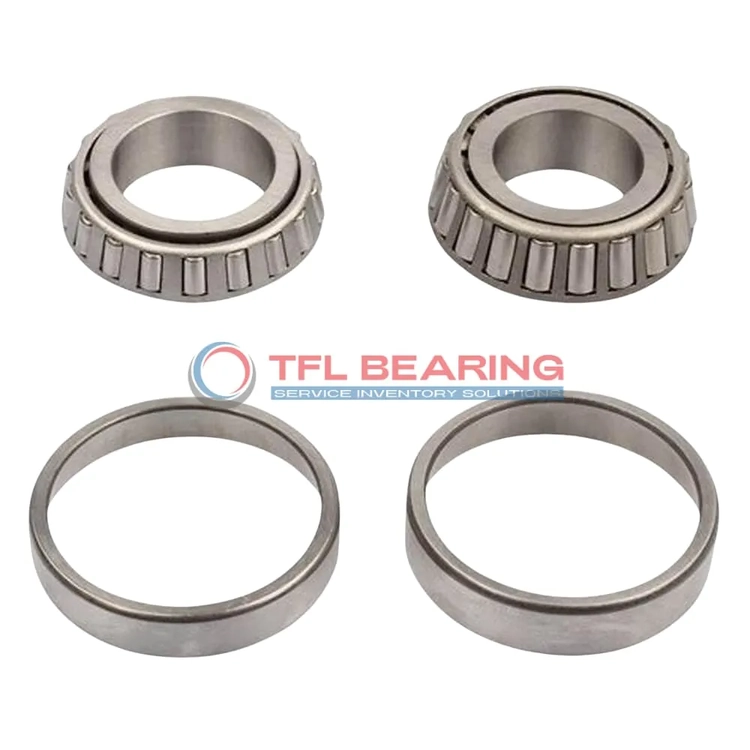

The 569-564 is a single-row tapered roller bearing with a 2.5576″ bore and 5.1875″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 5.7 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 569-564
  • Brand TFL
  • Interchangeable Timken
  • Size 2.5576" x 5.1875" x 1.7501"
  • Bore Dia 2.5576"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.1875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.7501"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.54"
  • Cone Backface Backing Diameter 3.19"
  • Cup Frontface Backing Diameter 4.80"
  • Cup Backface Backing Diameter 4.41"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 569
  • Cup Part Number 564
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.7 lb

Features

Performance Features of 569-564 Bearing

569-564 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44,100 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 569-564 Bearing Engineered for Reliability?

569-564 Bearing features a tapered roller design, optimised for handling both radial and thrust loads.
The chrome steel construction provides excellent wear resistance, extending its service life.
Its standard radial clearance ensures smooth operation, even under demanding conditions.
The open design simplifies lubrication, maintaining performance over time.

Designed for Durability: 569-564 Bearing

569-564 Bearing’s single-row construction ensures stability and precision in combined load scenarios.
The steel cage maintains roller spacing, minimising wear and improving efficiency.
With a static radial load capacity of 58,900 lbf, it excels in high-stress environments.
Its ABEC-1 rating guarantees consistent performance for industrial applications.

Steel vs Ceramic Bearings: Strengths of 569-564 Bearing

569-564 Bearing uses chrome steel for both rings and rollers, balancing strength and cost-effectiveness.
The material choice ensures reliable performance under heavy loads and high temperatures.
Its dynamic thrust rating of 7,130 lbf (Ca90) makes it versatile for various applications.
The standard radial clearance option allows for flexibility in different operating conditions.

Application

Industrial Uses of 569-564 Bearing
The 569-564 Bearing is widely used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 569-564 Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. The inch sizing makes it a convenient choice for vehicles using imperial measurements.

For industrial automation, 569-564 Bearing supports conveyor systems and robotic arms, where precision and load capacity are key. The open design allows for easy lubrication, extending its service life in high-use scenarios.

Where Is 569-564 Bearing Used?
You’ll often find 569-564 Bearing in mining equipment, where its robust design withstands harsh conditions. The tapered rollers distribute loads evenly, reducing wear over time.

In manufacturing plants, 569-564 Bearing is a go-to for gearboxes and pumps, thanks to its high dynamic radial load capacity. The steel cage adds extra strength, making it suitable for continuous operation.

Built for Heavy-Duty Use: 569-564 Bearing
569-564 Bearing excels in applications like railway axles, where combined loads and vibrations are common. Its ABEC-1 rating ensures consistent performance without unnecessary precision costs.

The bearing’s temperature range (-30° to 110°C) makes it versatile for outdoor and indoor machinery. Whether in forestry equipment or industrial fans, it delivers reliable service.

Automotive vs Aerospace: Applications of 569-564 Bearing
In automotive systems, 569-564 Bearing handles wheel and transmission loads with ease. Its imperial sizing simplifies integration into older or non-metric vehicle designs.

For aerospace ground support equipment, 569-564 Bearing offers a balance of strength and weight. While not for flight use, it’s ideal for maintenance trolleys and loading systems.
