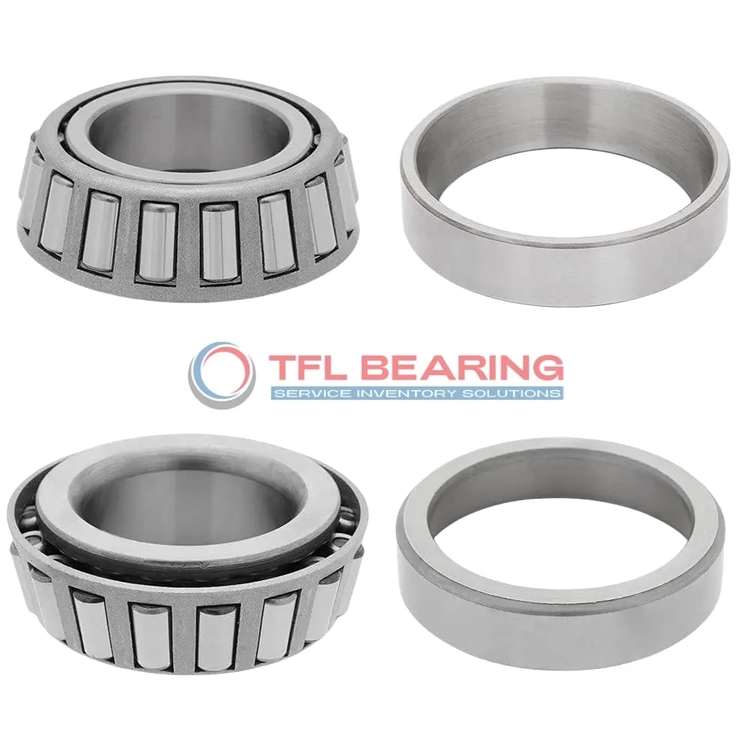

TS (Single Row Tapered Roller Bearings) (Imperial) 02474-02420

TS (Single Row Tapered Roller Bearings) (Imperial) 02474-02420

The 02474-02420 is a single-row tapered roller bearing with a 1.125″ bore and 2.6875″ outer diameter, made from sturdy chrome steel. It handles combined loads up to 14300 lbf radially and 2650 lbf thrust, suitable for tough conditions.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like automotive axles or industrial gearboxes where combined loads are common.

Weighing just 0.9 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for most mechanical setups. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 02474-02420
  • Brand TFL
  • Interchangeable Timken
  • Size 1.125" x 2.6875" x 0.875"
  • Bore Dia 1.125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.6875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.875"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.42"
  • Cone Backface Backing Diameter 1.44"
  • Cup Frontface Backing Diameter 2.52"
  • Cup Backface Backing Diameter 2.32"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.2"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2474
  • Cup Part Number 2420
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2400
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 14300 lbf
  • Static Radial Load 15800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3720 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2650 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.9 lb

Features

Performance Features of 02474-02420 Bearing

02474-02420 Bearing is crafted from chrome steel, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 14,300 lbf, making it suitable for heavy-duty applications.
The tapered roller design ensures smooth operation and efficient load distribution.
With a standard radial clearance, it provides reliable performance in various conditions.

How Does 02474-02420 Bearing Reduce Friction?

02474-02420 Bearing’s tapered roller design minimises friction, enhancing efficiency and longevity.
The chrome steel rollers and rings work together to reduce wear during operation.
Its effective centre location of -0.2″ ensures optimal alignment for smooth performance.
Regular lubrication further helps in maintaining low friction levels.

Built for Reliability: 02474-02420 Bearing

02474-02420 Bearing is designed to withstand temperatures from -30° to 110°C, ensuring consistent performance.
The steel cage keeps the rollers in place, reducing wear and extending service life.
With a static radial load capacity of 15,800 lbf, it handles demanding applications with ease.
Its ABEC-1 rating guarantees precision and reliability in operation.

Application

Industrial Uses of 02474-02420 Bearing
02474-02420 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

In automotive applications, 02474-02420 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a straightforward replacement for many US-made vehicles.

For industrial conveyor systems, 02474-02420 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear over time.

What Makes 02474-02420 Bearing a Preferred Choice?
02474-02420 Bearing is often chosen for agricultural machinery due to its ability to withstand dirt and debris. The standard radial clearance offers flexibility in different operating conditions.

In mining equipment, 02474-02420 Bearing’s robust design handles high radial and thrust loads without compromising performance. The ABEC-1 rating ensures consistent precision for most industrial needs.

Built for Heavy-Duty Use: 02474-02420 Bearing
02474-02420 Bearing excels in forestry machinery, where its tapered rollers manage uneven loads smoothly. The chrome steel rollers resist deformation under heavy stress.

For railway applications, 02474-02420 Bearing provides reliable support in axle boxes, ensuring smooth operation over long distances. The steel cage maintains alignment, even under constant vibration.

Automotive vs Aerospace: Applications of 02474-02420 Bearing
In automotive drivetrains, 02474-02420 Bearing offers a balance of strength and precision, suitable for high-torque environments. Its compatibility with Timken models simplifies maintenance.

For aerospace ground equipment, 02474-02420 Bearing’s temperature range makes it adaptable to various climates. The inch measurements align with many US-based maintenance standards.
