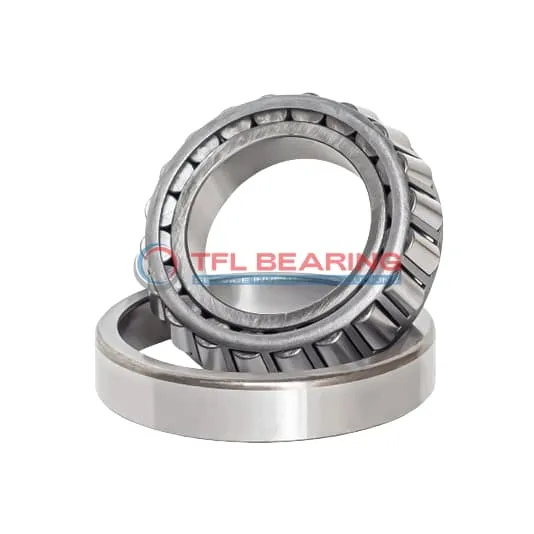

TS (Single Row Tapered Roller Bearings) (Imperial) 567X-563X

TS (Single Row Tapered Roller Bearings) (Imperial) 567X-563X

The 567X-563X is a single-row tapered roller bearing with a 2.875″ bore and 5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust, making it versatile for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability even at high speeds. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like truck axles or industrial gearboxes where combined loads are common.

Weighing 4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

The standard radial clearance can be adjusted to C3, C4, or C5 for specific needs. Its tapered roller design ensures even load distribution, extending service life.

Perfect for machinery requiring precise alignment and long-lasting performance. The ABEC-1 rating balances precision and affordability for most industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 567X-563X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.875" x 5" x 1.4375"
  • Bore Dia 2.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.190"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 3.87"
  • Cone Backface Backing Diameter 3.54"
  • Cup Frontface Backing Diameter 4.75"
  • Cup Backface Backing Diameter 4.49"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 567X
  • Cup Part Number 563X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4 lb

Features

How Is 567X-563X Bearing Engineered for Reliability?

567X-563X Bearing features chrome steel rings and rollers, ensuring durability under combined loads.
Its dynamic radial load capacity reaches 44,100 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Structural Advantages of 567X-563X Bearing

567X-563X Bearing’s single-row tapered design provides efficient load distribution and stability.
The precise cone and cup width tolerances ensure smooth operation and easy installation.
Its standard radial clearance options (C3/C4/C5) offer flexibility for different applications.
The open seal type allows for easy lubrication, enhancing maintenance convenience.

Why Choose 567X-563X Bearing for Precision Tasks?

567X-563X Bearing’s ABEC-1 rating ensures consistent performance in precision applications.
The chrome steel construction resists wear, maintaining accuracy over extended periods.
With a dynamic thrust rating of 7,130 lbf, it handles both radial and axial loads effectively.
Its effective center location design improves alignment, reducing operational stress.

Application

Industrial Uses of 567X-563X Bearing
The 567X-563X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in tough working conditions.

In automotive applications, 567X-563X Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The inch sizing makes it a preferred choice for American and British vehicle models.

For industrial conveyor systems, 567X-563X Bearing’s open design allows easy lubrication, extending service life in high-load scenarios. The steel cage adds extra strength, making it suitable for continuous operation.

Where Is 567X-563X Bearing Used?
You’ll often find 567X-563X Bearing in mining equipment, where its ability to handle radial and thrust loads is crucial. The standard radial clearance ensures smooth operation even under heavy stress.

In power transmission systems, 567X-563X Bearing supports shafts and gears, thanks to its robust design. The ABEC-1 rating balances precision and cost-effectiveness for general industrial use.

Built for Heavy-Duty Use: 567X-563X Bearing
The 567X-563X Bearing excels in forestry machinery, where its tapered rollers manage uneven loads effortlessly. Its temperature range of -30° to 110°C ensures reliability in diverse environments.

For railway applications, 567X-563X Bearing’s static radial load capacity of 58,900 lbf makes it ideal for axle boxes. The steel cage and chrome steel rollers provide long-lasting performance.

Automotive vs Aerospace: Applications of 567X-563X Bearing
In automotive settings, 567X-563X Bearing is trusted for drivetrain components due to its combined load capacity. The inch measurements simplify replacements in older machinery.

For aerospace ground equipment, 567X-563X Bearing’s dynamic thrust rating of 7,130 lbf suits loading platforms and maintenance tools. Its compliance with RoHS and REACH standards adds environmental safety.
