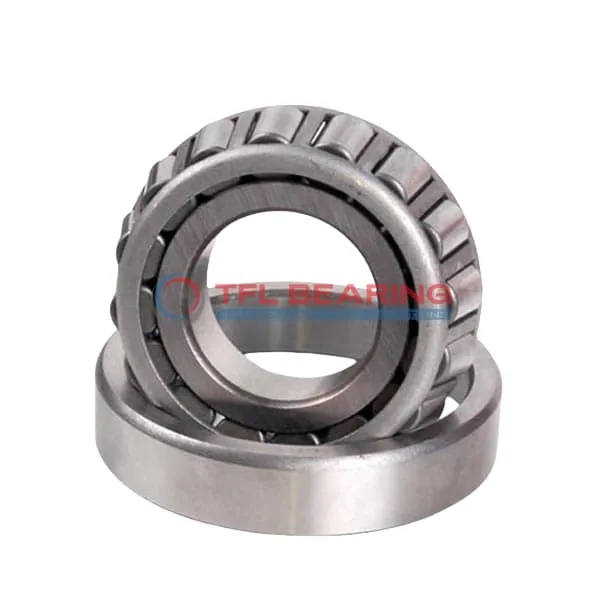

TS (Single Row Tapered Roller Bearings) (Imperial) 566-562X

TS (Single Row Tapered Roller Bearings) (Imperial) 566-562X

The 566-562X is a single-row tapered roller bearing with a 2.75″ bore and 5.1181″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 44100 lbf radially and 7130 lbf thrust-wise, making it versatile for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like truck axles or industrial gearboxes where combined loads are common.

Weighing 4.5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 566-562X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.75" x 5.1181" x 1.4543"
  • Bore Dia 2.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.1181"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.424"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.1417"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4543"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.12"
  • Cone Frontface Backing Diameter 3.74"
  • Cone Backface Backing Diameter 3.35"
  • Cup Frontface Backing Diameter 4.80"
  • Cup Backface Backing Diameter 4.49"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location -0.32"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 566
  • Cup Part Number 562X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7130 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.5 lb

Features

Performance Features of 566-562X Bearing

566-562X Bearing is constructed with chrome steel rings and rollers, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 44,100 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures efficient load distribution, reducing stress on individual components.
With a standard radial clearance, it provides reliable operation in various industrial settings.

566-562X Bearing operates within a temperature range of -30° to 110°C, adapting to diverse working conditions.
The steel cage maintains roller alignment, enhancing durability and extending service life.

Designed for easy lubrication, 566-562X Bearing simplifies maintenance and reduces downtime.
Its ABEC-1 rating ensures consistent precision for general industrial use.

Application

Industrial Uses of 566-562X Bearing
The 566-562X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 566-562X Bearing Used?
You’ll often find 566-562X Bearing in automotive applications, particularly in wheel hubs and drivetrains, where its high load capacity supports smooth performance. The inch sizing makes it a fit for many North American vehicle models.

Built for Heavy-Duty Use: 566-562X Bearing
566-562X Bearing excels in industrial fans and pumps, thanks to its robust steel cage and standard radial clearance. Its open design simplifies lubrication, extending service life in high-temperature settings.

Automotive vs Aerospace: Applications of 566-562X Bearing
In automotive systems, 566-562X Bearing handles wheel and transmission loads, while in aerospace, it’s suited for auxiliary gearboxes. The ABEC-1 rating ensures reliable precision for both sectors.

Essential Roles of 566-562X Bearing
566-562X Bearing is a go-to for conveyor systems in mining, where its dynamic radial load capacity keeps operations running smoothly. The tapered rollers distribute stress evenly, reducing wear over time.
