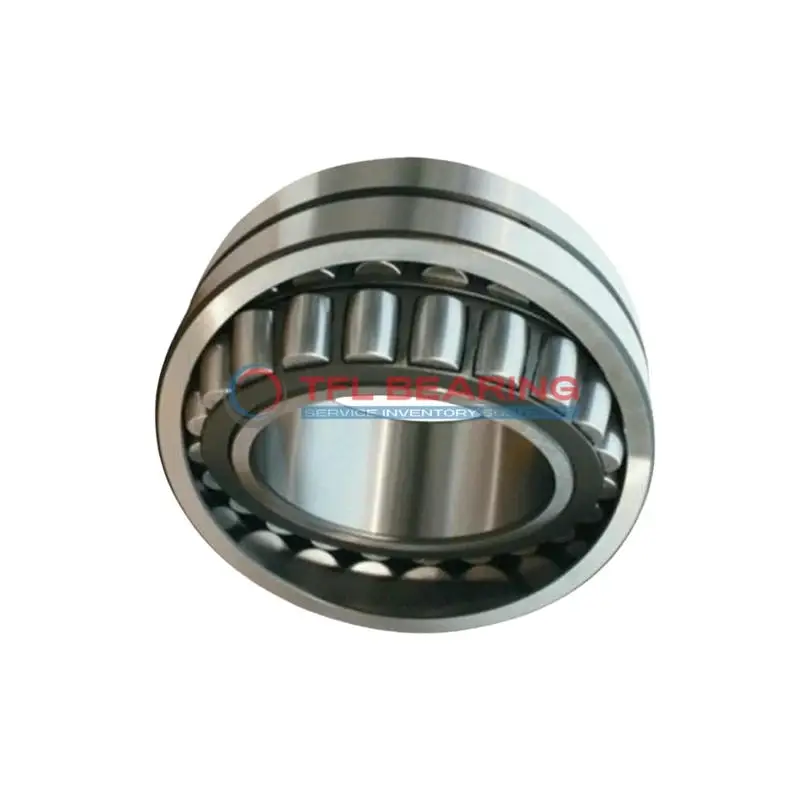

23184 CKJ/C3W33 Double Row Spherical Roller Bearing

23184 CKJ/C3W33 Double Row Spherical Roller Bearing

The 23184 CKJ/C3W33 is a double-row spherical roller bearing with a 420mm bore and 700mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 1,330,644 lbf and runs smoothly at speeds up to 900 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The bearing requires lubrication and operates in temperatures from -30°C to 200°C.

With a tapered bore (1:12 ratio), it fits securely on shafts, and the C3 radial clearance offers flexibility under heavy loads. Ideal for industrial machinery like crushers or large gearboxes where high radial loads are common.

Weighing 345kg, it’s a robust choice for heavy-duty applications. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23184 CKJ/C3W33
  • Brand TFL
  • Interchangeable SKF
  • Size 420 x 700 x 224 mm
  • Bore Dia 420 mm
  • Bore Dia Tolerance +0.063mm to 0
  • Outer Dia 700 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 224 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 483 mm
  • Shoulder/Recess Dia Of Outer Ring 607 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.6 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 1330644 lbf
  • Static Radial Load 2090723 lbf
  • Max Speed 900 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 345 kg
  • Price （US$） US$8,516.24

Features

How Does 23184 CKJ/C3W33 Bearing Handle Heavy Loads?

23184 CKJ/C3W33 Bearing features a double-row spherical roller design, optimised for handling combined radial and thrust loads.
Its chrome steel construction ensures high strength, with a dynamic radial load capacity of 1,330,644 lbf.

The tapered bore design enhances stability, making it suitable for heavy-duty applications.
With a maximum speed of 900 rpm, it delivers reliable performance under demanding conditions.

Why Choose 23184 CKJ/C3W33 Bearing for Precision Tasks?

23184 CKJ/C3W33 Bearing is engineered with precise radial run-out standards, ensuring accurate operation.
The spherical roller design compensates for misalignment, maintaining performance in complex setups.

Its C3 radial clearance allows for thermal expansion, ideal for high-temperature environments.
The lubrication groove and holes ensure consistent performance, reducing maintenance needs.

Built for Reliability: 23184 CKJ/C3W33 Bearing

23184 CKJ/C3W33 Bearing’s chrome steel rollers and rings provide exceptional durability.
Its static radial load capacity of 2,090,723 lbf ensures long-term reliability in heavy applications.

The steel cage maintains roller alignment, minimising wear and extending service life.
Designed for temperatures from -30° to 200°C, it performs reliably in varied conditions.

Steel vs Ceramic Bearings: Strengths of 23184 CKJ/C3W33 Bearing

23184 CKJ/C3W33 Bearing’s chrome steel construction offers superior load capacity and durability.
The material resists wear and fatigue, making it ideal for heavy industrial use.

Its spherical rollers accommodate misalignment, reducing stress on adjacent components.
The open design allows for easy lubrication, ensuring smooth operation over time.

Engineered for Precision: 23184 CKJ/C3W33 Bearing

23184 CKJ/C3W33 Bearing’s tapered bore ensures secure fitting, enhancing operational precision.
The double-row design distributes loads evenly, improving stability and performance.

Its lubrication system maintains optimal performance, even at high speeds.
With a weight of 345 kg, it is built for robust applications requiring precision and strength.

Application

Industrial Uses of 23184 CKJ/C3W33 Bearing
23184 CKJ/C3W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The tapered bore ensures a secure fit, reducing slippage in high-vibration environments.

Where Is 23184 CKJ/C3W33 Bearing Used?
In mining equipment, 23184 CKJ/C3W33 Bearing supports large rotating components, thanks to its high dynamic load capacity. The steel cage and chrome steel rollers provide durability in harsh, abrasive conditions.

Built for Heavy-Duty Use: 23184 CKJ/C3W33 Bearing
This bearing excels in wind turbine gearboxes, where its C3 radial clearance accommodates thermal expansion. The lubrication groove design simplifies maintenance, extending service life in remote installations.

Automotive vs Aerospace: Applications of 23184 CKJ/C3W33 Bearing
While too large for most vehicles, 23184 CKJ/C3W33 Bearing fits industrial trucks and construction equipment. Its temperature range (-30° to 200°C) suits demanding environments, from Arctic sites to steel mills.

Key Fields for 23184 CKJ/C3W33 Bearing
Paper mills rely on 23184 CKJ/C3W33 Bearing for roller presses, where its spherical rollers compensate for shaft deflection. The open seal design allows for custom lubrication to match production demands.
