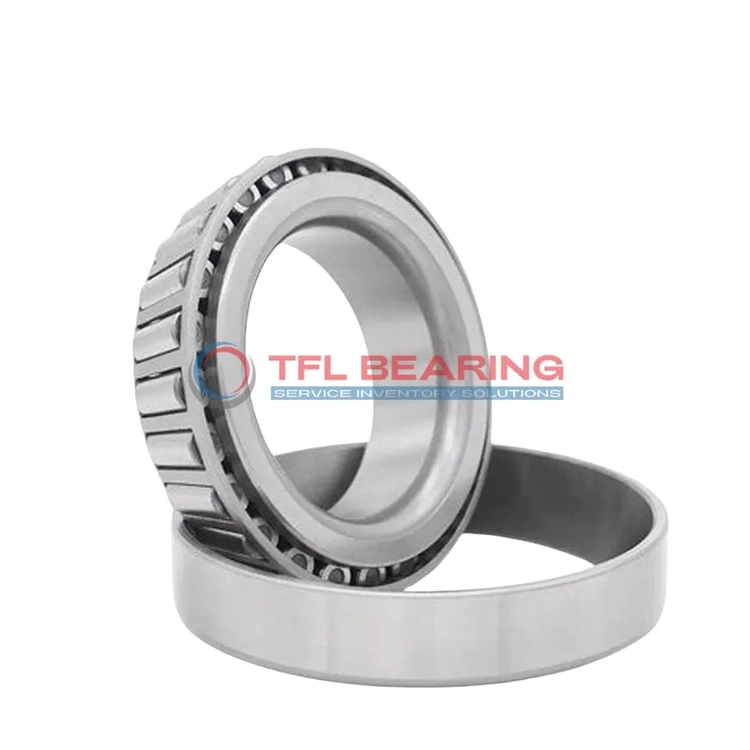

TS (Single Row Tapered Roller Bearings) (Imperial) 5566-5535

TS (Single Row Tapered Roller Bearings) (Imperial) 5566-5535

The 5566-5535 is a single-row tapered roller bearing with a 2.1875″ bore and 4.8125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 53200 lbf radially and 8460 lbf thrust, making it versatile for heavy-duty use.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive applications where combined loads are common.

Weighing 5.6 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 5566-5535
  • Brand TFL
  • Interchangeable Timken
  • Size 2.1875" x 4.8125" x 1.7188"
  • Bore Dia 2.1875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.8125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.723"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.4375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.7188"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.050"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.68"
  • Cone Backface Backing Diameter 2.76"
  • Cup Frontface Backing Diameter 4.60"
  • Cup Backface Backing Diameter 4.17"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 5566
  • Cup Part Number 5535
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 5500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 53200 lbf
  • Static Radial Load 73500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 13800 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8460 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.6 lb

Features

Performance Features of 5566-5535 Bearing

5566-5535 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 53,200 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Does 5566-5535 Bearing Resist Wear?

5566-5535 Bearing’s chrome steel construction provides excellent wear resistance, even under high stress.
The tapered roller design distributes loads evenly, minimising friction and prolonging service life.
Its standard radial clearance options allow for flexibility in different operating conditions.
Regular lubrication ensures smooth operation and further reduces wear over time.

Engineered for Precision: 5566-5535 Bearing

5566-5535 Bearing features precise dimensions, with bore and outer diameter tolerances tightly controlled.
The effective center location of -0.48″ ensures accurate alignment in assembly.
Its ABEC-1 rating confirms consistent performance for general precision applications.
The single-row construction simplifies installation while maintaining reliability.

Application

Industrial Uses of 5566-5535 Bearing
The 5566-5535 Bearing is widely used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively.
Its chrome steel construction ensures durability even in demanding environments, making it a reliable choice for long-term use.

Where Is 5566-5535 Bearing Used?
You’ll often find the 5566-5535 Bearing in automotive applications like truck wheel hubs, where its high load capacity supports smooth operation.
The inch sizing makes it compatible with many North American industrial and automotive standards.

Built for Heavy-Duty Use: 5566-5535 Bearing
In agricultural machinery, the 5566-5535 Bearing excels in gearboxes and drivetrains, thanks to its robust steel cage and tapered roller design.
The standard radial clearance allows for easy integration into various equipment without extensive modifications.

Automotive vs Aerospace: Applications of 5566-5535 Bearing
While the 5566-5535 Bearing is common in truck suspensions, its precision also suits aerospace landing gear components.
The ABEC-1 rating ensures consistent performance in both high-speed and high-load scenarios.

Key Fields for 5566-5535 Bearing
The 5566-5535 Bearing is a go-to for industrial fans and pumps, where its dynamic radial load capacity keeps systems running smoothly.
Its temperature range of -30° to 110°C makes it versatile for both indoor and outdoor applications.
