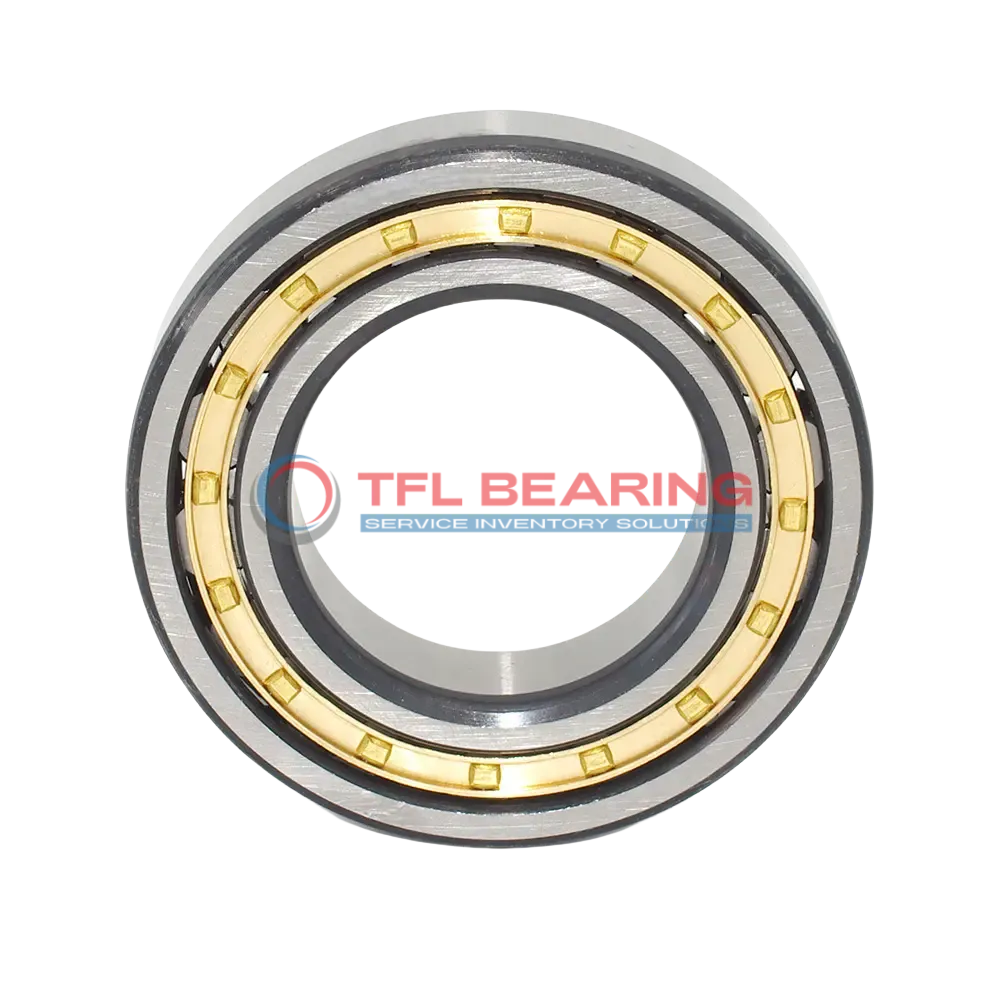

Single Row Cylindrical Roller Bearings With Inner Ring NJ 1876 ECMP

Single Row Cylindrical Roller Bearings With Inner Ring NJ 1876 ECMP

The NJ 1876 ECMP is a single row cylindrical roller bearing with a 380mm bore and 480mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 126225 lbf and operates smoothly at speeds up to 2000 RPM.

Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures stable performance. The bearing works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a reliable choice for replacements. Ideal for heavy-duty applications like industrial machinery or large gearboxes where combined loads are common.

Weighing 21kg, it’s built for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NJ 1876 ECMP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 380 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 480 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 46 mm
  • Width Tolerance -0.40mm to 0
  • Shoulder Dia Of Inner Ring 415 mm
  • Chamfer Dimension r1,2(min.) 2.1 mm
  • Permissible Axial Displacement(max.) 1.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 126225 lbf
  • Static Radial Load 252000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2000 rpm
  • Weight 21 kg
  • Shoulder Dia Of Outer Ring 449 mm
  • Raceway Diameter Of Inner Ring 406 mm
Single Row Cylindrical Roller Bearings With Inner Ring NJ 1876 ECMP dimension drawing
Download DWG Download PDF

Features

Performance Features of NJ 1876 ECMP Bearing

NJ 1876 ECMP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 126225 lbf, ensuring reliable performance in heavy-duty applications.
The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 2000 rpm, it balances durability and efficiency in demanding conditions.

Application

Industrial Uses of NJ 1876 ECMP Bearing
NJ 1876 ECMP Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its high radial load capacity ensures reliable performance. The chrome steel construction and PA66 cage make it suitable for demanding environments.

Where Is NJ 1876 ECMP Bearing Used?
You’ll often find NJ 1876 ECMP Bearing in wind turbines and mining equipment, thanks to its ability to handle combined loads and high speeds. Its open design allows for easy lubrication, extending service life in tough conditions.

Built for Heavy-Duty Use: NJ 1876 ECMP Bearing
NJ 1876 ECMP Bearing excels in applications like steel mills and paper processing machines, where its robust design withstands extreme loads. The precise tolerances ensure smooth operation even under intense stress.

Automotive vs Aerospace: Applications of NJ 1876 ECMP Bearing
In automotive settings, NJ 1876 ECMP Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary systems requiring high reliability. Its metric sizing fits seamlessly into both industries.

Perfect Fit for Automation: NJ 1876 ECMP Bearing
NJ 1876 ECMP Bearing is ideal for automated production lines and robotics, where its low friction and high-speed capabilities enhance efficiency. The grease or oil lubrication options provide flexibility for different operational needs.
