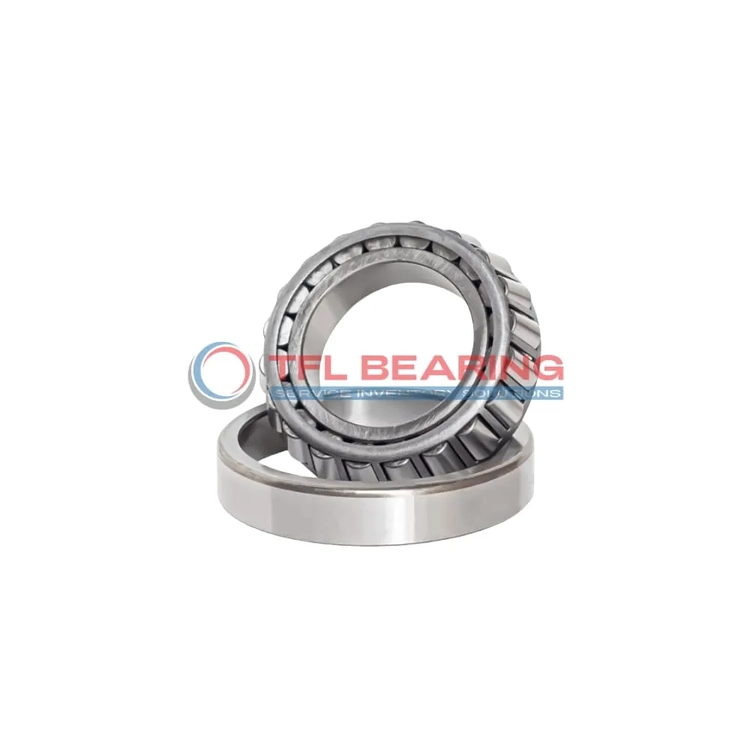

TS (Single Row Tapered Roller Bearings) (Imperial) 536-533X

TS (Single Row Tapered Roller Bearings) (Imperial) 536-533X

The 536-533X is a single-row tapered roller bearing with a 1.875″ bore and 4.3307″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 38700 lbf radially and 5090 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are common.

Weighing 3.8 lb, it offers a robust build for its size. Compliant with RoHS and REACH standards, it’s a reliable and safe option for various industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 536-533X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.875" x 4.3307" x 1.5001"
  • Bore Dia 1.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.3307"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.455"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.1875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.5001"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.2"
  • Cone Backface Backing Diameter 2.44"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.74"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location -0.48"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 536
  • Cup Part Number 533X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 535
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 38700 lbf
  • Static Radial Load 46200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 10000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5090 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.8 lb

Features

Performance Features of 536-533X Bearing

536-533X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 38,700 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Is 536-533X Bearing Engineered for Reliability?

536-533X Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction provides excellent strength and wear resistance.
Its standard radial clearance ensures smooth operation in most industrial applications.
With ABEC-1 precision, it balances performance and cost-effectiveness.

Designed for Durability: 536-533X Bearing

536-533X Bearing’s tapered roller design efficiently distributes loads for extended service life.
The steel cage maintains roller positioning, reducing friction and heat generation.
Its static radial load capacity of 46,200 lbf demonstrates robust construction.
The bearing operates reliably within a wide temperature range for versatile use.

Steel vs Ceramic Bearings: Strengths of 536-533X Bearing

536-533X Bearing uses chrome steel for both rings and rollers, providing excellent durability.
This material choice offers good cost-performance balance for industrial applications.
The bearing’s dynamic thrust rating of 5,090 lbf ensures reliable performance under load.
Its standard lubrication requirement simplifies maintenance procedures.

Application

Industrial Uses of 536-533X Bearing
The 536-533X Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in demanding environments.

In automotive applications, 536-533X Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. The imperial sizing makes it compatible with many North American vehicle models.

For industrial conveyor systems, 536-533X Bearing’s open design allows for easy lubrication, extending service life in high-load scenarios. The steel cage adds extra strength, making it suitable for continuous operation.

Where Is 536-533X Bearing Used?
You’ll often find 536-533X Bearing in agricultural machinery, where its robust design handles rough conditions. The tapered rollers distribute loads evenly, reducing wear over time.

In mining equipment, 536-533X Bearing’s high dynamic radial load capacity makes it ideal for crushers and screens. Its standard radial clearance ensures smooth operation even under heavy stress.

Built for Heavy-Duty Use: 536-533X Bearing
The 536-533X Bearing excels in forestry equipment, where its combined load capability handles unpredictable forces. The chrome steel rollers resist deformation under pressure.

For railway applications, 536-533X Bearing’s temperature range suits both cold and moderate climates. Its ABEC-1 rating balances precision and cost-effectiveness for freight cars.

Automotive vs Aerospace: Applications of 536-533X Bearing
In automotive drivetrains, 536-533X Bearing supports high torque loads, while its weight is manageable for ground vehicles. The imperial sizing simplifies replacements in older models.

For aerospace ground equipment, 536-533X Bearing’s reliability suits baggage handlers and tow tractors. Its standard lubrication needs fit routine maintenance schedules.
