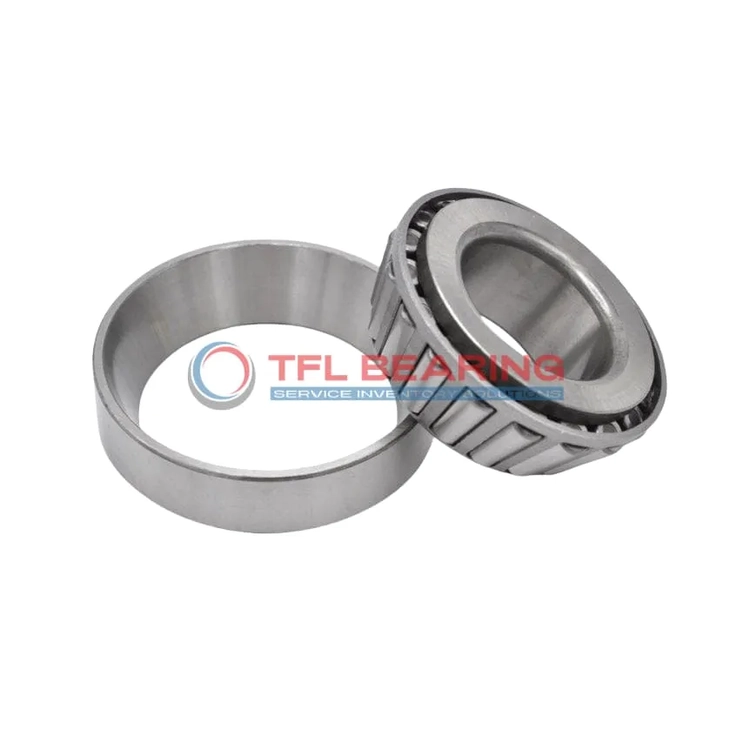

TS (Single Row Tapered Roller Bearings) (Imperial) 529X-V523

TS (Single Row Tapered Roller Bearings) (Imperial) 529X-V523

The 529X-V523 is a single-row tapered roller bearing with a 2″ bore and 3.938″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 37,000 lbf radially and 4,690 lbf thrust, making it a versatile choice.

Its open design requires lubrication but allows easy maintenance, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, ideal for replacements in heavy-duty applications. Suitable for gearboxes, axles, or industrial machinery where combined loads are common.

Weighing 2.7 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 529X-V523
  • Brand TFL
  • Interchangeable Timken
  • Size 2" x 3.938" x 1.4107"
  • Bore Dia 2"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.938"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.42"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0995"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4107"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.070"
  • Cone Frontface Backing Diameter 2.28"
  • Cone Backface Backing Diameter 2.56"
  • Cup Frontface Backing Diameter 3.74"
  • Cup Backface Backing Diameter 3.50"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.09"
  • Effective Center Location -0.5"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 529X
  • Cup Part Number V523
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 525
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 37000 lbf
  • Static Radial Load 43000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 4690 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.700 lb

Features

How Does 529X-V523 Bearing Handle Combined Loads?

529X-V523 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 37000 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

What Makes 529X-V523 Bearing Durable?

529X-V523 Bearing features chrome steel construction, providing excellent wear resistance and longevity.
The tapered roller design distributes loads evenly, enhancing durability under heavy use.
Its standard radial clearance allows for smooth operation, reducing maintenance needs.
This bearing is suitable for applications requiring consistent performance over time.

Engineered for Precision: 529X-V523 Bearing

529X-V523 Bearing’s single row tapered roller design ensures precise load handling and alignment.
The chrome steel rollers and rings work together to minimise friction and noise.
With an ABEC-1 rating, it meets high standards for precision and reliability.
Its effective centre location of -0.5″ enhances stability in various mounting configurations.

Steel vs Ceramic Bearings: Strengths of 529X-V523 Bearing

529X-V523 Bearing uses chrome steel for both rollers and rings, offering a balance of strength and cost-effectiveness.
This material choice provides excellent load capacity while maintaining good heat resistance.
The steel cage ensures proper roller spacing, contributing to smooth operation.
With a static radial load of 43000 lbf, it handles demanding applications with ease.

Application

Industrial Uses of 529X-V523 Bearing
The 529X-V523 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability in demanding environments.

Where Is 529X-V523 Bearing Used?
You’ll often find 529X-V523 Bearing in agricultural machinery, such as tractors and harvesters, where it supports high radial and thrust loads. The open design allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 529X-V523 Bearing
In mining applications, 529X-V523 Bearing excels in conveyor systems, thanks to its robust steel cage and high dynamic load capacity. It’s also a reliable choice for gearboxes in industrial settings.

Automotive vs Aerospace: Applications of 529X-V523 Bearing
In automotive systems, 529X-V523 Bearing is ideal for wheel hubs and differentials, offering smooth performance. For aerospace, its precision makes it suitable for auxiliary equipment.

Perfect Fit for Automation: 529X-V523 Bearing
The 529X-V523 Bearing works well in robotic arms, providing stability and load support. Its standard radial clearance ensures consistent performance in automated production lines.
