TS (Single Row Tapered Roller Bearings) (Imperial) 52387W-52630X

TS (Single Row Tapered Roller Bearings) (Imperial) 52387W-52630X

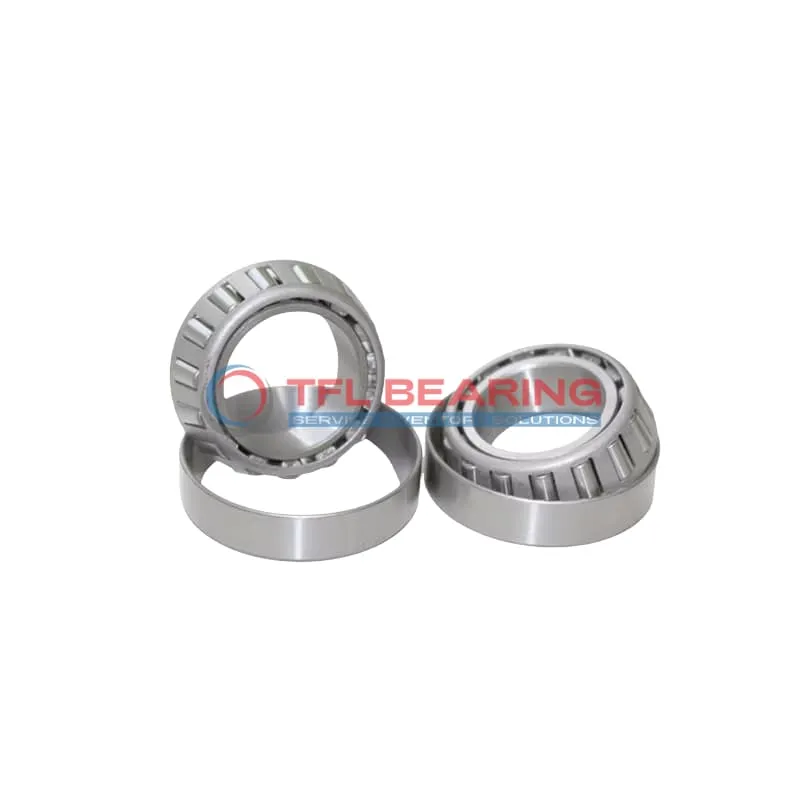

The 52387W-52630X is a single-row tapered roller bearing with a 3.875″ bore and 6.2992″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 50200 lbf radially and 10600 lbf thrust, making it robust for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for applications like vehicle axles or heavy machinery where combined loads are common.

Weighing 5.9 lb, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 52387W-52630X
  • Brand TFL
  • Interchangeable Timken
  • Size 3.875" x 6.2992" x 1.4375"
  • Bore Dia 3.875"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6.2992"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.4219"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0313"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.4375"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.12"
  • Cone Frontface Backing Diameter 4.94"
  • Cone Backface Backing Diameter 4.49"
  • Cup Frontface Backing Diameter 6.03"
  • Cup Backface Backing Diameter 5.67"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.16"
  • Effective Center Location -0.02"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 52387W
  • Cup Part Number 52630X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 52000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 50200 lbf
  • Static Radial Load 77000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 13000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 10600 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.9 lb

Features

Performance Features of 52387W-52630X Bearing

52387W-52630X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 50,200 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

52387W-52630X Bearing’s standard radial clearance allows for smooth operation and easy installation.
Its ABEC-1 rating ensures consistent precision for industrial applications.

Application

Industrial Uses of 52387W-52630X Bearing
52387W-52630X Bearing is commonly used in heavy machinery like construction equipment and mining drills, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 52387W-52630X Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under high radial and thrust loads. Its inch sizing makes it compatible with many North American vehicle models.

For industrial conveyor systems, 52387W-52630X Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, reducing wear during prolonged use.

What Makes 52387W-52630X Bearing a Preferred Choice?
52387W-52630X Bearing is ideal for agricultural machinery, such as tractors and harvesters, where its robust design withstands uneven loads. The standard radial clearance offers flexibility for various operating conditions.

In power transmission systems, 52387W-52630X Bearing supports gearboxes and driveshafts, ensuring smooth rotation under heavy loads. Its ABEC-1 rating provides sufficient precision for most industrial applications.

Built for Heavy-Duty Use: 52387W-52630X Bearing
52387W-52630X Bearing excels in railway applications, particularly in axle boxes where its tapered rollers manage both radial and axial forces. The chrome steel rollers resist wear, even under constant vibration.

For marine equipment, 52387W-52630X Bearing’s corrosion-resistant materials make it suitable for pumps and winches. The wide temperature range ensures performance in varying climates.
