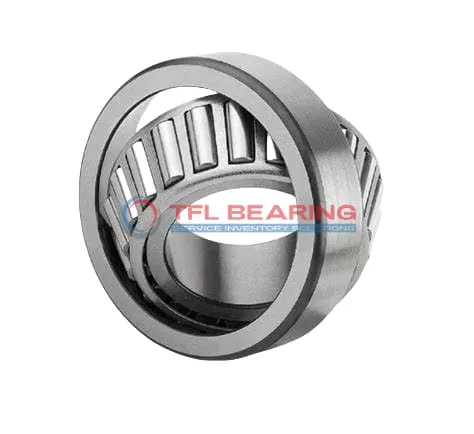

TS (Single Row Tapered Roller Bearings) (Imperial) 462-452

TS (Single Row Tapered Roller Bearings) (Imperial) 462-452

The 462-452 is a single-row tapered roller bearing with a 2.25″ bore and 4.25″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 36100 lbf radially and 5380 lbf thrust, making it a versatile choice.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various conditions.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for applications like heavy machinery or automotive systems where combined loads are common.

Weighing 2.7 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 462-452
  • Brand TFL
  • Interchangeable Timken
  • Size 2.25" x 4.25" x 1.2818"
  • Bore Dia 2.25"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1542"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.063"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2818"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.48"
  • Cone Backface Backing Diameter 2.64"
  • Cup Frontface Backing Diameter 3.96"
  • Cup Backface Backing Diameter 3.90"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.28"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 462
  • Cup Part Number 452
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 455
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 36100 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9370 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5380 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.700 lb

Features

How Is 462-452 Bearing Engineered for Reliability?

462-452 Bearing is constructed with chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 36,100 lbf, making it suitable for heavy-duty applications.

The tapered roller design provides effective load distribution, reducing stress on individual components.
With a standard radial clearance, it offers reliable performance in various operating conditions.

462-452 Bearing operates within a temperature range of -30° to 110°C, adapting to different environments.
The steel cage maintains roller alignment, enhancing stability and extending service life.

Application

Industrial Uses of 462-452 Bearing
The 462-452 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 462-452 Bearing Used?
You’ll often find the 462-452 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for older or imperial-based vehicle models.

Built for Heavy-Duty Use: 462-452 Bearing
In industrial fans and pumps, the 462-452 Bearing provides stable performance under high radial and thrust loads. The steel cage adds extra strength, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of 462-452 Bearing
While the 462-452 Bearing excels in automotive systems like axles, it’s also found in aerospace ground support equipment. Its ABEC-1 rating ensures consistent performance without over-engineering for less critical tasks.

Perfect Fit for Automation: 462-452 Bearing
The 462-452 Bearing works well in conveyor systems and material handling equipment, where its tapered rollers reduce friction. Its standard radial clearance offers a balance of precision and ease of installation.
