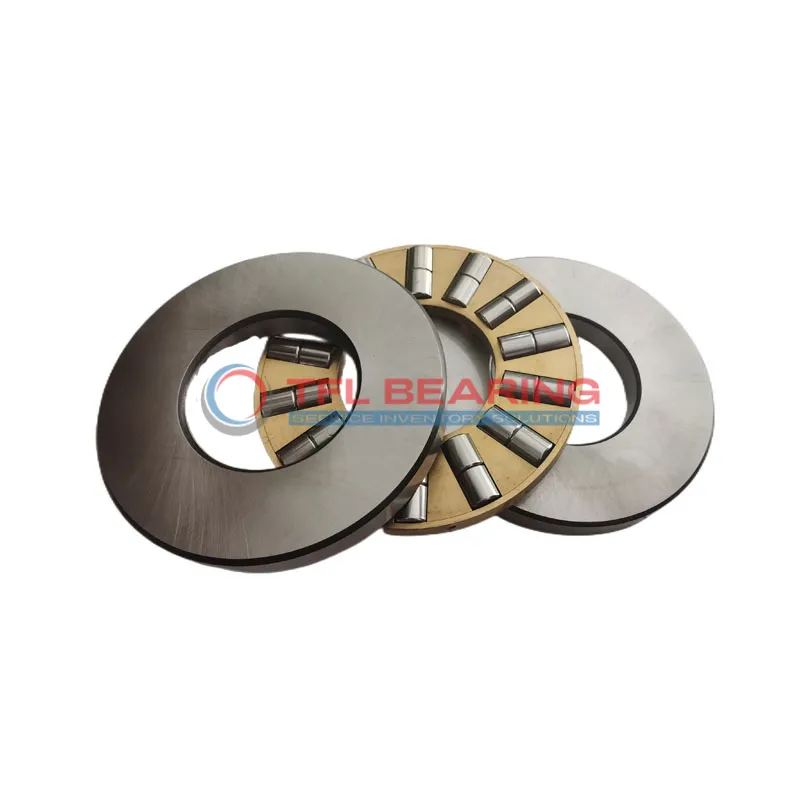

Double Row Cylindrical Roller Thrust Bearings 89452 M

Double Row Cylindrical Roller Thrust Bearings 89452 M

The 89452 M is a double-row cylindrical roller thrust bearing, measuring 260mm in bore diameter and 480mm in outer diameter, with a width of 132mm. Made from chrome steel, it’s built to handle heavy thrust loads with ease.

It can manage dynamic radial loads up to 641250 lbf and static radial loads up to 3217500 lbf, operating smoothly at speeds up to 600 RPM. The machined brass cage adds durability and reduces friction.

The bearing’s double-row design provides extra stability, making it suitable for high-load applications. It works well in temperatures ranging from -30°C to 110°C.

Ideal for industrial machinery like gearboxes or heavy equipment, this model is interchangeable with SKF bearings. Weighing 114kg, it’s robust and reliable for demanding environments. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 89452 M
  • Size 260 mm x 480 mm x 132 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 2
  • Bore Dia 260 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 480 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 132 mm
  • Height Tolerance -0.40mm to +0.04mm
  • Outside Diameter Shaft Washer 480 mm
  • Bore Diameter Housing Washer 265 mm
  • Height Shaft Washer 44 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 6 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 641250 lbf
  • Static Radial Load 3217500 lbf
  • Max Speed 600 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 114 kg
  • Shaft Washer IW-89452
  • Housing Washer OW-89452

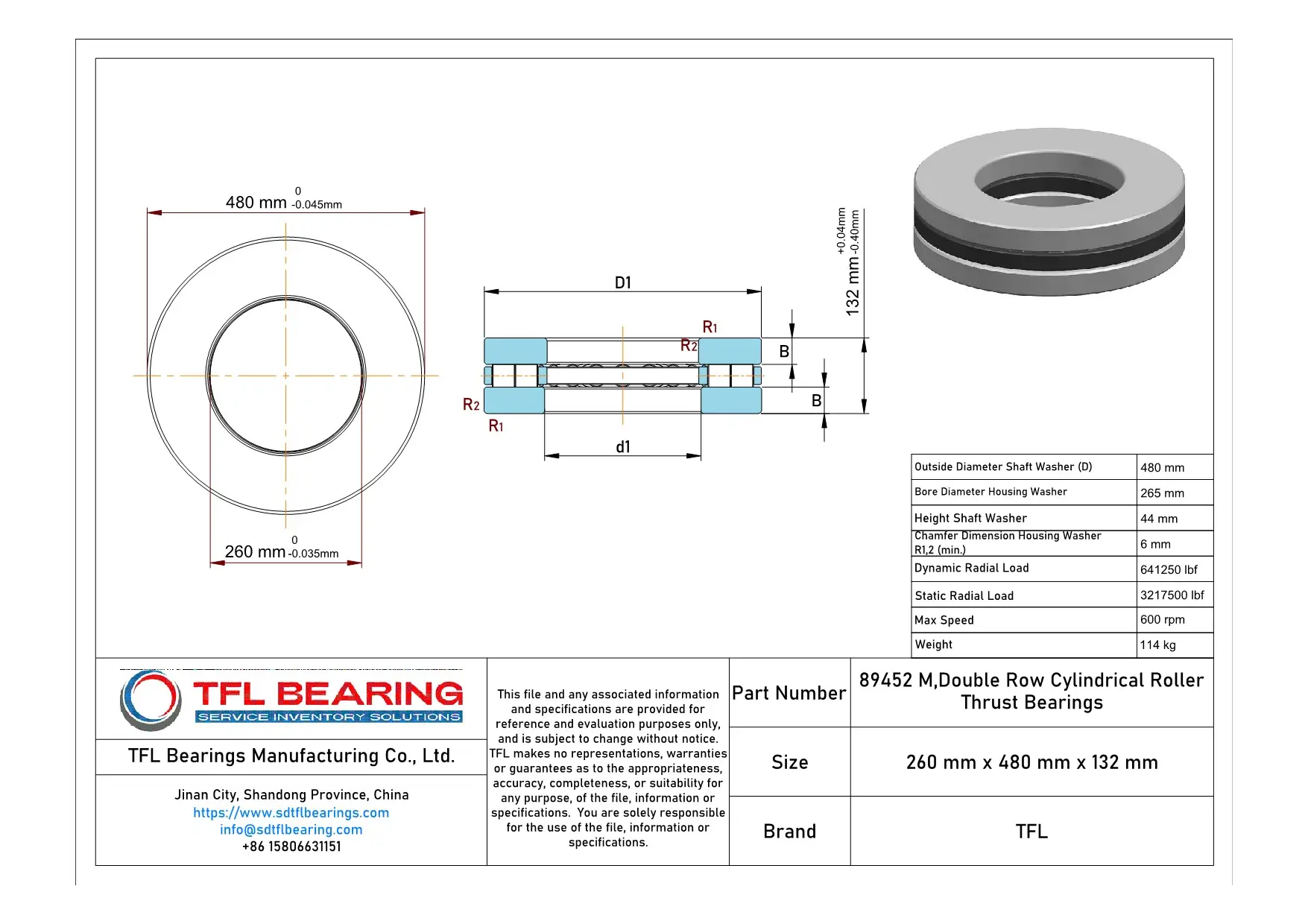

Double Row Cylindrical Roller Thrust Bearings 89452 M dimension drawing
Download DWG Download PDF

Features

Why Choose 89452 M Bearing for Precision Tasks?

89452 M Bearing features a double-row cylindrical roller design, optimised for handling high thrust loads with precision.
Its chrome steel construction ensures durability, while the machined brass cage maintains roller alignment for smooth operation.

With a dynamic radial load capacity of 641250 lbf, 89452 M Bearing performs reliably under heavy-duty conditions.
The bearing operates efficiently within a temperature range of -30° to 110°C, suitable for various industrial environments.

Designed for ease of installation, 89452 M Bearing reduces maintenance efforts and operational downtime.
Its robust construction and high load capacity make it ideal for demanding applications requiring long-term reliability.

Application

Industrial Uses of 89452 M Bearing
The 89452 M Bearing is commonly used in heavy machinery like industrial presses and large conveyor systems, where its double-row design handles significant thrust loads. Its chrome steel construction ensures durability in demanding environments.

Why Is 89452 M Bearing Essential in Machinery?
With a dynamic radial load capacity of 641250 lbf, 89452 M Bearing excels in applications like wind turbine gearboxes and mining equipment. The machined brass cage adds stability, making it reliable for high-load scenarios.

Built for Heavy-Duty Use: 89452 M Bearing
In steel mills and shipbuilding, 89452 M Bearing supports axial loads in rolling mills and propulsion systems. Its metric sizing and compatibility with SKF models make it a versatile choice for global industries.

Automotive vs Aerospace: Applications of 89452 M Bearing
While 89452 M Bearing isn’t typical in aerospace, it’s ideal for automotive testing rigs and large truck transmissions. Its high static load rating (3217500 lbf) ensures longevity in rigorous testing environments.

Perfect Fit for Automation: 89452 M Bearing
In automated production lines, 89452 M Bearing handles precise axial positioning in robotic arms and assembly systems. The temperature range (-30° to 110°C) suits varied factory conditions.
