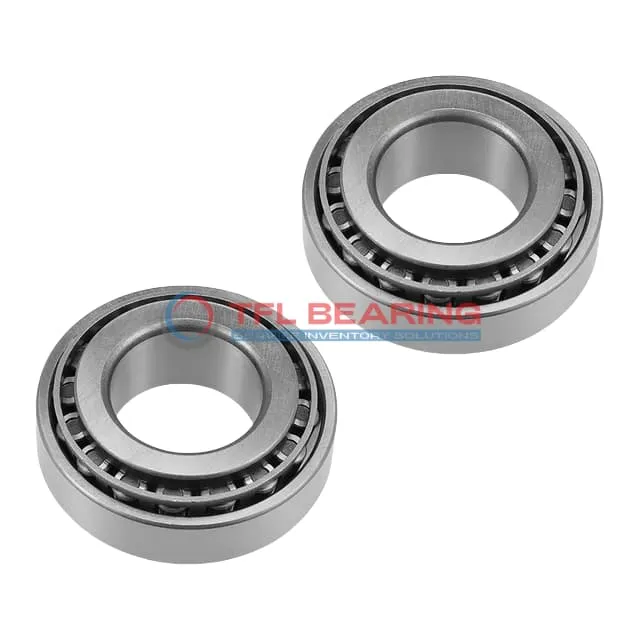

TS (Single Row Tapered Roller Bearings) (Imperial) 48393-48320

The 48393-48320 is a single-row tapered roller bearing with a 5.375″ bore and 7.5″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 63600 lbf and is designed for long-lasting performance.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a reliable replacement option. Ideal for heavy-duty applications like industrial machinery or automotive systems where combined loads are common.

Weighing 7.5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets essential safety and environmental requirements.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 48393-48320
Brand TFL
Interchangeable Timken
Size 5.375" x 7.5" x 1.5625"
Bore Dia 5.375"
Bore Dia Tolerance +0.001" to 0
Outer Dia 7.5"
Outer Dia Tolerance +0.001" to 0
Cone Width 1.5625"
Cone Width Tolerance +0.003" to -0.01
Cup Width 1.3125"
Cup Width Tolerance +0.002" to -0.01
Width 1.5625"
Width Tolerance +0.014" to -0.01"
Cone Backface ToClear Radius 0.14"
Cup Backface ToClear Radius 0.130"
Cone Frontface Backing Diameter 6.65"
Cone Backface Backing Diameter 5.94"
Cup Frontface Backing Diameter 7.28"
Cup Backface Backing Diameter 6.97"
Cage Cone Frontface Clearance 0.08"
Cage Cone Backface Clearance 0.09"
Effective Center Location -0.16"
System of Measurement Inch
Type Bearing
Cone Part Number 48393
Cup Part Number 48320
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 48300
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 63600 lbf
Static Radial Load 122000 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 16500 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 9060 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 7.5 lb
