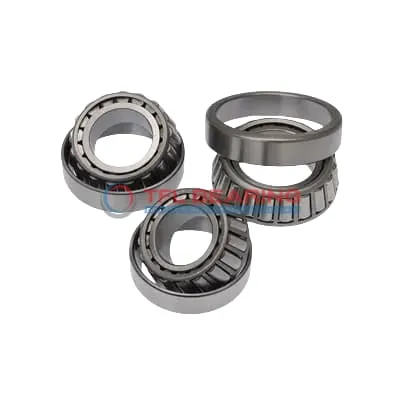

TS (Single Row Tapered Roller Bearings) (Imperial) M249734-M249710X

TS (Single Row Tapered Roller Bearings) (Imperial) M249734-M249710X

The M249734-M249710X is a single-row tapered roller bearing with a 9.125″ bore and 14.125″ outer diameter, crafted from robust chrome steel. It handles combined loads, with a dynamic radial load capacity of 206,000 lbf and a static radial load of 416,000 lbf.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, making it suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial machinery or large equipment where combined loads are common.

Weighing 57.40 lb, it’s built to last and complies with RoHS and REACH standards for safe use. The standard radial clearance ensures versatile performance across various setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number M249734-M249710X
  • Brand TFL
  • Interchangeable Timken
  • Size 9.125" x 14.125" x 2.8125"
  • Bore Dia 9.125"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 14.125"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 2.8125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.8125"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 11.18"
  • Cone Backface Backing Diameter 10.35"
  • Cup Frontface Backing Diameter 13.52"
  • Cup Backface Backing Diameter 13.19"
  • Cage Cone Frontface Clearance 0.17"
  • Cage Cone Backface Clearance 0.28"
  • Effective Center Location -0.27"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number M249734
  • Cup Part Number M249710X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series M249700
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 206000 lbf
  • Static Radial Load 416000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 53300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 30300 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 57.40 lb

Features

Performance Features of M249734-M249710X Bearing

M249734-M249710X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 206,000 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

M249734-M249710X Bearing requires lubrication, ensuring smooth operation and reduced wear over time.
Its standard radial clearance options provide flexibility for different installation needs.

Application

Industrial Uses of M249734-M249710X Bearing
M249734-M249710X Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

Where Is M249734-M249710X Bearing Used?
You’ll often find M249734-M249710X Bearing in large industrial gearboxes and power transmission systems. Its inch sizing makes it a good fit for American-made machinery, and the open design allows for easy lubrication.

Built for Heavy-Duty Use: M249734-M249710X Bearing
M249734-M249710X Bearing excels in applications like agricultural machinery and railway axles, where high radial and thrust loads are common. The steel cage adds extra strength, making it reliable for long-term use.

Automotive vs Aerospace: Applications of M249734-M249710X Bearing
In automotive settings, M249734-M249710X Bearing supports large truck axles and drivetrains, while in aerospace, it’s used in landing gear systems. The ABEC-1 rating ensures consistent performance across different industries.

Perfect Fit for Automation: M249734-M249710X Bearing
M249734-M249710X Bearing works well in automated conveyor systems and robotic arms, where precision and load capacity matter. Its standard radial clearance options make it adaptable to various automation needs.
