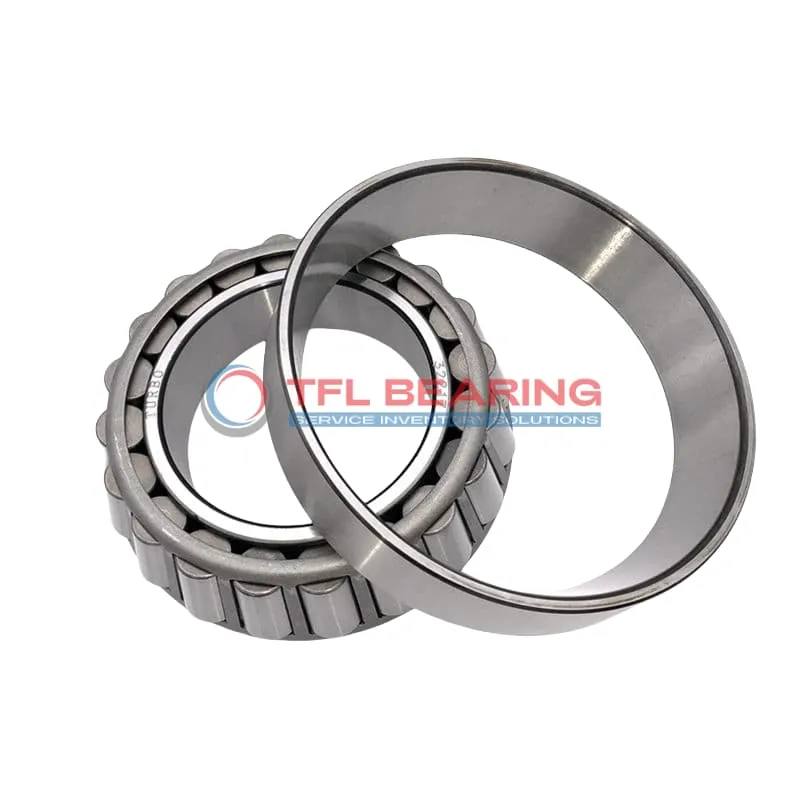

TS (Single Row Tapered Roller Bearings) (Imperial) 47686-47623A

TS (Single Row Tapered Roller Bearings) (Imperial) 47686-47623A

The 47686-47623A is a single-row tapered roller bearing with a 3.25″ bore and 5.375″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 48100 lbf radially and 8640 lbf in thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive systems where combined loads are common.

Weighing 5.2 lb, it balances strength and manageability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 47686-47623A
  • Brand TFL
  • Interchangeable Timken
  • Size 3.25" x 5.375" x 1.7501"
  • Bore Dia 3.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5.375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.3125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.7501"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 4.41"
  • Cone Backface Backing Diameter 3.86"
  • Cup Frontface Backing Diameter 1.10"
  • Cup Backface Backing Diameter 4.72"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 47686
  • Cup Part Number 47623A
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 47600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 48100 lbf
  • Static Radial Load 58900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 12500 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8640 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.2 lb

Features

Performance Features of 47686-47623A Bearing

47686-47623A Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 48,100 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

47686-47623A Bearing’s standard radial clearance allows for smooth operation under different conditions.
Its ABEC-1 rating ensures consistent performance for industrial applications.

Application

Industrial Uses of 47686-47623A Bearing
The 47686-47623A Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in demanding environments.

Where Is 47686-47623A Bearing Used?
You’ll often find 47686-47623A Bearing in automotive applications like truck wheel hubs, where its ability to manage radial and thrust loads keeps things running smoothly. The inch sizing makes it a good fit for many North American vehicles.

Built for Heavy-Duty Use: 47686-47623A Bearing
This bearing excels in industrial gearboxes, thanks to its robust steel cage and high dynamic load capacity. It’s also a reliable choice for agricultural machinery, where rough conditions demand long-lasting performance.

Automotive vs Aerospace: Applications of 47686-47623A Bearing
In automotive settings, 47686-47623A Bearing supports heavy axles and transmissions, while its precision makes it suitable for certain aerospace components. The open design allows for easy lubrication, extending its service life.

Key Fields for 47686-47623A Bearing
The 47686-47623A Bearing is a go-to for railway applications, where its tapered rollers handle varying loads with ease. Its standard radial clearance also makes it versatile for different operational needs.
