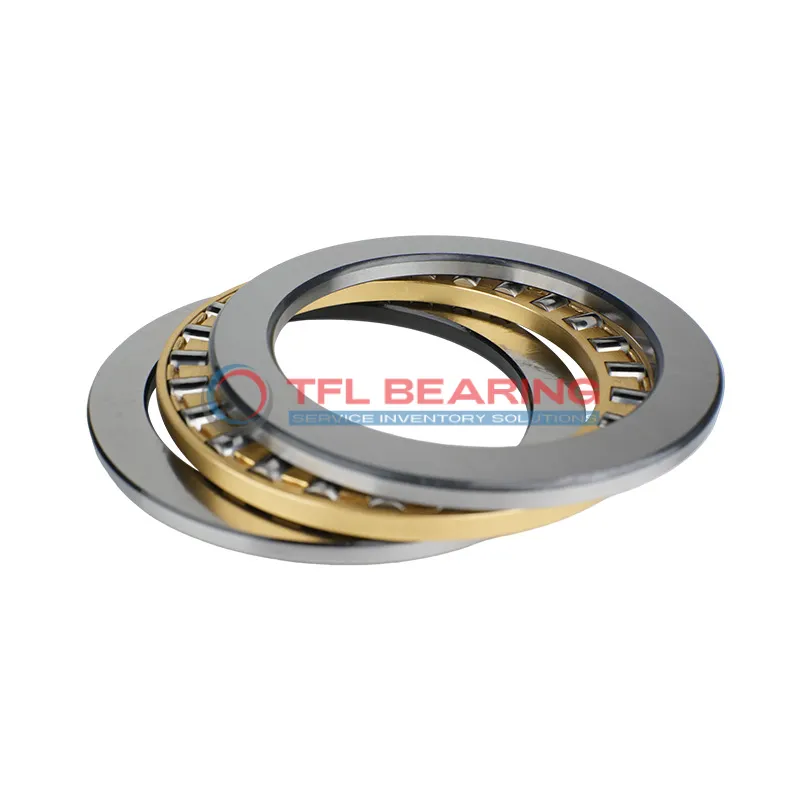

Single Row Cylindrical Roller Thrust Bearings 81192 M

Single Row Cylindrical Roller Thrust Bearings 81192 M

The 81192 M is a single-row cylindrical roller thrust bearing with a 460mm bore and 560mm outer diameter, built from sturdy chrome steel. It handles heavy thrust loads up to 328500 lbf and operates smoothly at speeds up to 600 RPM.

Its machined brass cage ensures durability, while the precise tolerances provide reliable performance. The bearing works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or large gear systems where high thrust loads are common.

Weighing 43kg, it’s designed for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 81192 M
  • size 460 mm x 560 mm x 80 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 460 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 560 mm
  • Outer Dia Tolerance -0.050mm to 0
  • Width 80 mm
  • Height Tolerance -0.50mm to +0.05mm
  • Outside Diameter Shaft Washer 556 mm
  • Bore Diameter Housing Washer 464 mm
  • Height Shaft Washer 24 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 2.1 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 328500 lbf
  • Static Radial Load 1912500 lbf
  • Max Speed 600 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 43 kg
  • Roller And Cage Thrust Assembly K-81192 M
  • Shaft Washer IW-81192
  • Housing Washer OW-81192
Single Row Cylindrical Roller Thrust Bearings 81192 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 81192 M Bearing

81192 M Bearing is built with chrome steel washers and rollers, offering strong resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 328500 lbf, making it suitable for demanding industrial applications.

The machined brass cage ensures smooth roller alignment, reducing friction and extending operational life.
With a maximum speed of 600 rpm, it delivers reliable performance under high-load conditions.

81192 M Bearing operates efficiently in temperatures ranging from -30° to 110 °C.
Its precision-engineered dimensions (460 mm x 560 mm x 80 mm) ensure compatibility with standard industrial equipment.

Application

Industrial Uses of 81192 M Bearing
81192 M Bearing is commonly used in heavy machinery like industrial presses and large conveyor systems, where its cylindrical roller design handles significant thrust loads efficiently. The machined brass cage ensures smooth operation even under high stress.

What Makes 81192 M Bearing a Preferred Choice?
With its large bore diameter of 460 mm, 81192 M Bearing is ideal for applications in wind turbines and mining equipment, where durability and load capacity are key. The chrome steel construction offers excellent resistance to wear and fatigue.

Built for Heavy-Duty Use: 81192 M Bearing
81192 M Bearing excels in steel mills and shipbuilding, where its static radial load capacity of 1912500 lbf provides reliable performance. The metric sizing makes it compatible with a wide range of industrial equipment.

Automotive vs Aerospace: Applications of 81192 M Bearing
In automotive settings, 81192 M Bearing supports large drivetrain components, while in aerospace, its precision and load capacity make it suitable for landing gear systems. The temperature range of -30° to 110°C ensures versatility across environments.

Essential Roles of 81192 M Bearing
81192 M Bearing is vital in hydroelectric power plants, where its ability to handle dynamic radial loads up to 328500 lbf ensures uninterrupted operation. The open design allows for easy lubrication and maintenance.
