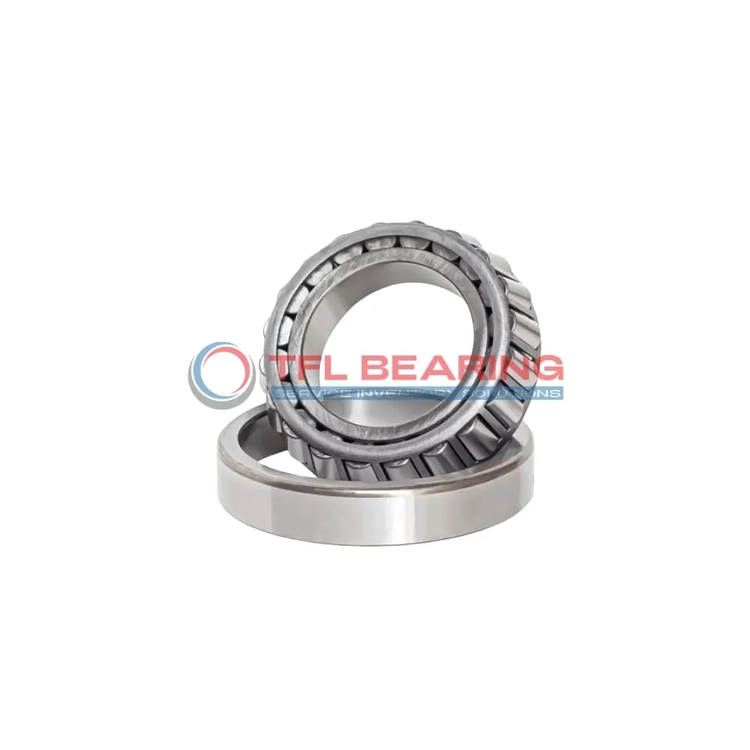

TS (Single Row Tapered Roller Bearings) (Imperial) 467-453E

TS (Single Row Tapered Roller Bearings) (Imperial) 467-453E

The 467-453E is a single-row tapered roller bearing with a 1.875″ bore and 4.125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 36100 lbf radially and 5380 lbf in thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 2.8 lb, it balances strength and manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

The tapered roller design provides effective load distribution, enhancing longevity. Suitable for applications requiring standard radial clearance or optional C3/C4/C5 adjustments.

Its ABEC-1 rating ensures consistent performance for general precision needs. A practical choice for maintenance or upgrades in demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 467-453E
  • Brand TFL
  • Interchangeable Timken
  • Size 1.875" x 4.125" x 1.2814"
  • Bore Dia 1.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1542"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2814"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.2"
  • Cone Backface Backing Diameter 2.24"
  • Cup Frontface Backing Diameter 3.90"
  • Cup Backface Backing Diameter 3.66"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.28"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 467
  • Cup Part Number 453E
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 455
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 36100 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9370 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5380 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.8 lb

Features

Performance Features of 467-453E Bearing

467-453E Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 36,100 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Application

Industrial Uses of 467-453E Bearing
467-453E Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in tough working conditions.

In automotive applications, 467-453E Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its inch sizing makes it compatible with many American vehicle models.

For industrial conveyor systems, 467-453E Bearing’s open design allows for easy lubrication, extending its service life. The standard radial clearance offers flexibility for different operational needs.

What Makes 467-453E Bearing a Preferred Choice?
467-453E Bearing works smoothly in agricultural machinery, such as tractors, thanks to its robust steel cage. The tapered rollers distribute loads evenly, reducing wear over time.

In mining equipment, 467-453E Bearing handles high radial and thrust loads without compromising performance. Its ABEC-1 rating ensures consistent precision for demanding tasks.

Built for Heavy-Duty Use: 467-453E Bearing
467-453E Bearing is ideal for forestry machinery, where its chrome steel rollers withstand harsh environments. The single-row design simplifies installation and maintenance.

For railway applications, 467-453E Bearing provides stability in axle boxes, ensuring smooth operation. Its temperature range suits both cold and moderately hot climates.

Light-Duty vs Heavy-Duty: Best Uses for 467-453E Bearing
467-453E Bearing performs well in light-duty applications like small gearboxes, offering reliable support. Its dynamic load capacity makes it versatile for various industrial needs.

In heavy-duty scenarios like oil rigs, 467-453E Bearing’s high static radial load rating ensures long-lasting performance. The steel cage adds extra strength for extreme conditions.
