TS (Single Row Tapered Roller Bearings) (Imperial) 05066-05175

TS (Single Row Tapered Roller Bearings) (Imperial) 05066-05175

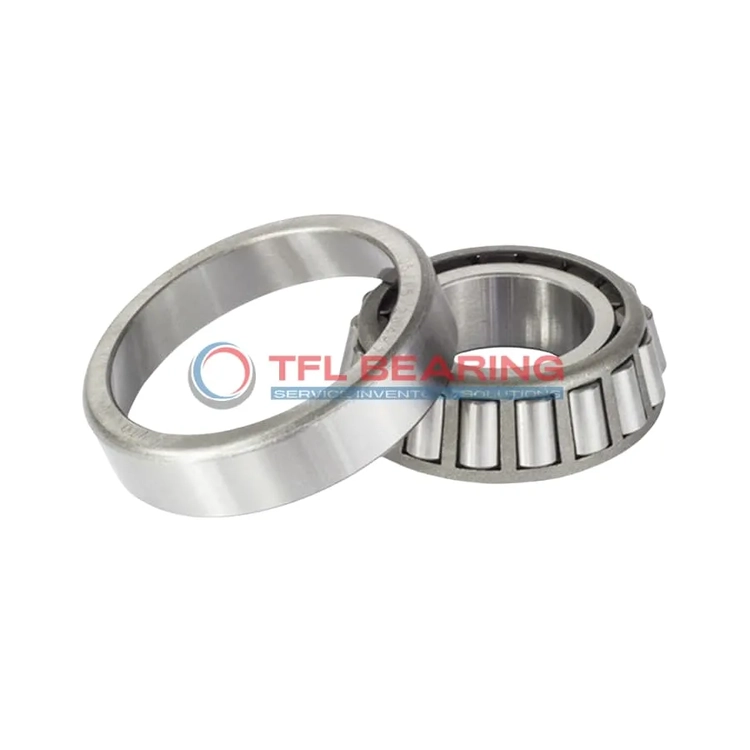

The 05066-05175 is a single-row tapered roller bearing with a 0.669″ bore and 1.75″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 6010 lbf and works well in temperatures from -30°C to 110°C.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing is interchangeable with Timken models, making it a practical choice for replacements.

With a standard radial clearance and ABEC-1 rating, it offers reliable performance for various applications. Ideal for machinery or automotive uses where combined loads are common.

Weighing just 0.3 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe and versatile use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 05066-05175
  • Brand TFL
  • Interchangeable Timken
  • Size 0.669" x 1.75" x 0.61"
  • Bore Dia 0.669"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 1.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.5662"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.45"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.61"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 0.87"
  • Cone Backface Backing Diameter 0.96"
  • Cup Frontface Backing Diameter 1.67"
  • Cup Backface Backing Diameter 1.50"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance -0.01"
  • Effective Center Location -0.16"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 5066
  • Cup Part Number 5175
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 5000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 6010 lbf
  • Static Radial Load 5720 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 1560 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 952 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.3 lb

Features

Why Choose 05066-05175 Bearing for Precision Tasks?

05066-05175 Bearing features a single row tapered roller design, ideal for handling combined loads with precision.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The bearing’s dynamic radial load capacity of 6010 lbf makes it suitable for heavy-duty operations.
With a standard radial clearance, it offers reliable performance across various conditions.

05066-05175 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage maintains roller alignment, enhancing longevity and reducing maintenance needs.

Application

Industrial Uses of 05066-05175 Bearing
05066-05175 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 05066-05175 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a convenient choice for North American vehicle models.

For industrial conveyor systems, 05066-05175 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability during high-speed rotations.

Where Is 05066-05175 Bearing Used?
05066-05175 Bearing finds its place in agricultural machinery, supporting components like gearboxes and PTO shafts. Its ABEC-1 rating ensures consistent performance in rough conditions.

In mining equipment, 05066-05175 Bearing withstands heavy radial and thrust loads, thanks to its tapered roller design. The standard radial clearance accommodates thermal expansion during prolonged use.

Built for Heavy-Duty Use: 05066-05175 Bearing
05066-05175 Bearing excels in forestry equipment, where its robust construction handles shock loads from uneven terrain. The inch measurements simplify replacements in older machinery.

For material handling systems, 05066-05175 Bearing’s dynamic load capacity ensures smooth operation under constant stress. The open seal type facilitates regular maintenance checks.

Automotive vs Aerospace: Applications of 05066-05175 Bearing
In automotive drivetrains, 05066-05175 Bearing provides reliable support for axles and transmissions. Its compatibility with Timken models makes it a versatile option for repairs.

While not typically used in aerospace, 05066-05175 Bearing suits ground support equipment like tugs and loaders. The temperature range covers most operational conditions without compromising performance.
