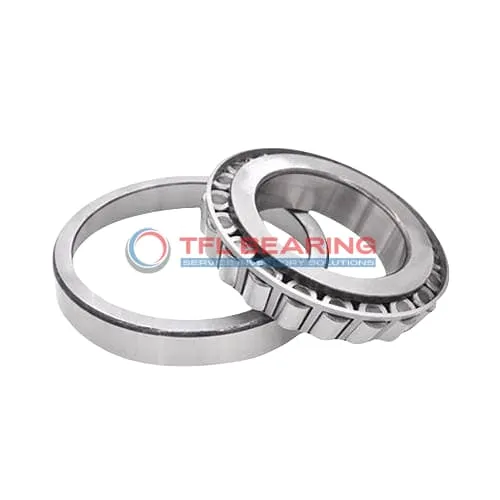

TS (Single Row Tapered Roller Bearings) (Imperial) 462W-453X

TS (Single Row Tapered Roller Bearings) (Imperial) 462W-453X

The 462W-453X is a single-row tapered roller bearing with a 2.25″ bore and 4.125″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 30500 lbf radially and 4540 lbf thrust, suitable for demanding applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 2.3 lb, it offers a balance of strength and manageability. Compliant with RoHS and REACH standards for safe use.

The standard radial clearance and ABEC-1 rating ensure reliable performance. Its tapered roller design provides effective load distribution, enhancing longevity.

Perfect for industrial settings requiring robust and long-lasting bearings. The simple maintenance and sturdy build make it a dependable option.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 462W-453X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.25" x 4.125" x 1.1876"
  • Bore Dia 2.25"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1542"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9687"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1876"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.48"
  • Cone Backface Backing Diameter 2.64"
  • Cup Frontface Backing Diameter 3.90"
  • Cup Backface Backing Diameter 3.62"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.28"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 462W
  • Cup Part Number 453X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 455
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 30500 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 7900 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 4540 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.3 lb

Features

Performance Features of 462W-453X Bearing

462W-453X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 30,500 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a standard radial clearance, it provides flexibility for various installation requirements.

462W-453X Bearing operates efficiently within a temperature range of -30° to 110°C.
Its tapered roller design ensures smooth performance under both radial and thrust loads.

The open seal type allows for easy lubrication, enhancing maintenance convenience.
Weighing just 2.3 lb, it balances durability with manageable handling.

Application

Industrial Uses of 462W-453X Bearing
The 462W-453X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

Where Is 462W-453X Bearing Used?
You’ll often find 462W-453X Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for vehicles requiring imperial measurements.

Built for Heavy-Duty Use: 462W-453X Bearing
462W-453X Bearing excels in industrial fans and pumps, thanks to its robust steel cage and high dynamic load capacity. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 462W-453X Bearing
In automotive systems, 462W-453X Bearing supports high radial loads, while in aerospace, its precision fits auxiliary equipment. The ABEC-1 rating ensures consistent performance across both sectors.

Practical Applications of 462W-453X Bearing
For conveyor systems and material handling equipment, 462W-453X Bearing offers reliable performance with its standard radial clearance. The tapered rollers reduce friction, enhancing efficiency.
