TS (Single Row Tapered Roller Bearings) (Imperial) L102849-L102810

TS (Single Row Tapered Roller Bearings) (Imperial) L102849-L102810

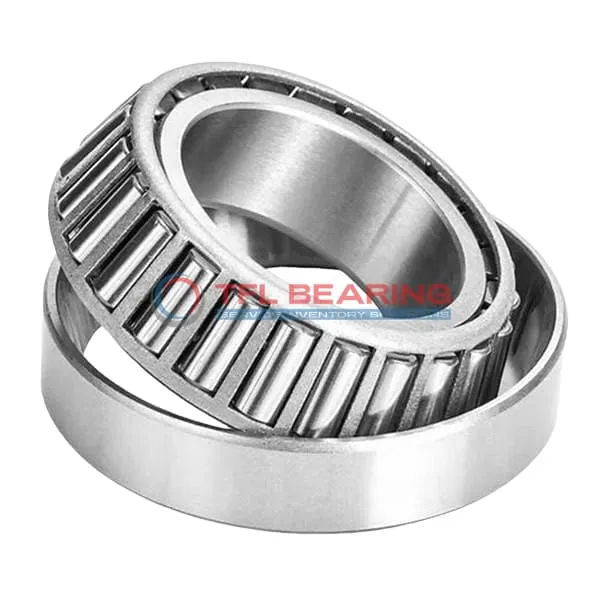

The L102849-L102810 is a single-row tapered roller bearing with a 1.75″ bore and 2.875″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 12800 lbf radially and 1810 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive uses where combined loads are common.

Weighing just 0.7 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for industrial environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number L102849-L102810
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 2.875" x 0.7188"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.7188"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.5938"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.7188"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.93"
  • Cone Backface Backing Diameter 2.01"
  • Cup Frontface Backing Diameter 2.74"
  • Cup Backface Backing Diameter 2.60"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance -0.02"
  • Effective Center Location -0.15"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number L102849
  • Cup Part Number L102810
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series L102800
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 12800 lbf
  • Static Radial Load 17600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3320 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1810 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.7 lb

Features

How Is L102849-L102810 Bearing Engineered for Reliability?

L102849-L102810 Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 12800 lbf, making it suitable for heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

Why Choose L102849-L102810 Bearing for Precision Tasks?

L102849-L102810 Bearing is designed with precise tolerances, ensuring accurate performance in combined load scenarios.
The tapered roller design distributes loads evenly, enhancing stability and reducing wear.
Its ABEC-1 rating confirms consistent quality for applications requiring dependable precision.
The standard radial clearance option allows for flexibility in different operational conditions.

Built for Durability: L102849-L102810 Bearing

L102849-L102810 Bearing’s chrome steel construction resists wear, even under high dynamic radial loads.
The single-row design simplifies installation while maintaining robust performance.
Its effective center location ensures proper alignment, reducing stress on components.
With a static radial load capacity of 17600 lbf, it handles demanding tasks with ease.

Steel vs Ceramic Bearings: Strengths of L102849-L102810 Bearing

L102849-L102810 Bearing uses chrome steel for both rings and rollers, offering excellent strength and cost-efficiency.
The steel cage provides reliable roller guidance, ensuring smooth operation under combined loads.
Its dynamic thrust rating of 1810 lbf makes it versatile for various applications.
The standard lubrication requirement ensures consistent performance over time.

Application

Industrial Uses of L102849-L102810 Bearing
L102849-L102810 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, L102849-L102810 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a convenient choice for North American vehicle models.

For industrial conveyor systems, L102849-L102810 Bearing’s open design allows for easy lubrication, extending service life in high-use scenarios. The steel cage adds extra strength, making it suitable for continuous operation.

What Makes L102849-L102810 Bearing a Preferred Choice?
L102849-L102810 Bearing stands out in applications like gearboxes and drivetrains, where its tapered rollers manage both radial and thrust loads smoothly. The standard radial clearance offers flexibility for various operational needs.

In mining equipment, L102849-L102810 Bearing’s robust design handles harsh conditions, from dust to heavy vibrations. Its ABEC-1 rating ensures consistent performance without overcomplicating precision requirements.

For general machinery maintenance, L102849-L102810 Bearing’s compatibility with Timken models simplifies replacements. The inch measurements cater to older or region-specific equipment without conversion hassles.

Built for Heavy-Duty Use: L102849-L102810 Bearing
L102849-L102810 Bearing excels in forestry machinery, where its tapered rollers endure uneven loads and shocks. The chrome steel rollers resist wear, even with frequent starts and stops.

In material handling systems, L102849-L102810 Bearing’s dynamic load capacity keeps operations running smoothly. The open seal type allows for straightforward re-greasing during routine checks.

For pump systems, L102849-L102810 Bearing’s temperature range (-30° to 110°C) suits both indoor and outdoor installations. Its steel cage prevents deformation under constant thrust pressures.

Automotive vs Aerospace: Applications of L102849-L102810 Bearing
In automotive settings, L102849-L102810 Bearing is ideal for truck axles, balancing durability and load capacity. The imperial sizing aligns with standard US automotive parts.

For aerospace ground support equipment, L102849-L102810 Bearing handles heavy loads during aircraft maintenance. Its compliance with RoHS and REACH ensures environmental safety in sensitive areas.

In industrial fans, L102849-L102810 Bearing’s tapered design reduces friction at high speeds. The dynamic radial load rating (12,800 lbf) supports prolonged use without frequent replacements.
