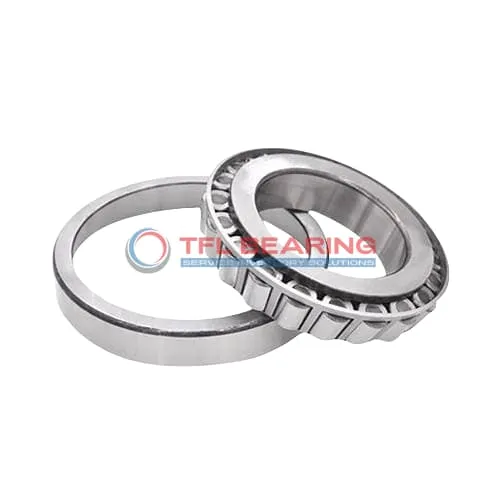

TS (Single Row Tapered Roller Bearings) (Imperial) 462-453E

TS (Single Row Tapered Roller Bearings) (Imperial) 462-453E

The 462-453E is a single-row tapered roller bearing with a 2.25″ bore and 4.125″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 36100 lbf radially and 5380 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 2.4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for most environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 462-453E
  • Brand TFL
  • Interchangeable Timken
  • Size 2.25" x 4.125" x 1.2814"
  • Bore Dia 2.25"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1542"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2814"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.48"
  • Cone Backface Backing Diameter 2.64"
  • Cup Frontface Backing Diameter 3.90"
  • Cup Backface Backing Diameter 3.66"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.07"
  • Effective Center Location -0.28"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 462
  • Cup Part Number 453E
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 455
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 36100 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9370 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5380 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.4 lb

Features

How Is 462-453E Bearing Engineered for Reliability?

462-453E Bearing is constructed with chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 36,100 lbf, making it suitable for heavy-duty applications.

The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

462-453E Bearing features standard radial clearance, offering flexibility for different installation needs.
Its tapered roller design efficiently handles both radial and thrust loads, ensuring smooth operation.

Application

Industrial Uses of 462-453E Bearing
462-453E Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 462-453E Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a convenient choice for North American vehicle models.

For industrial conveyor systems, 462-453E Bearing’s open design allows for easy lubrication, extending service life in high-use scenarios. The steel cage adds extra strength, making it suitable for continuous operation.

What Makes 462-453E Bearing a Preferred Choice?
462-453E Bearing stands out in applications like mining equipment, where its robust design copes with extreme conditions. The tapered rollers distribute loads evenly, reducing wear over time.

In wind turbine systems, 462-453E Bearing’s ability to handle radial and thrust loads makes it a reliable component. Its temperature tolerance ensures consistent performance in varying climates.

Built for Heavy-Duty Use: 462-453E Bearing
462-453E Bearing is ideal for railway axle systems, where its combined load capacity and durability are crucial. The standard radial clearance offers flexibility for different operational needs.

In material handling equipment, 462-453E Bearing’s steel cage and chrome steel rollers provide long-lasting performance. Its easy maintenance design reduces downtime in busy industrial settings.

Automotive vs Aerospace: Applications of 462-453E Bearing
In automotive transmissions, 462-453E Bearing’s tapered rollers ensure smooth power transfer under heavy loads. The ABEC-1 rating balances precision and cost-effectiveness for mass production.

For aerospace ground support equipment, 462-453E Bearing’s reliability and temperature resistance make it a practical choice. Its imperial measurements align with standard maintenance tools in the industry.
