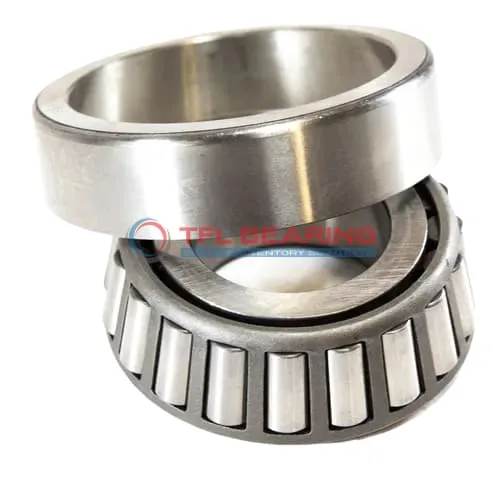

TS (Single Row Tapered Roller Bearings) (Imperial) 93806A-93134

TS (Single Row Tapered Roller Bearings) (Imperial) 93806A-93134

The 93806A-93134 is a single-row tapered roller bearing with an 8.0625″ bore and 13.4132″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 164,000 lbf radially and 38,200 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where robust performance is needed.

Weighing 52.3 lb, it’s built to last with standard radial clearance and ABEC-1 precision. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 93806A-93134
  • Brand TFL
  • Interchangeable Timken
  • Size 8.0625" x 13.4132" x 2.8"
  • Bore Dia 8.0625"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 13.4132"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 2.5"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 2.1125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.8"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.170"
  • Cup Backface ToClear Radius 0.250"
  • Cone Frontface Backing Diameter 9.87"
  • Cone Backface Backing Diameter 9.02"
  • Cup Frontface Backing Diameter 11.97"
  • Cup Backface Backing Diameter 11.77"
  • Cage Cone Frontface Clearance 0.21"
  • Cage Cone Backface Clearance 0.32"
  • Effective Center Location 0.31"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 93806A
  • Cup Part Number 93134
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 93000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 164000 lbf
  • Static Radial Load 290000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 42600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 38200 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 52.300 lb

Features

How Is 93806A-93134 Bearing Engineered for Reliability?

93806A-93134 Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 164,000 lbf, making it suitable for heavy-duty applications.

The tapered roller design distributes loads evenly, reducing stress and extending service life.
With a standard radial clearance, it offers reliable performance in various operating conditions.

93806A-93134 Bearing operates within a temperature range of -30° to 110°C, adapting to diverse environments.
The steel cage maintains roller alignment, ensuring smooth operation and minimal wear.

Application

Industrial Uses of 93806A-93134 Bearing
93806A-93134 Bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 93806A-93134 Bearing Used?
You’ll often find 93806A-93134 Bearing in agricultural machinery, such as tractors and harvesters, where its robust design supports high radial and thrust loads. The inch sizing makes it a good fit for North American equipment standards.

Built for Heavy-Duty Use: 93806A-93134 Bearing
93806A-93134 Bearing excels in industrial gearboxes, providing reliable performance under continuous operation. Its steel cage offers added strength, making it suitable for high-torque applications.

Automotive vs Aerospace: Applications of 93806A-93134 Bearing
In automotive systems, 93806A-93134 Bearing is used in wheel hubs and differentials, while in aerospace, it supports auxiliary equipment. The ABEC-1 rating ensures consistent performance across both sectors.

Essential Roles of 93806A-93134 Bearing
93806A-93134 Bearing is vital in railway applications, particularly in axle boxes where its tapered rollers manage dynamic loads. The standard radial clearance allows for smooth operation under varying conditions.
