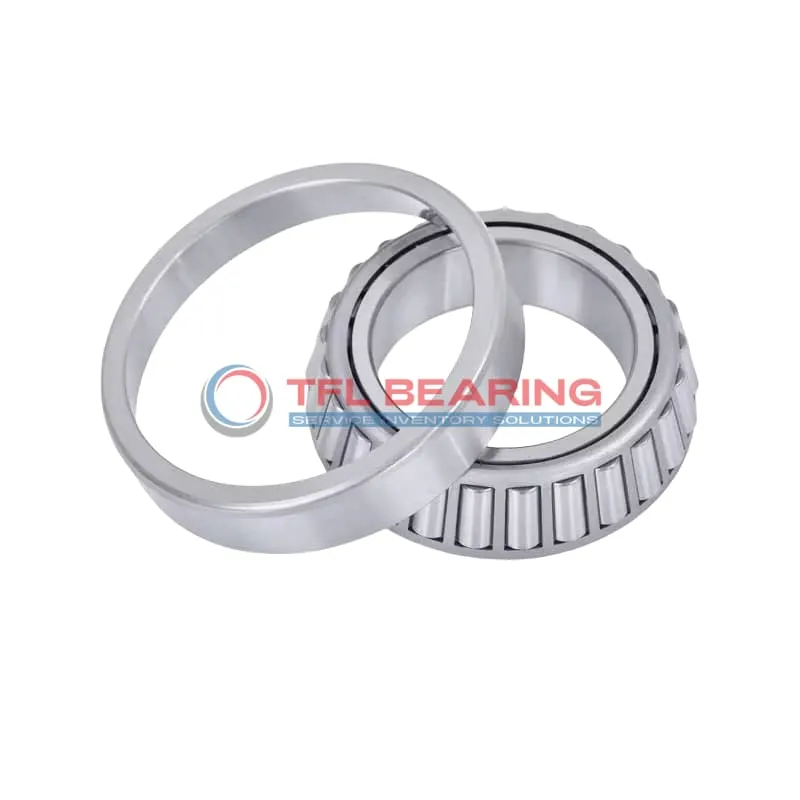

TS (Single Row Tapered Roller Bearings) (Imperial) 436-432X

TS (Single Row Tapered Roller Bearings) (Imperial) 436-432X

The 436-432X is a single-row tapered roller bearing with a 1.8125″ bore and 3.75″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 28500 lbf radially and 3600 lbf in thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in automotive or industrial machinery where combined loads are common.

Weighing 2.2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for diverse applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 436-432X
  • Brand TFL
  • Interchangeable Timken
  • Size 1.8125" x 3.75" x 1.2501"
  • Bore Dia 1.8125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1772"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.0313"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2501"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.05"
  • Cone Backface Backing Diameter 2.32"
  • Cup Frontface Backing Diameter 3.46"
  • Cup Backface Backing Diameter 3.19"
  • Cage Cone Frontface Clearance 0.05"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location -0.36"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 436
  • Cup Part Number 432X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 435
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 28500 lbf
  • Static Radial Load 32400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 7400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3600 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.2 lb

Features

How Is 436-432X Bearing Engineered for Reliability?

436-432X Bearing features chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 28,500 lbf, making it suitable for demanding industrial applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

What Makes 436-432X Bearing Suitable for High-Temperature Applications?

436-432X Bearing is built to withstand temperatures up to 110°C without compromising performance.
The chrome steel construction resists thermal expansion, maintaining precision under heat.
Its open design allows for effective lubrication, ensuring smooth operation in warm conditions.
The standard radial clearance options provide flexibility for different thermal expansion needs.

Designed for Durability: 436-432X Bearing

436-432X Bearing’s tapered roller design efficiently handles both radial and thrust loads.
The chrome steel components resist wear, ensuring long service life even in heavy-duty use.
With a static radial load capacity of 32,400 lbf, it offers reliable support for industrial machinery.
Its ABEC-1 rating confirms consistent precision in manufacturing.

Steel vs Ceramic Bearings: Strengths of 436-432X Bearing

436-432X Bearing uses high-quality chrome steel for both rollers and rings, balancing cost and performance.
This material choice provides excellent load capacity and durability compared to ceramic alternatives.
The steel cage ensures stable roller movement, reducing vibration and noise.
Its standard radial clearance makes it versatile for various applications.

Why Choose 436-432X Bearing for Precision Tasks?

436-432X Bearing’s tapered roller design ensures accurate load distribution for precise operations.
The chrome steel construction maintains dimensional stability under stress, enhancing reliability.
With a dynamic thrust rating of 3,600 lbf, it handles axial loads effectively.
Its ABEC-1 rating guarantees consistent performance in precision machinery.

Application

Industrial Uses of 436-432X Bearing
The 436-432X Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability in demanding environments.

Where Is 436-432X Bearing Used?
You’ll often find 436-432X Bearing in automotive applications, particularly in wheel hubs and differential systems. Its inch sizing makes it a reliable choice for vehicles requiring precise load distribution.

Built for Heavy-Duty Use: 436-432X Bearing
In industrial settings, 436-432X Bearing supports conveyor systems and gearboxes, thanks to its robust steel cage and standard radial clearance. The open design allows for easy lubrication and maintenance.

Automotive vs Aerospace: Applications of 436-432X Bearing
While 436-432X Bearing excels in automotive wheel assemblies, it’s also suitable for aerospace ground support equipment. Its ABEC-1 rating ensures consistent performance in both fields.

Perfect Fit for Automation: 436-432X Bearing
The 436-432X Bearing is ideal for automated machinery, where its tapered rollers provide smooth motion in robotic arms and assembly lines. The steel cage adds extra stability for high-precision tasks.
