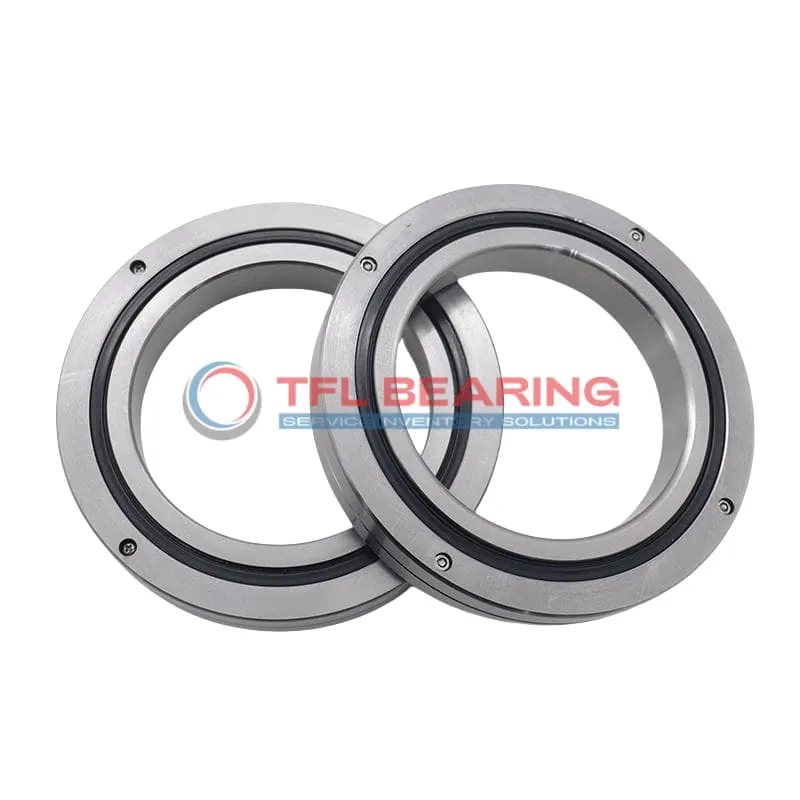

CRBC Crossed Roller Bearings CRBC15030

CRBC Crossed Roller Bearings CRBC15030

The CRBC15030 is a crossed roller bearing with a 150mm bore and 230mm outer diameter, designed for combined loads. Its compact 30mm width and steel construction make it sturdy yet space-efficient.

With a basic load rating of 100kN, it handles heavy loads smoothly. The open design allows easy lubrication, and it operates well in temperatures from 0°C to 110°C.

The crossed roller design provides stability and precision, ideal for rotary tables or robotic arms. Press-fit mounting ensures secure installation.

Weighing 5.3kg, it’s robust for industrial use. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding applications. Available in ABEC5, with higher precision options on request.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBC15030
  • Brand TFL
  • Size 150 mm x 230 mm x 30 mm
  • Bore Dia 150 mm
  • Outer Dia 230 mm
  • Width 30 mm
  • R(min) 1.5 mm
  • Shoulder Height Ds(max) 169 mm
  • Shoulder Height Dh(min) 211 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 100 kN
  • Basic Load Rating Co 156 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5.3 Kg

Features

Performance Features of CRBC15030 Bearing

CRBC15030 Bearing is designed with a single-row crossed roller construction, ideal for combined load applications.
Its steel rings and rollers provide a basic load rating of 100 kN, ensuring reliable performance under stress.

The press-fit shaft mount design simplifies installation, saving time and effort.
With a temperature range of 0-230°F, CRBC15030 Bearing maintains stability in varying conditions.

ABEC5 precision rating ensures smooth operation, with options for higher precision (ABEC7/9) available.
Its open design allows for easy lubrication, enhancing longevity and reducing maintenance needs.

Application

Industrial Uses of CRBC15030 Bearing
CRBC15030 Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables and indexing heads. The steel construction ensures durability even under heavy combined loads.

In robotics, CRBC15030 Bearing supports articulated arms and joints, offering smooth movement with minimal backlash. Its press-fit mounting simplifies installation in compact automated systems.

For medical imaging devices, CRBC15030 Bearing’s high accuracy helps maintain precise positioning during scans. The ABEC5 rating makes it suitable for applications demanding consistent performance.

CRBC15030 Bearing also fits well in packaging machinery, where its ability to handle both radial and axial loads improves efficiency. The open design allows for easy lubrication to extend service life.

In semiconductor manufacturing equipment, CRBC15030 Bearing’s stability ensures precise wafer handling. The metric dimensions make it compatible with various European and Asian machine designs.
