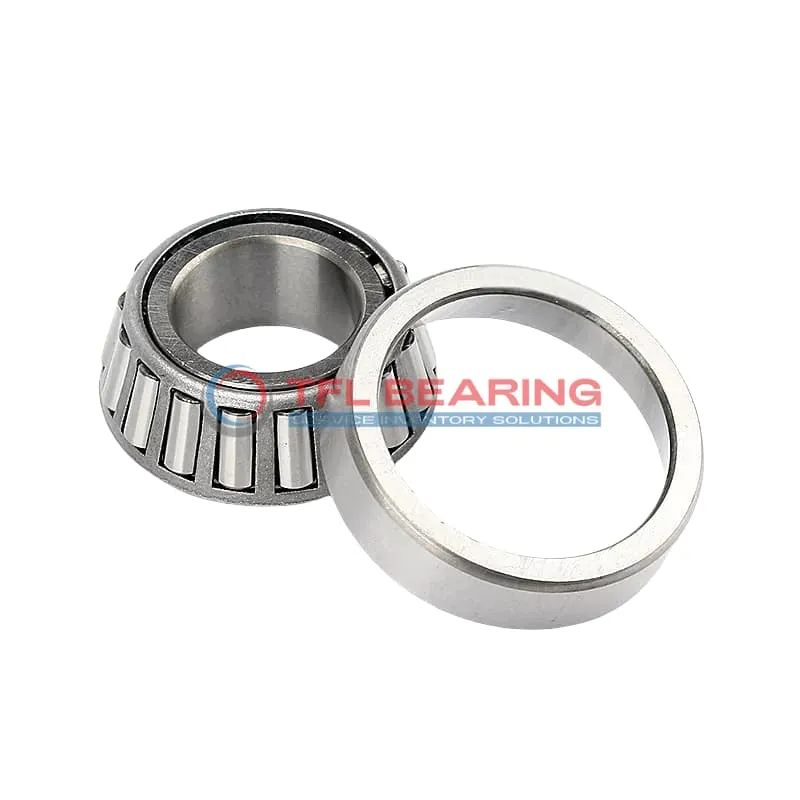

TS (Single Row Tapered Roller Bearings) (Imperial) 42362-42585

TS (Single Row Tapered Roller Bearings) (Imperial) 42362-42585

The 42362-42585 is a single-row tapered roller bearing with a 3.625″ bore and 5.8437″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 36600 lbf radially and 8000 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a practical replacement option. Ideal for industrial machinery or automotive systems where robust load handling is needed.

Weighing 4.100 lb, it’s built to last and complies with RoHS and REACH standards for safe use. The standard radial clearance ensures straightforward installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 42362-42585
  • Brand TFL
  • Interchangeable Timken
  • Size 3.625" x 5.8437" x 1.1251"
  • Bore Dia 3.625"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 5.8437"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1406"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1251"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 4.64"
  • Cone Backface Backing Diameter 4.21"
  • Cup Frontface Backing Diameter 5.67"
  • Cup Backface Backing Diameter 5.24"
  • Cage Cone Frontface Clearance 0.14"
  • Cage Cone Backface Clearance 0.1"
  • Effective Center Location 0.12"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 42362
  • Cup Part Number 42585
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 42000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 36600 lbf
  • Static Radial Load 54300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9490 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.100 lb

Features

Performance Features of 42362-42585 Bearing

42362-42585 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 36,600 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

How Does 42362-42585 Bearing Resist Wear?

42362-42585 Bearing’s chrome steel construction provides excellent wear resistance, even under high stress.
The tapered roller design distributes loads evenly, extending the bearing’s service life.
Its standard radial clearance allows for smooth operation, reducing friction and heat buildup.
This design ensures consistent performance in demanding environments.

Designed for Durability: 42362-42585 Bearing

42362-42585 Bearing features a robust single-row construction, ideal for handling combined loads.
The chrome steel rollers and rings enhance strength, while the steel cage maintains alignment.
With a static radial load capacity of 54,300 lbf, it delivers reliable performance.
Its ABEC-1 rating ensures precision and efficiency in various applications.

Steel vs Ceramic Bearings: Strengths of 42362-42585 Bearing

42362-42585 Bearing uses chrome steel for both rollers and rings, offering high strength and durability.
This material choice ensures excellent load-bearing capacity and resistance to wear.
The bearing’s tapered roller design provides efficient load distribution, reducing stress.
It is a cost-effective solution for applications requiring reliability and long service life.

Application

Industrial Uses of 42362-42585 Bearing
You’ll often spot 42362-42585 Bearing in heavy machinery like construction equipment and mining gear, where its tapered roller design handles combined loads effortlessly. The imperial sizing makes it a straightforward replacement for Timken equivalents in North American industrial settings.

In automotive applications, 42362-42585 Bearing works well in truck wheel hubs and differential systems, thanks to its robust chrome steel construction. The standard radial clearance offers reliable performance across various temperature conditions.

For agricultural machinery, 42362-42585 Bearing’s single-row design provides easy maintenance in tractors and harvesters. Its steel cage ensures durability even when dealing with dusty or high-vibration environments.

What Makes 42362-42585 Bearing a Preferred Choice?
The 42362-42585 Bearing stands out in conveyor systems where consistent radial and thrust load capacity is needed. Its ABEC-1 rating balances precision with cost-effectiveness for general industrial use.

You’ll appreciate how 42362-42585 Bearing simplifies inventory management, being interchangeable with Timken’s 42000 series. The open design allows for straightforward lubrication in railway and marine applications.

Built for Heavy-Duty Use: 42362-42585 Bearing
When working with gearboxes or power transmission units, 42362-42585 Bearing’s dynamic radial load capacity handles rigorous operations. The chrome steel rollers maintain performance even in continuous-use scenarios.

Its 5.8437″ outer diameter makes 42362-42585 Bearing suitable for larger industrial fans and pulleys. The standard width tolerance ensures compatibility with existing housing designs.

Light-Duty vs Heavy-Duty: Best Uses for 42362-42585 Bearing
While 42362-42585 Bearing excels in mining equipment, it’s equally at home in lighter applications like industrial pumps. The tapered rollers adapt well to varying load demands across different RPM ranges.

For maintenance teams, 42362-42585 Bearing’s straightforward lubrication needs reduce downtime. The steel cage construction prevents premature wear in both intermittent and continuous operation cycles.
