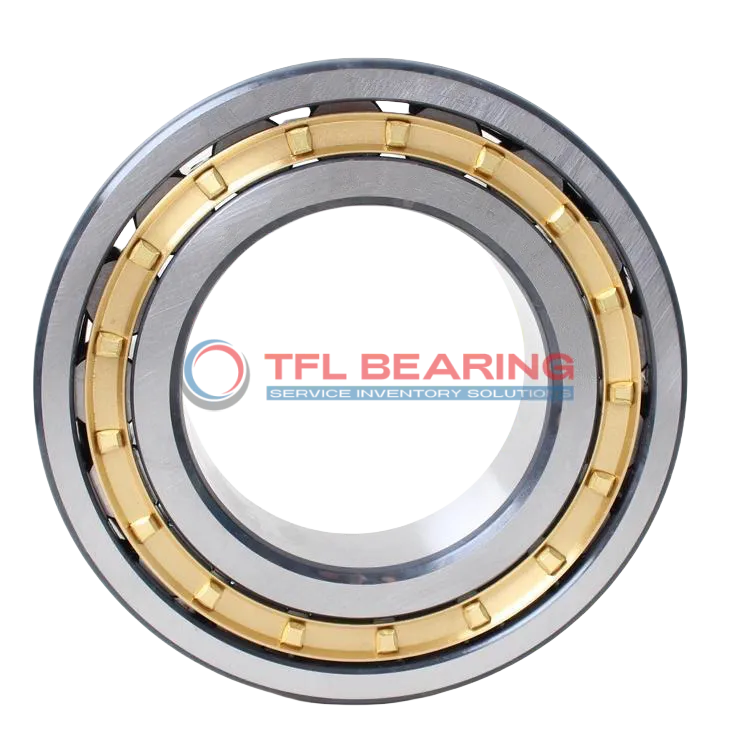

Single Row Cylindrical Roller Bearings With Inner Ring CRL 24 A

Single Row Cylindrical Roller Bearings With Inner Ring CRL 24 A

The CRL 24 A is a single-row cylindrical roller bearing with a 3″ bore and 5.75″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 32625 lbf and runs smoothly at speeds up to 6000 RPM.

Its brass cage keeps rollers centred for even load distribution, while the open design allows easy lubrication with grease or oil. The bearing performs reliably in temperatures from -30°C to 110°C.

With precise tolerances and a 1.0625″ width, it fits snugly in demanding setups. Ideal for industrial machinery or heavy equipment where radial and axial loads are present.

Weighing 1.9kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRL 24 A
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 3"
  • Bore Dia Tolerance +0.0002" to -0.0003"
  • Outer Dia 5.75"
  • Outer Dia Tolerance -0.0013" to -0.0018"
  • Width 1.0625"
  • Width Tolerance -0.005" to 0
  • Shoulder Dia Of Inner Ring 0.155"
  • Raceway Diameter Of Outer Ring(E) 5.0787"
  • Chamfer Dimension r1,2(min.) 0.0945"
  • Chamfer Dimension r3,4(min.) 0.0945"
  • Permissible Axial Displacement(max.) 0.0787"
  • System of Measurement Inch
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 32625 lbf
  • Static Radial Load 36675 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 1.9 kg
Single Row Cylindrical Roller Bearings With Inner Ring CRL 24 A dimension drawing
Download DWG Download PDF

Features

Performance Features of CRL 24 A Bearing

CRL 24 A Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 32,625 lbf, ensuring reliable performance in demanding conditions.

The brass cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 6,000 rpm, it balances durability and efficiency for various applications.

CRL 24 A Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

Application

Industrial Uses of CRL 24 A Bearing
CRL 24 A Bearing is commonly used in heavy machinery, such as conveyor systems and industrial gearboxes, where its cylindrical roller design handles combined loads efficiently. The brass cage ensures smooth operation even at high speeds.

In automotive applications, CRL 24 A Bearing fits well in transmissions and drivetrains, providing reliable performance under radial and axial stresses. Its inch sizing makes it a good match for American-made vehicles.

For automation equipment, CRL 24 A Bearing’s open design allows easy lubrication, which is essential for maintaining performance in robotic arms. The chrome steel construction offers durability in continuous operation.

CRL 24 A Bearing also works in agricultural machinery, like harvesters, where its high load capacity and temperature resistance are beneficial. The grease or oil lubrication options add versatility for different working conditions.
