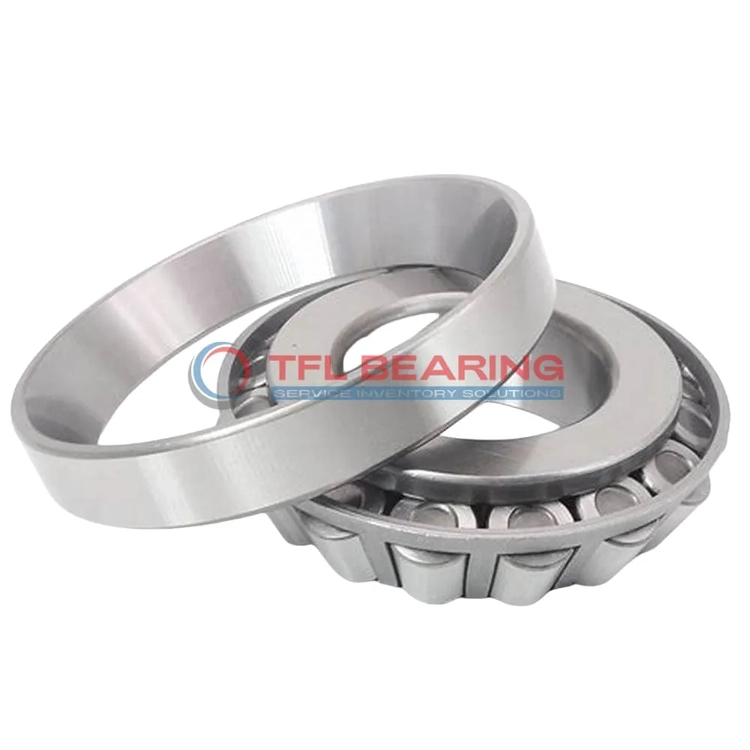

TS (Single Row Tapered Roller Bearings) (Imperial) 39582A-39528

TS (Single Row Tapered Roller Bearings) (Imperial) 39582A-39528

The 39582A-39528 is a single-row tapered roller bearing with a 2.36″ bore and 4.72″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 37,500 lbf and is designed for long-lasting performance.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for industrial machinery or automotive applications where combined loads are common.

Weighing 3.7 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 39582A-39528
  • Brand TFL
  • Interchangeable Timken
  • Size 2.3622" x 4.7238" x 1.2895"
  • Bore Dia 2.3622"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.7238"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.061"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2895"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.76"
  • Cone Backface Backing Diameter 2.8"
  • Cup Frontface Backing Diameter 4.35"
  • Cup Backface Backing Diameter 4.21"
  • Cage Cone Frontface Clearance 0.13"
  • Cage Cone Backface Clearance 0.05"
  • Effective Center Location -0.26"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 39582A
  • Cup Part Number 39528
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 39500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 37500 lbf
  • Static Radial Load 50300 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 9730 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5650 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.7 lb

Features

Performance Features of 39582A-39528 Bearing

39582A-39528 Bearing is crafted with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 37,500 lbf, ensuring dependable performance in tough conditions.

The steel cage maintains roller alignment, reducing friction and enhancing longevity.
With a temperature range of -30° to 110°C, it adapts well to various operating environments.

39582A-39528 Bearing’s standard radial clearance provides flexibility for different applications.
Its ABEC-1 rating ensures consistent precision and smooth operation.

Application

Industrial Uses of 39582A-39528 Bearing
39582A-39528 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability in rugged environments.

In automotive applications, 39582A-39528 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a straightforward replacement for Timken equivalents in older vehicles.

For industrial conveyor systems, 39582A-39528 Bearing’s open design simplifies lubrication and maintenance. The steel cage adds strength, making it suitable for high-load scenarios.

Where Is 39582A-39528 Bearing Used?
You’ll often find 39582A-39528 Bearing in mining equipment, where its robust design withstands harsh conditions. The tapered rollers distribute loads evenly, reducing wear over time.

In manufacturing plants, 39582A-39528 Bearing supports machinery like presses and rollers. Its standard radial clearance ensures smooth operation without frequent adjustments.

Built for Heavy-Duty Use: 39582A-39528 Bearing
39582A-39528 Bearing excels in forestry machinery, handling both radial and thrust loads with ease. The chrome steel rollers resist deformation under heavy stress.

For railway applications, 39582A-39528 Bearing’s durability makes it ideal for axle boxes. Its temperature range ensures performance in varying climates.

Automotive vs Aerospace: Applications of 39582A-39528 Bearing
In automotive settings, 39582A-39528 Bearing is trusted for drivetrain components due to its load capacity. The ABEC-1 rating balances precision and cost-effectiveness.

For aerospace ground equipment, 39582A-39528 Bearing provides reliable support in landing gear systems. Its steel cage and chrome steel rollers meet rigorous industry standards.
