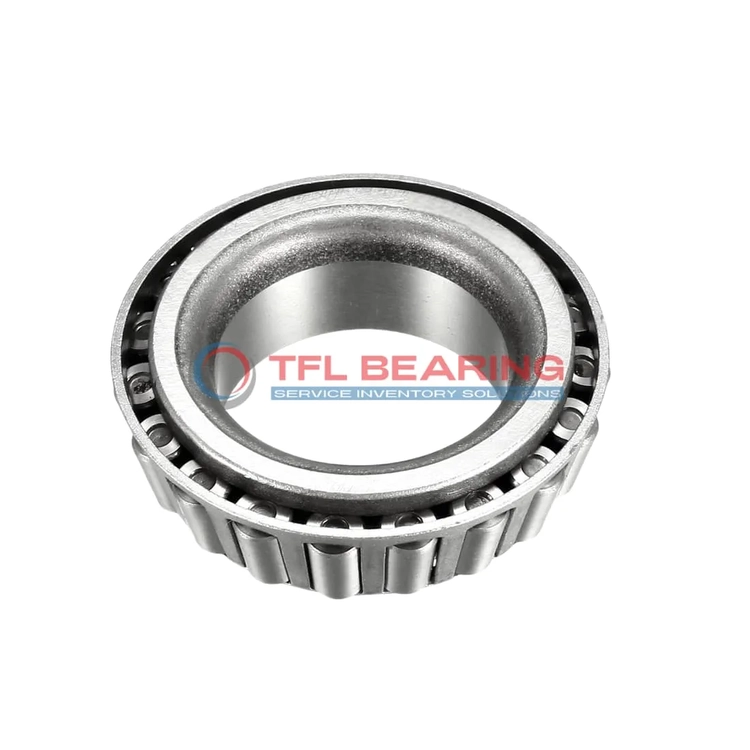

TS (Single Row Tapered Roller Bearings) (Imperial) 37425-37625RB

TS (Single Row Tapered Roller Bearings) (Imperial) 37425-37625RB

The 37425-37625RB is a single-row tapered roller bearing with a 4.25″ bore and 6.25″ outer diameter, crafted from sturdy chrome steel. It handles combined loads, supporting up to 30700 lbf dynamically and 40100 lbf statically.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like truck axles or industrial gearboxes where combined loads are common.

Weighing 3.1 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 37425-37625RB
  • Brand TFL
  • Interchangeable Timken
  • Size 4.25" x 6.25" x 0.9063"
  • Bore Dia 4.25"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 6.25"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.844"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.9063"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 5.32"
  • Cone Backface Backing Diameter 4.8"
  • Cup Frontface Backing Diameter 6.00"
  • Cup Backface Backing Diameter 5.63"
  • Cage Cone Frontface Clearance 0.15"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location 0.54"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 37425
  • Cup Part Number 37625RB
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 37000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 30700 lbf
  • Static Radial Load 40100 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 7960 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.1 lb

Features

Performance Features of 37425-37625RB Bearing

37425-37625RB Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 30,700 lbf, ensuring reliable performance in heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

37425-37625RB Bearing’s standard radial clearance allows for smooth operation and easy installation.
Its ABEC-1 rating ensures consistent precision for industrial applications.

Application

Industrial Uses of 37425-37625RB Bearing
37425-37625RB Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. The chrome steel construction ensures durability even in tough working conditions.

Where Is 37425-37625RB Bearing Used?
You’ll often find 37425-37625RB Bearing in automotive applications, particularly in wheel hubs and differential systems. Its precise imperial sizing makes it a reliable choice for older or custom vehicle designs.

Built for Heavy-Duty Use: 37425-37625RB Bearing
37425-37625RB Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication and maintenance. The steel cage adds extra strength, making it suitable for high-load scenarios.

Automotive vs Aerospace: Applications of 37425-37625RB Bearing
In automotive settings, 37425-37625RB Bearing supports axles and transmissions, while in aerospace, it’s used in auxiliary systems requiring robust performance. The ABEC-1 rating ensures consistent reliability across both fields.

Perfect Fit for Automation: 37425-37625RB Bearing
37425-37625RB Bearing works well in conveyor systems and robotic arms, where its tapered rollers provide smooth motion under varying loads. The standard radial clearance offers flexibility for different automation needs.
