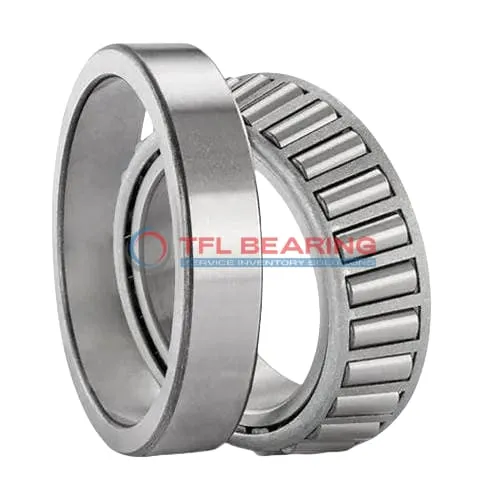

TS (Single Row Tapered Roller Bearings) (Imperial) 367-362AC

TS (Single Row Tapered Roller Bearings) (Imperial) 367-362AC

The 367-362AC is a single-row tapered roller bearing with a 1.7717″ bore and 3.7402″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 22900 lbf radially and 3250 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 1.500 lb, it balances strength and manageability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 367-362AC
  • Brand TFL
  • Interchangeable Timken
  • Size 1.7717" x 3.7402" x 0.8125"
  • Bore Dia 1.7717"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.7402"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6501"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8125"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.050"
  • Cone Frontface Backing Diameter 2.01"
  • Cone Backface Backing Diameter 2.17"
  • Cup Frontface Backing Diameter 3.66"
  • Cup Backface Backing Diameter 3.31"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.17"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 367
  • Cup Part Number 362AC
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 365
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22900 lbf
  • Static Radial Load 21500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5930 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3250 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.500 lb

Features

How Is 367-362AC Bearing Engineered for Reliability?

367-362AC Bearing features chrome steel rings and rollers, providing strong resistance to combined loads.
Its dynamic radial load capacity reaches 22,900 lbf, ensuring reliable performance in demanding applications.
The steel cage keeps the rollers aligned, reducing wear and extending service life.
With a temperature range of -30° to 110°C, it performs well in various operating conditions.

Why Choose 367-362AC Bearing for Precision Tasks?

367-362AC Bearing is designed with precise tolerances, ensuring accurate performance in combined load scenarios.
The tapered roller design distributes loads evenly, enhancing stability and reducing friction.
Its standard radial clearance allows for smooth operation in various applications.
The ABEC-1 rating confirms its suitability for precision engineering tasks.

Built for Durability: 367-362AC Bearing

367-362AC Bearing’s chrome steel construction offers excellent resistance to wear and fatigue.
The single-row design simplifies installation while maintaining high load capacity.
With a static radial load rating of 21,500 lbf, it handles heavy-duty applications with ease.
Its open seal type allows for easy lubrication, ensuring long-term performance.

Application

Industrial Uses of 367-362AC Bearing
The 367-362AC Bearing is widely used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

Where Is 367-362AC Bearing Used?
You’ll often find 367-362AC Bearing in automotive applications like wheel hubs and differentials, thanks to its ability to manage both radial and thrust loads. The inch sizing makes it a good fit for North American vehicle models.

Built for Heavy-Duty Use: 367-362AC Bearing
367-362AC Bearing excels in industrial settings like conveyor systems, where its steel cage and open design allow for easy lubrication. The standard radial clearance ensures smooth operation under varying loads.

Automotive vs Aerospace: Applications of 367-362AC Bearing
In automotive systems, 367-362AC Bearing supports high-load components like axles, while its precision makes it suitable for aerospace landing gear. The ABEC-1 rating balances performance and cost for diverse needs.

Perfect Fit for Automation: 367-362AC Bearing
367-362AC Bearing is a reliable choice for automated machinery, such as robotic arms, where consistent performance is key. Its temperature range of -30° to 110°C ensures stability in various operating conditions.
