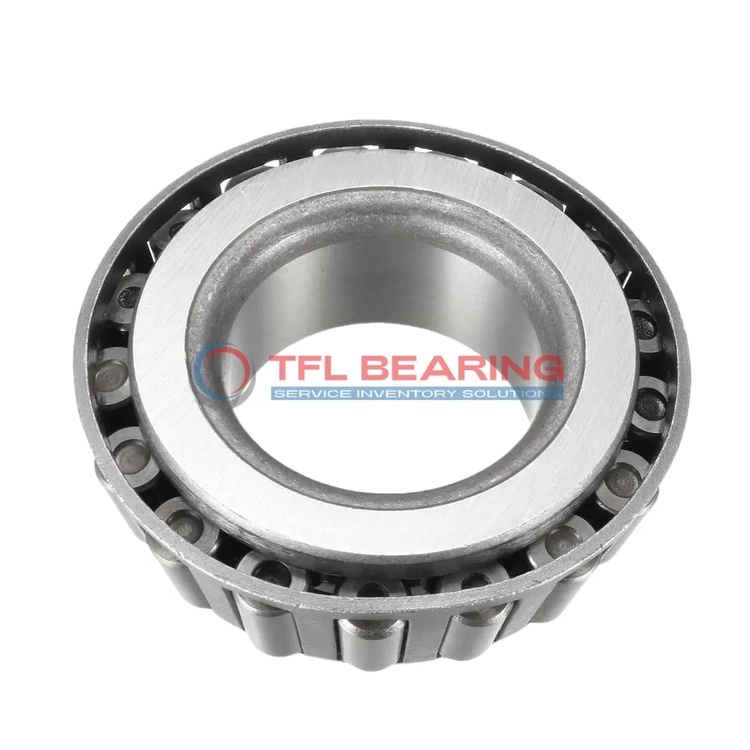

TS (Single Row Tapered Roller Bearings) (Imperial) 95491-95912

TS (Single Row Tapered Roller Bearings) (Imperial) 95491-95912

The 95491-95912 is a single-row tapered roller bearing with a 4.919″ bore and 9.125″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 141,000 lbf radially and 23,200 lbf thrust, making it a robust choice for heavy-duty applications.

Its open design and steel cage ensure durability, while the tapered rollers provide smooth operation under stress. The bearing operates efficiently in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or any setting requiring high load capacity.

Weighing 25.3 lb, it’s built for strength and longevity. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for various engineering needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 95491-95912
  • Brand TFL
  • Interchangeable Timken
  • Size 4.919" x 9.125" x 2.5"
  • Bore Dia 4.919"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 9.125"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 2.5"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.9375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.5"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.25"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 6.46"
  • Cone Backface Backing Diameter 5.98"
  • Cup Frontface Backing Diameter 8.58"
  • Cup Backface Backing Diameter 8.15"
  • Cage Cone Frontface Clearance 0.19"
  • Cage Cone Backface Clearance 0.22"
  • Effective Center Location -0.55"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 95491
  • Cup Part Number 95912
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 95000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 141000 lbf
  • Static Radial Load 209000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 36700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 23200 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 25.3 lb

Features

Performance Features of 95491-95912 Bearing

95491-95912 Bearing is constructed with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 141,000 lbf, making it suitable for heavy-duty applications.

The steel cage ensures proper roller alignment, reducing friction and enhancing durability.
With a standard radial clearance option, it provides flexibility for various operational needs.

95491-95912 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its tapered roller design ensures reliable performance under both radial and thrust loads.

The open seal type allows for easy lubrication, maintaining smooth operation.
Weighing 25.3 lb, it balances strength and practicality in industrial settings.

Application

Industrial Uses of 95491-95912 Bearing
This bearing is commonly used in heavy machinery like mining equipment and construction vehicles, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in tough working conditions.

In automotive applications, 95491-95912 Bearing fits well in truck wheel hubs and differential systems, providing reliable performance under high loads. Its imperial sizing makes it a straightforward replacement for Timken equivalents in North American vehicles.

For industrial gearboxes, 95491-95912 Bearing’s open design allows for easy lubrication, extending service life in continuous operation. The steel cage adds stability, making it suitable for high-speed scenarios.

Where Is 95491-95912 Bearing Used?
You’ll often find this bearing in agricultural machinery, such as tractors and harvesters, where its robust design withstands dusty environments. The standard radial clearance offers flexibility for various load requirements.

In conveyor systems, 95491-95912 Bearing’s tapered rollers ensure smooth movement under heavy loads. Its compatibility with ABEC-1 standards makes it a cost-effective choice for general industrial use.

Built for Heavy-Duty Use: 95491-95912 Bearing
This bearing excels in forestry equipment like log skidders, where its high dynamic radial load capacity is essential. The inch measurements simplify installation in older machinery still using imperial units.

For railway applications, 95491-95912 Bearing’s temperature range (-30° to 110°C) ensures reliability in varying climates. The steel cage and chrome steel rollers provide long-term wear resistance.

Light-Duty vs Heavy-Duty: Best Uses for 95491-95912 Bearing
In lighter applications like farm equipment, this bearing offers a balance of strength and affordability. For heavy-duty uses like oil rig machinery, its 209,000 lbf static load rating ensures dependable performance.

The bearing’s versatility also makes it suitable for wind turbine yaw systems, where consistent operation is critical. Its compliance with RoHS and REACH standards adds an extra layer of reliability for environmentally conscious projects.
