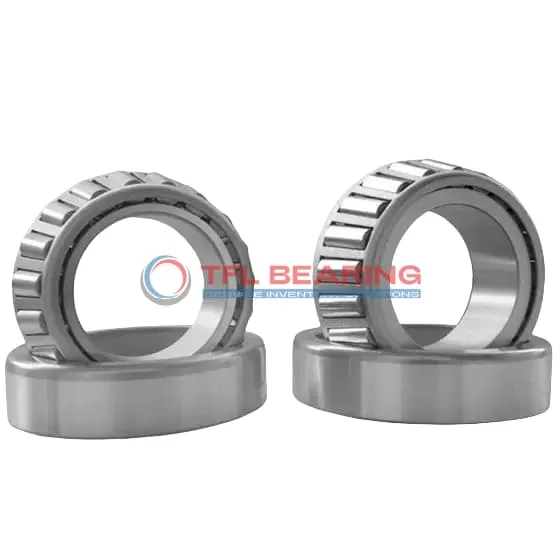

TS (Single Row Tapered Roller Bearings) (Imperial) 36690P-36620

TS (Single Row Tapered Roller Bearings) (Imperial) 36690P-36620

The 36690P-36620 is a single-row tapered roller bearing with a 5.75″ bore and 7.625″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 52300 lbf radially and 8560 lbf thrust, making it a robust choice for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in industrial machinery, automotive systems, or construction equipment where combined loads are common.

Weighing 5 lb, it’s built to last with standard radial clearance and complies with RoHS and REACH standards for safe usage.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 36690P-36620
  • Brand TFL
  • Interchangeable Timken
  • Size 5.75" x 7.625" x 1.1249"
  • Bore Dia 5.75"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 7.625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9063"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.1249"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 6.89"
  • Cone Backface Backing Diameter 6.14"
  • Cup Frontface Backing Diameter 7.41"
  • Cup Backface Backing Diameter 7.17"
  • Cage Cone Frontface Clearance 0.13"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location 0.19"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 36690P
  • Cup Part Number 36620
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 36600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 52300 lbf
  • Static Radial Load 88600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 13600 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8560 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5 lb

Features

Performance Features of 36690P-36620 Bearing

36690P-36620 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 52,300 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environments.

How Is 36690P-36620 Bearing Engineered for Reliability?

36690P-36620 Bearing features a single-row tapered roller design, optimised for combined load handling.
The chrome steel construction enhances durability, while the open seal type allows for easy lubrication.
Its static radial load capacity of 88,600 lbf ensures stability under high stress.
The standard radial clearance provides flexibility for different application needs.

Built for Durability: 36690P-36620 Bearing

36690P-36620 Bearing’s tapered roller design ensures efficient load distribution, minimising wear.
The steel cage and chrome steel rollers work together to reduce friction and noise.
With an ABEC-1 rating, it balances precision and cost-effectiveness.
Its wide temperature range makes it suitable for diverse industrial uses.

Steel vs Ceramic Bearings: Strengths of 36690P-36620 Bearing

36690P-36620 Bearing uses chrome steel for both rings and rollers, providing excellent strength and durability.
The material choice ensures reliable performance under high dynamic and static loads.
Its standard radial clearance allows for easy installation and maintenance.
The bearing’s design focuses on longevity, reducing the need for frequent replacements.

Application

Industrial Uses of 36690P-36620 Bearing
The 36690P-36620 Bearing is commonly used in heavy machinery, such as construction equipment and mining gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 36690P-36620 Bearing Used?
You’ll often find 36690P-36620 Bearing in agricultural machinery, supporting components like gearboxes and axles. Its inch sizing makes it a reliable choice for North American equipment manufacturers.

Built for Heavy-Duty Use: 36690P-36620 Bearing
36690P-36620 Bearing excels in industrial fans and pumps, where its open design allows for easy lubrication. The steel cage adds stability, making it suitable for high-load applications.

Automotive vs Aerospace: Applications of 36690P-36620 Bearing
In automotive systems, 36690P-36620 Bearing supports wheel hubs and transmissions, while in aerospace, it’s used in auxiliary gearboxes. Its ABEC-1 rating ensures consistent performance across both sectors.

Essential Roles of 36690P-36620 Bearing
36690P-36620 Bearing is a go-to for conveyor systems in manufacturing plants, thanks to its high dynamic radial load capacity. The standard radial clearance option makes it versatile for various setups.
