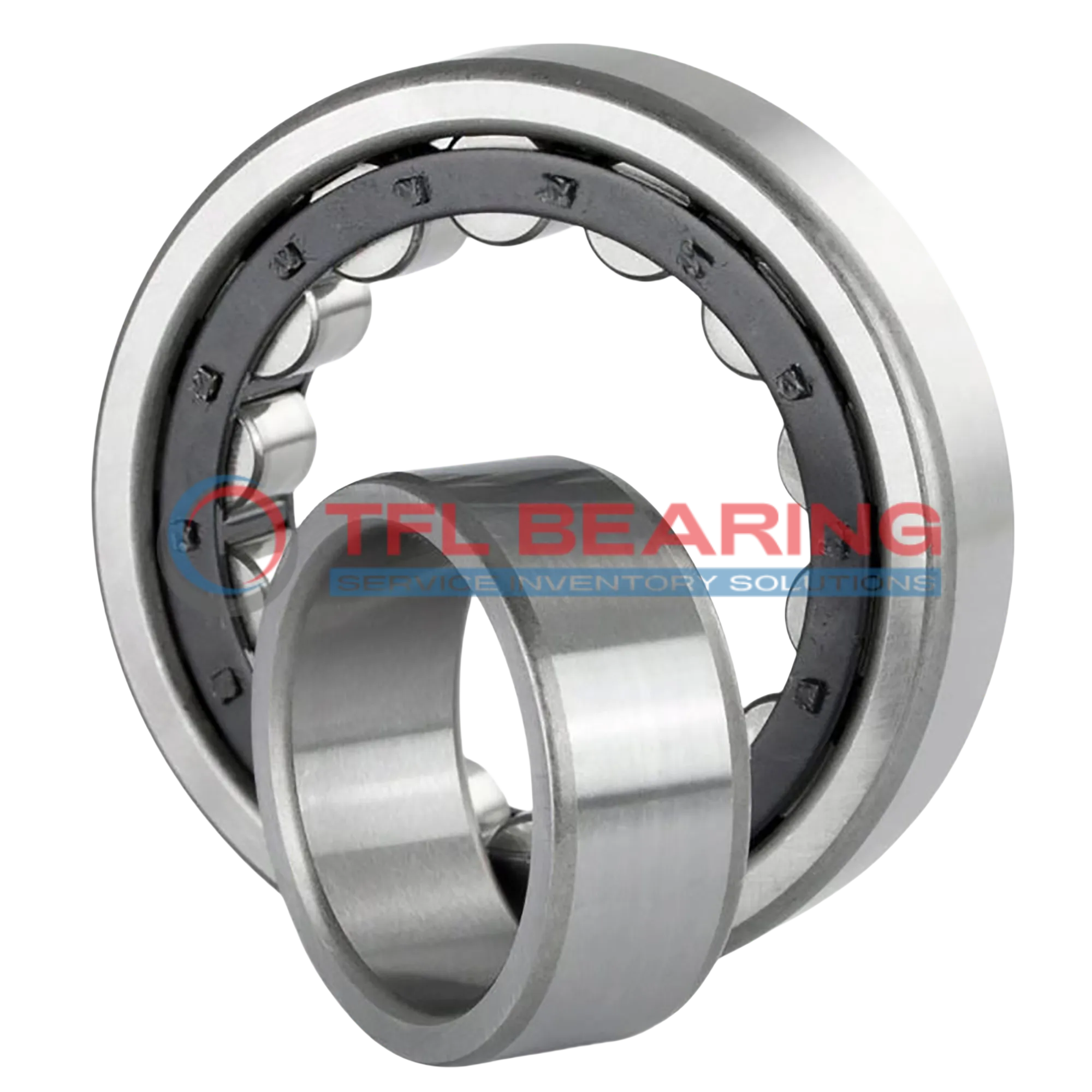

Single Row Cylindrical Roller Bearings With Inner Ring NU 2213 ECP

Single Row Cylindrical Roller Bearings With Inner Ring NU 2213 ECP

The NU 2213 ECP is a single row cylindrical roller bearing with a 65mm bore and 120mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 38250 lbf and runs smoothly at speeds up to 7000 RPM.

Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures smooth operation. The bearing performs well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or industrial gearboxes where radial and axial loads are present.

Weighing 1.42kg, it offers a robust yet manageable size for various machinery needs. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 2213 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.15mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 31 mm
  • Width Tolerance -0.15mm to 0
  • Chamfer Dimension r1,2(min.) 1.5 mm
  • Chamfer Dimension r3,4(min.) 1.5 mm
  • Permissible Axial Displacement(max.) 1.9 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 38250 lbf
  • Static Radial Load 40500 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7000 rpm
  • Weight 1.42 kg
  • Shoulder Dia Of Outer Ring 103.2 mm
  • Raceway Diameter Of Inner Ring 78.5 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 2213 ECP dimension drawing
Download DWG Download PDF

Features

Performance Features of NU 2213 ECP Bearing

NU 2213 ECP Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 38,250 lbf, making it suitable for heavy-duty applications.

The PA66 cage keeps the rollers centred, ensuring smooth operation and reduced wear.
With a maximum speed of 7,000 rpm, it delivers reliable performance in various conditions.

NU 2213 ECP Bearing operates efficiently in temperatures from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, extending service life.

Application

Industrial Uses of NU 2213 ECP Bearing
NU 2213 ECP Bearing is commonly used in heavy machinery like industrial gearboxes and electric motors, where its cylindrical roller design handles both radial and axial loads efficiently. The open seal type allows for easy lubrication, making it suitable for high-speed applications up to 7000 rpm.

Where Is NU 2213 ECP Bearing Used?
In automotive transmissions, NU 2213 ECP Bearing provides reliable support for rotating shafts, thanks to its chrome steel construction and PA66 cage. Its metric dimensions ensure compatibility with a wide range of European and Asian vehicle designs.

Built for Heavy-Duty Use: NU 2213 ECP Bearing
NU 2213 ECP Bearing excels in conveyor systems and mining equipment, where its high dynamic radial load capacity (38250 lbf) ensures long-lasting performance. The temperature range of -30° to 110 °C makes it adaptable to various working environments.

Automotive vs Aerospace: Applications of NU 2213 ECP Bearing
NU 2213 ECP Bearing is a go-to choice for automotive drivetrains, offering durability under combined loads. While not typically used in aerospace, its precision and speed capabilities make it ideal for industrial pumps and compressors.

Perfect Fit for Automation: NU 2213 ECP Bearing
NU 2213 ECP Bearing is often found in robotic arms and automated assembly lines, where its smooth operation and low maintenance requirements are highly valued. The grease or oil lubrication options provide flexibility for different operational needs.
