TS (Single Row Tapered Roller Bearings) (Imperial) 34275-34500

TS (Single Row Tapered Roller Bearings) (Imperial) 34275-34500

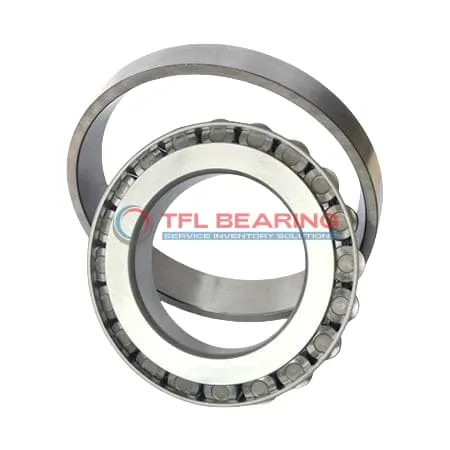

The 34275-34500 is a single-row tapered roller bearing with a 2.76″ bore and 5″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 23000 lbf radially and 4600 lbf thrust, suitable for moderate-speed applications.

Its open design simplifies lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable alternative for replacements. Ideal for use in gearboxes, axles, or industrial equipment where combined loads are present.

Weighing 2.9 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

The standard radial clearance (with options for C3/C4/C5) allows flexibility in different setups. Its ABEC-1 rating ensures dependable performance for general industrial use.

Easy to maintain and install, this bearing is a practical choice for both new builds and repairs. Its tapered roller design efficiently handles radial and thrust loads in one compact unit.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 34275-34500
  • Brand TFL
  • Interchangeable Timken
  • Size 2.7559" x 5" x 1.0625"
  • Bore Dia 2.7559"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.906"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.7812"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0625"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.080"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.74"
  • Cone Backface Backing Diameter 3.23"
  • Cup Frontface Backing Diameter 4.67"
  • Cup Backface Backing Diameter 4.41"
  • Cage Cone Frontface Clearance 0.1"
  • Cage Cone Backface Clearance 0.09"
  • Effective Center Location 0.06"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 34275
  • Cup Part Number 34500
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 34000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 23000 lbf
  • Static Radial Load 30600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5960 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 4600 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.9 lb

Features

How Is 34275-34500 Bearing Engineered for Reliability?

34275-34500 Bearing features chrome steel rings and rollers, ensuring strong resistance to combined loads.
Its dynamic radial load capacity reaches 23,000 lbf, making it suitable for demanding industrial applications.

The tapered roller design distributes loads evenly, reducing stress and extending service life.
With a standard radial clearance, it offers reliable performance across various operating conditions.

34275-34500 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage maintains roller alignment, ensuring smooth operation even under heavy loads.

Designed for easy lubrication, 34275-34500 Bearing simplifies maintenance and reduces downtime.
The open seal type allows for straightforward inspection and re-lubrication when needed.

Application

Industrial Uses of 34275-34500 Bearing
The 34275-34500 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability in demanding environments.

Where Is 34275-34500 Bearing Used?
You’ll often find the 34275-34500 Bearing in automotive applications like truck wheel hubs, where its robust design supports both radial and thrust loads. The inch sizing makes it a good fit for North American vehicles.

Built for Heavy-Duty Use: 34275-34500 Bearing
This bearing excels in industrial settings like conveyor systems, thanks to its high dynamic load capacity. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 34275-34500 Bearing
In automotive uses, the 34275-34500 Bearing is ideal for axles and transmissions, while its precision also suits aerospace landing gear components. The steel cage adds reliability in high-stress conditions.

Key Fields for 34275-34500 Bearing
The 34275-34500 Bearing is a go-to choice for mining equipment, where its tapered rollers manage heavy radial and axial loads. Its standard radial clearance ensures smooth operation in varied temperatures.
