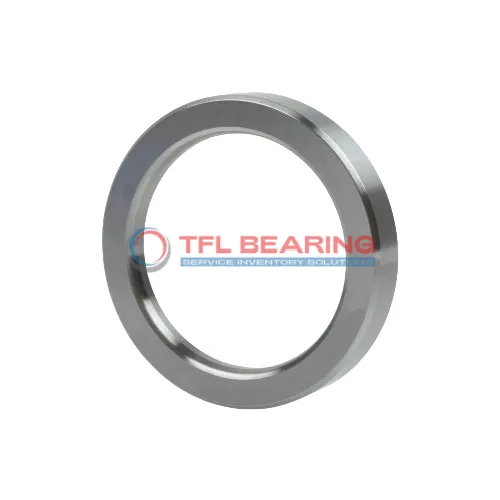

Angle Rings For Cylindrical Roller Bearings HJ 1056

Angle Rings For Cylindrical Roller Bearings HJ 1056

The HJ 1056 angle ring is designed for cylindrical roller bearings, with a 280mm bore and 329.05mm outer diameter. Made from sturdy chrome steel, it fits snugly and handles temperatures from -30°C to 110°C.
Its 16mm width on the inner ring side ensures a secure fit, while the 31.5mm overall width provides stability. The 4mm chamfer length helps with easy installation and alignment.
This angle ring is interchangeable with SKF models, making it a practical choice for replacements. Ideal for heavy-duty machinery where precise alignment and durability are key.
Weighing 3.62kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HJ 1056
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 280 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 329.05 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width Contacting Inner Ring Side Face 16 mm
  • Width 31.5 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Length Radial Direction (Angle Rings)(r3,4)(min.) 4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Temperature Range -30° to 110 °C
  • Material Chrome Steel
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.62 kg
Angle Rings For Cylindrical Roller Bearings HJ 1056 dimension drawing
Download DWG Download PDF

Features

Performance Features of HJ 1056 Angle Rings
HJ 1056 Angle Rings are crafted from chrome steel, offering durability and resistance to wear in cylindrical roller bearings.
The precise bore diameter of 280 mm ensures a secure fit, while the outer diameter of 329.05 mm provides stability.
With a width of 31.5 mm, HJ 1056 Angle Rings maintain proper alignment under load, reducing operational stress.
The temperature range of -30° to 110 °C allows reliable performance in varied working conditions.
HJ 1056 Angle Rings feature a chamfer length of 4 mm, facilitating smoother installation and reducing edge wear.
Their compliance with RoHS and REACH standards ensures environmental and safety adherence.

Application

Essential Roles of HJ 1056 Bearing
HJ 1056 Bearing is commonly used in industrial machinery, especially in heavy-duty applications like large conveyor systems and presses. Its robust chrome steel construction ensures reliable performance under significant radial loads.

In automotive manufacturing, HJ 1056 Bearing supports assembly line equipment, where precision and durability are key. The metric dimensions make it a versatile choice for various machinery types.

For wind turbines, HJ 1056 Bearing’s ability to handle high loads and harsh conditions makes it a dependable component. Its wide temperature range also suits outdoor and extreme environments.

In mining equipment, HJ 1056 Bearing’s sturdy design helps withstand the demanding conditions of extraction machinery. The easy maintenance and long service life add to its practicality.
