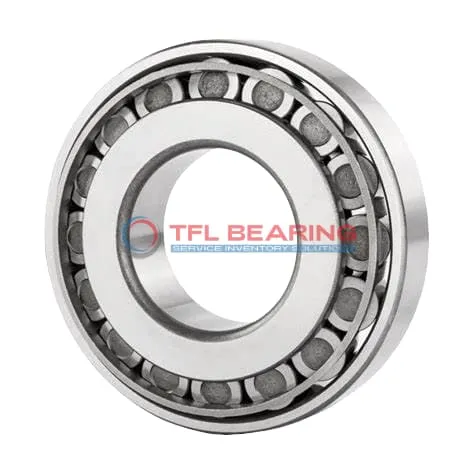

TS (Single Row Tapered Roller Bearings) (Imperial) 2984A-2925

TS (Single Row Tapered Roller Bearings) (Imperial) 2984A-2925

The 2984A-2925 is a single-row tapered roller bearing with a 1.8125″ bore and 3.4375″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 21000 lbf radially and 3220 lbf thrust, making it versatile for various applications.

Its open design simplifies lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 1.5 lb, it balances strength and manageability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

The standard radial clearance and ABEC-1 rating provide consistent performance. Its tapered roller design efficiently distributes loads, enhancing longevity in high-stress applications.

Perfect for industrial equipment or vehicle components needing robust load-bearing capacity. The precise tolerances ensure a secure fit, reducing maintenance needs over time.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2984A-2925
  • Brand TFL
  • Interchangeable Timken
  • Size 1.8125" x 3.4375" x 1.0626"
  • Bore Dia 1.8125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.4375"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.0082"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0626"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.090"
  • Cone Frontface Backing Diameter 2.05"
  • Cone Backface Backing Diameter 2.09"
  • Cup Frontface Backing Diameter 3.23"
  • Cup Backface Backing Diameter 2.95"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.05"
  • Effective Center Location -0.25"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2984A
  • Cup Part Number 2925
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2900
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 21000 lbf
  • Static Radial Load 26200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5440 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3220 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.500 lb

Features

Performance Features of 2984A-2925 Bearing

2984A-2925 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 21000 lbf, ensuring reliable performance in various applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

2984A-2925 Bearing’s standard radial clearance provides flexibility for different installation needs.
Its tapered roller design ensures smooth operation under both radial and thrust loads.

Application

Industrial Uses of 2984A-2925 Bearing
2984A-2925 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where combined radial and thrust loads are present. Its tapered roller design ensures reliable performance even under demanding conditions.

What Makes 2984A-2925 Bearing a Preferred Choice?
In automotive applications, 2984A-2925 Bearing fits well in wheel hubs and differential systems, thanks to its robust chrome steel construction. The inch sizing makes it compatible with many North American vehicle models.

Built for Heavy-Duty Use: 2984A-2925 Bearing
For industrial conveyor systems, 2984A-2925 Bearing handles high loads with ease, and its open design simplifies lubrication. The steel cage adds durability, making it suitable for continuous operation.

Automotive vs Industrial: Applications of 2984A-2925 Bearing
In automotive settings, 2984A-2925 Bearing supports drivetrain components, while in industrial settings, it excels in gearboxes and pulleys. Its versatility makes it a go-to choice for various heavy-load scenarios.
