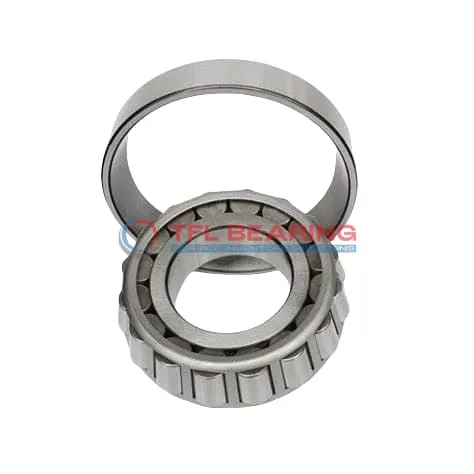

TS (Single Row Tapered Roller Bearings) (Imperial) 29665-29630

TS (Single Row Tapered Roller Bearings) (Imperial) 29665-29630

The 29665-29630 is a single-row tapered roller bearing with a 2.25″ bore and 4.75″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 24800 lbf radially and 5370 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or automotive systems where combined loads are common.

Weighing 3.1 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

The standard radial clearance can be adjusted to C3, C4, or C5 for specific needs. Its ABEC-1 rating ensures consistent performance for general industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29665-29630
  • Brand TFL
  • Interchangeable Timken
  • Size 2.25" x 4.75" x 1.0001"
  • Bore Dia 2.25"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.75"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.75"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0001"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 2.72"
  • Cone Backface Backing Diameter 2.95"
  • Cup Frontface Backing Diameter 4.49"
  • Cup Backface Backing Diameter 4.09"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location 0.04"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 29665
  • Cup Part Number 29630
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 29600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24800 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6440 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5370 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.1 lb

Features

Performance Features of 29665-29630 Bearing

29665-29630 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 24,800 lbf, making it suitable for heavy-duty applications.

The tapered roller design ensures effective load distribution, reducing stress on individual components.
With a standard radial clearance, it provides reliable performance in various operating conditions.

29665-29630 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
The steel cage maintains roller alignment, enhancing durability and reducing maintenance needs.

Application

Industrial Uses of 29665-29630 Bearing
The 29665-29630 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 29665-29630 Bearing fits well in wheel hubs and differential systems, providing reliable performance under radial and thrust loads. The inch sizing makes it compatible with many North American vehicle models.

For industrial conveyor systems, 29665-29630 Bearing’s open design allows for easy lubrication, extending service life in high-load scenarios. The steel cage adds extra strength, making it suitable for continuous operation.

Where Is 29665-29630 Bearing Used?
You’ll often find 29665-29630 Bearing in mining equipment, where its robust design handles harsh conditions. The tapered rollers distribute loads evenly, reducing wear over time.

In power transmission systems, 29665-29630 Bearing supports shafts and gears, ensuring smooth rotation. Its ABEC-1 rating provides a good balance of precision and affordability for general industrial use.

Built for Heavy-Duty Use: 29665-29630 Bearing
The 29665-29630 Bearing excels in applications like forklifts and cranes, where strength and reliability are key. Its standard radial clearance offers flexibility for various load conditions.

For railway maintenance vehicles, 29665-29630 Bearing’s combined load capacity makes it a practical choice. The steel cage and chrome steel rollers ensure long-lasting performance even under constant stress.

Automotive vs Aerospace: Applications of 29665-29630 Bearing
In automotive settings, 29665-29630 Bearing is ideal for drivetrain components, offering a cost-effective solution for mass-produced vehicles. The inch measurements simplify replacements in older models.

For aerospace ground support equipment, 29665-29630 Bearing provides reliable performance without the need for high-precision tolerances. Its temperature range suits most outdoor working conditions.
