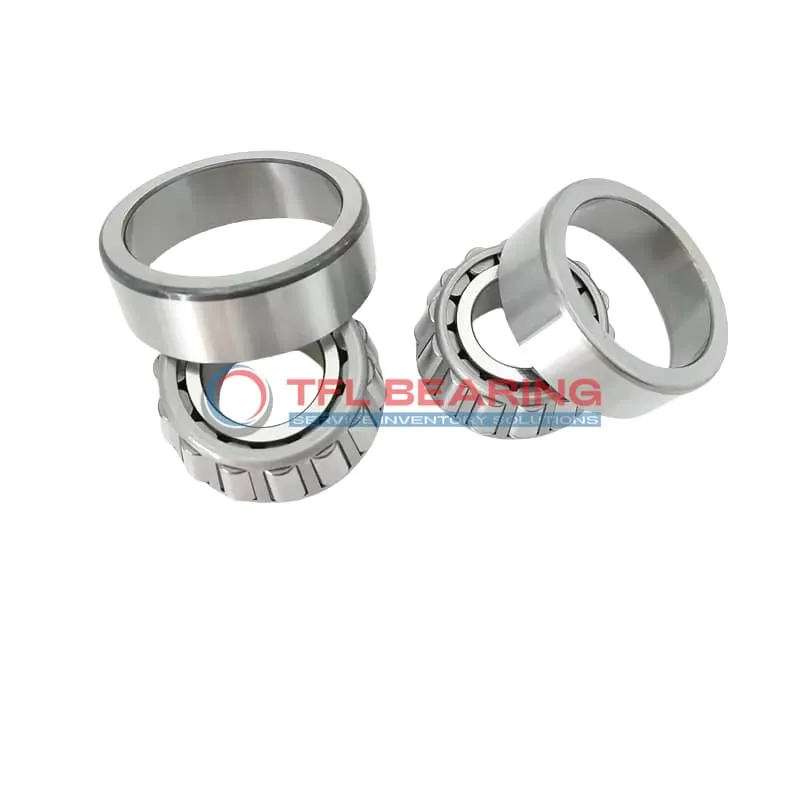

TS (Single Row Tapered Roller Bearings) (Imperial) 28156-28317

TS (Single Row Tapered Roller Bearings) (Imperial) 28156-28317

The 28156-28317 is a single-row tapered roller bearing with a 1.574″ bore and 3.151″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 16900 lbf radially and 3020 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for gearboxes, axles, or industrial machinery where combined loads are present.

Weighing just 1 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 28156-28317
  • Brand TFL
  • Interchangeable Timken
  • Size 1.574" x 3.151" x 0.793"
  • Bore Dia 1.574"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.151"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.7736"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.625"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.793"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.09"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.77"
  • Cone Backface Backing Diameter 1.93"
  • Cup Frontface Backing Diameter 2.91"
  • Cup Backface Backing Diameter 2.72"
  • Cage Cone Frontface Clearance 0.07"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.14"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 28156
  • Cup Part Number 28317
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 28000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 16900 lbf
  • Static Radial Load 15500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 4390 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3020 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1 lb

Features

Engineered for Precision: 28156-28317 Bearing

28156-28317 Bearing features a single row tapered roller design, ideal for handling combined loads with ease.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The bearing’s dynamic radial load capacity reaches 16,900 lbf, providing reliable performance under stress.
With a standard radial clearance, it offers flexibility for various industrial uses.

28156-28317 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage maintains roller alignment, reducing friction and extending service life.

Designed for easy lubrication, 28156-28317 Bearing simplifies maintenance routines.
The ABEC-1 rating ensures consistent performance for precision tasks.

Application

Industrial Uses of 28156-28317 Bearing
28156-28317 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 28156-28317 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a preferred choice for North American vehicle models.

For industrial conveyor systems, 28156-28317 Bearing’s open design allows for easy lubrication, extending service life in high-load scenarios. The steel cage adds stability during continuous operation.

What Makes 28156-28317 Bearing a Preferred Choice?
28156-28317 Bearing stands out in agricultural machinery due to its ability to withstand dirt and debris while maintaining performance. The standard radial clearance offers flexibility for different operating conditions.

In mining equipment, 28156-28317 Bearing’s robust design handles extreme loads and vibrations. The ABEC-1 rating ensures consistent precision even in rough environments.

Built for Heavy-Duty Use: 28156-28317 Bearing
28156-28317 Bearing is ideal for forestry machinery, where its tapered rollers manage uneven loads smoothly. The chrome steel rollers resist wear, reducing maintenance needs.

For railway applications, 28156-28317 Bearing provides reliable support in axle boxes. Its temperature range suits both cold and moderate climates, ensuring year-round performance.

Automotive vs Aerospace: Applications of 28156-28317 Bearing
In automotive drivetrains, 28156-28317 Bearing handles high torque efficiently. The inch measurements align with standard US automotive components.

For aerospace ground support equipment, 28156-28317 Bearing offers precision without the need for high-speed ratings. Its weight-to-load ratio makes it practical for mobile platforms.
