TS (Single Row Tapered Roller Bearings) (Imperial) 96900-96140

TS (Single Row Tapered Roller Bearings) (Imperial) 96900-96140

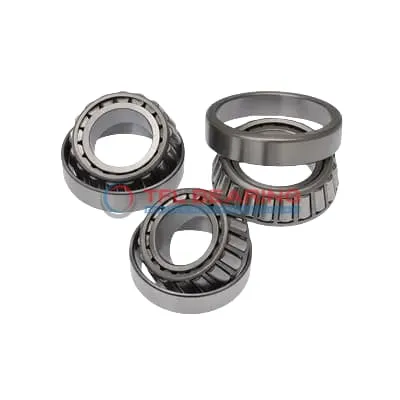

The 96900-96140 is a single-row tapered roller bearing with a 9″ bore and 14″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 171,000 lbf radially and 44,700 lbf thrust, making it a robust choice for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or construction equipment where heavy loads and durability are key.

Weighing 51.5 lb, it’s a solid, long-lasting component compliant with RoHS and REACH standards. The standard radial clearance and ABEC-1 rating make it versatile for various engineering needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 96900-96140
  • Brand TFL
  • Interchangeable Timken
  • Size 9" x 14" x 2.6875"
  • Bore Dia 9"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 14"
  • Outer Dia Tolerance +0.002" to 0
  • Cone Width 2.625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 2.6875"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.280"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 10.94"
  • Cone Backface Backing Diameter 10.24"
  • Cup Frontface Backing Diameter 13.16"
  • Cup Backface Backing Diameter 12.52"
  • Cage Cone Frontface Clearance 0.2"
  • Cage Cone Backface Clearance 0.43"
  • Effective Center Location 0.67"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 96900
  • Cup Part Number 96140
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 96000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 171000 lbf
  • Static Radial Load 319000 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 44200 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 44700 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 51.5 lb

Features

Why Choose 96900-96140 Bearing for Precision Tasks?

96900-96140 Bearing is crafted with chrome steel rings and rollers, ensuring high resistance to combined loads.
Its dynamic radial load capacity reaches 171,000 lbf, making it suitable for heavy-duty applications.

The steel cage maintains roller alignment, reducing friction and enhancing durability.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Designed for precision, 96900-96140 Bearing meets ABEC-1 standards for consistent performance.
Its standard radial clearance options allow flexibility for different operational needs.

Application

Industrial Uses of 96900-96140 Bearing
The 96900-96140 Bearing is commonly used in heavy machinery like construction equipment and mining rigs, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.
In automotive applications, 96900-96140 Bearing fits well in large truck axles and wheel hubs, providing reliable performance under heavy radial and thrust loads. The inch sizing makes it compatible with many North American vehicle designs.
For industrial gearboxes, 96900-96140 Bearing’s open design allows for easy lubrication, extending service life in high-speed operations. The steel cage adds stability during prolonged use.

Where Is 96900-96140 Bearing Used?
You’ll often find 96900-96140 Bearing in agricultural machinery like tractors and harvesters, where its robust design copes with uneven loads. The standard radial clearance offers flexibility for various operating conditions.
In material handling systems, 96900-96140 Bearing supports conveyor rollers, ensuring smooth movement of heavy loads. Its ABEC-1 rating provides sufficient precision for most industrial needs.

Built for Heavy-Duty Use: 96900-96140 Bearing
The 96900-96140 Bearing excels in railway applications, particularly in freight car axles where its high static load capacity is crucial. The tapered rollers distribute stress evenly across contact surfaces.
For wind turbine gearboxes, 96900-96140 Bearing’s temperature tolerance range (-30° to 110°C) makes it suitable for outdoor installations. Regular lubrication maintains optimal performance in these critical applications.

Automotive vs Aerospace: Applications of 96900-96140 Bearing
In automotive settings, 96900-96140 Bearing typically serves in heavy-duty truck differentials, handling both radial and thrust forces during operation. The inch measurements simplify replacement in existing systems.
For industrial presses, 96900-96140 Bearing provides the necessary load capacity for metal forming operations. Its steel cage withstands the high vibrations common in these machines.
