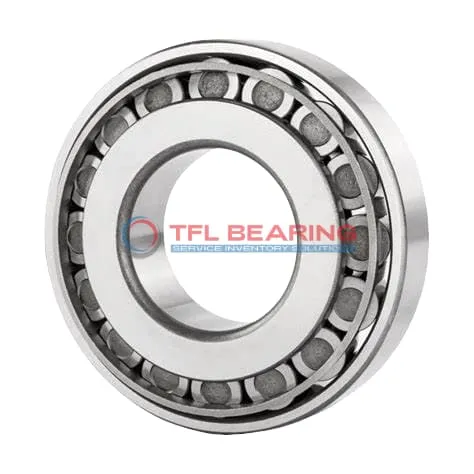

TS (Single Row Tapered Roller Bearings) (Imperial) 25592-25527

TS (Single Row Tapered Roller Bearings) (Imperial) 25592-25527

The 25592-25527 is a single-row tapered roller bearing with a 1.8125″ bore and 3.3465″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 20300 lbf radially and 3020 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C, suitable for demanding environments.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in gearboxes, wheel hubs, or industrial machinery where combined loads are common.

Weighing 1.4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for most industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 25592-25527
  • Brand TFL
  • Interchangeable Timken
  • Size 1.8125" x 3.3465" x 1.0626"
  • Bore Dia 1.8125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.3465"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0626"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.090"
  • Cone Frontface Backing Diameter 2.05"
  • Cone Backface Backing Diameter 2.28"
  • Cup Frontface Backing Diameter 3.11"
  • Cup Backface Backing Diameter 2.87"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.01"
  • Effective Center Location -0.25"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 25592
  • Cup Part Number 25527
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 25500
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 20300 lbf
  • Static Radial Load 24900 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 5270 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 3020 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.400 lb

Features

How Does 25592-25527 Bearing Handle Combined Loads?

25592-25527 Bearing is built with chrome steel rings and rollers, offering robust performance under combined radial and thrust loads.
Its dynamic radial load capacity reaches 20,300 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

What Makes 25592-25527 Bearing Suitable for High-Temperature Applications?

25592-25527 Bearing operates efficiently in temperatures from -30° to 110°C, maintaining performance in demanding environments.
The chrome steel construction resists wear, ensuring long service life even under heavy loads.
Its standard radial clearance options (C3/C4/C5) allow for flexibility in different applications.
The open design simplifies lubrication, keeping maintenance straightforward.

Engineered for Precision: 25592-25527 Bearing

25592-25527 Bearing features precise cone and cup dimensions, ensuring accurate alignment and smooth operation.
The tapered roller design distributes loads evenly, reducing stress on individual components.
With an ABEC-1 rating, it balances precision and cost-effectiveness for various industrial uses.
Its effective center location of -0.25″ enhances stability in mounted applications.

Application

Industrial Uses of 25592-25527 Bearing
25592-25527 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined radial and thrust loads effectively. The chrome steel construction ensures durability even in demanding environments.

In automotive applications, 25592-25527 Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. Its imperial sizing makes it a preferred choice for North American vehicle models.

For industrial conveyor systems, 25592-25527 Bearing’s open design allows for easy lubrication, extending service life in high-use scenarios. The steel cage adds extra strength, making it suitable for continuous operation.

Where Is 25592-25527 Bearing Used?
You’ll often find 25592-25527 Bearing in agricultural machinery, where its robust design handles dirt and debris without compromising performance. The standard radial clearance ensures smooth operation in varying conditions.

In mining equipment, 25592-25527 Bearing’s ability to withstand heavy loads makes it ideal for crushers and screens. The ABEC-1 rating provides a good balance of precision and cost-effectiveness for these applications.

Built for Heavy-Duty Use: 25592-25527 Bearing
25592-25527 Bearing excels in forestry equipment, where its tapered rollers manage uneven loads from logging operations. The chrome steel rollers resist wear, even in harsh outdoor conditions.

For railway applications, 25592-25527 Bearing’s combined load capacity makes it suitable for axle boxes. The imperial measurements ensure compatibility with older rail systems still using inch-based components.

Automotive vs Aerospace: Applications of 25592-25527 Bearing
In automotive settings, 25592-25527 Bearing is often used in truck transmissions, where its strength and durability are key. The dynamic radial load capacity ensures long-term reliability.

For aerospace ground support equipment, 25592-25527 Bearing provides stable performance in tow tractors and cargo loaders. The temperature range suits both indoor hangars and outdoor tarmac operations.
