TS (Single Row Tapered Roller Bearings) (Imperial) 07100-07196

TS (Single Row Tapered Roller Bearings) (Imperial) 07100-07196

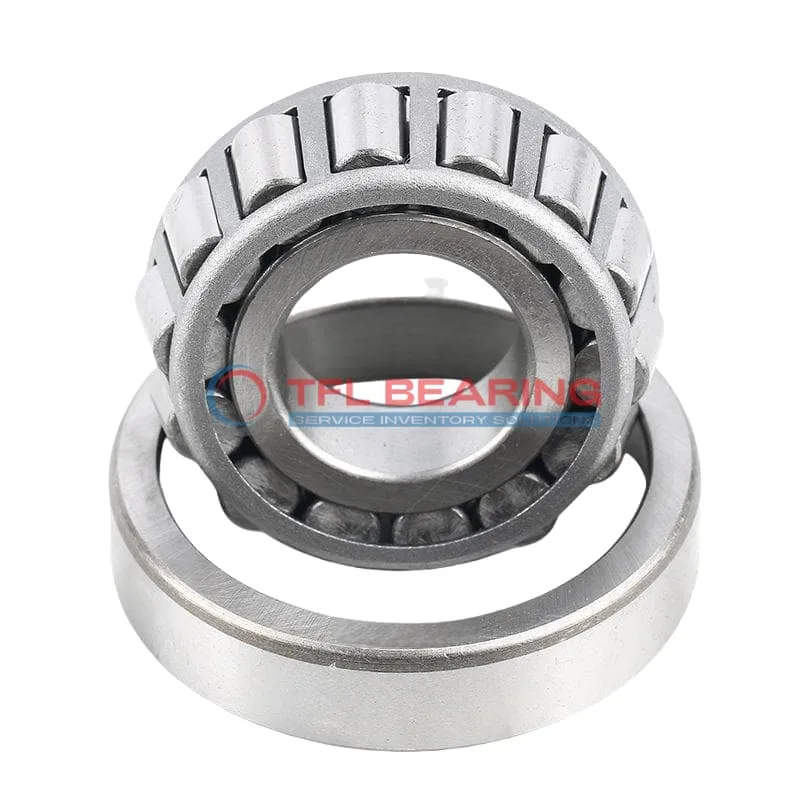

The 07100-07196 is a single-row tapered roller bearing with a 1″ bore and 1.9687″ outer diameter, crafted from durable chrome steel. It handles combined loads up to 6540 lbf radially and 1170 lbf thrust, suitable for moderate-speed applications.

Its open design allows easy lubrication, while the steel cage ensures reliable performance. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for use in gearboxes, axles, or industrial equipment where combined loads are present.

Weighing just 0.3 lb, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 07100-07196
  • Brand TFL
  • Interchangeable Timken
  • Size 1" x 1.9687" x 0.5313"
  • Bore Dia 1"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 1.9687"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.5614"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.375"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.5313"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.04"
  • Cup Backface ToClear Radius 0.04"
  • Cone Frontface Backing Diameter 1.16"
  • Cone Backface Backing Diameter 1.2"
  • Cup Frontface Backing Diameter 1.87"
  • Cup Backface Backing Diameter 1.75"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.11"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 7100
  • Cup Part Number 7196
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 7000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 6540 lbf
  • Static Radial Load 6650 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 1700 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 1170 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.3 lb

Features

Performance Features of 07100-07196 Bearing

07100-07196 Bearing is crafted from chrome steel, offering robust performance under combined loads.
Its dynamic radial load capacity reaches 6540 lbf, making it suitable for demanding applications.
The tapered roller design ensures smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

How Is 07100-07196 Bearing Engineered for Reliability?

07100-07196 Bearing features a single-row tapered roller design, enhancing durability and load handling.
The chrome steel construction resists wear, ensuring a longer service life.
Its standard radial clearance allows for flexibility in different operational conditions.
The bearing operates efficiently within a wide temperature range, from -30° to 110°C.

Built for Durability: 07100-07196 Bearing

07100-07196 Bearing’s chrome steel rollers and rings provide excellent resistance to heavy loads.
The open seal design allows for easy lubrication, reducing maintenance needs.
With a static radial load capacity of 6650 lbf, it ensures reliable performance.
The bearing’s ABEC-1 rating guarantees precision and smooth operation.

Application

Industrial Uses of 07100-07196 Bearing
07100-07196 Bearing is commonly used in industrial machinery, especially in conveyor systems where combined loads are frequent. Its tapered roller design helps manage both radial and thrust forces efficiently.
The chrome steel construction ensures durability in harsh environments, while the open seal allows for easy lubrication. This makes it a reliable choice for heavy-duty applications.

Where Is 07100-07196 Bearing Used?
In automotive applications, 07100-07196 Bearing fits well in wheel hubs and transmissions, thanks to its combined load capacity. The inch sizing makes it compatible with many American-made vehicles.
Its steel cage adds strength, ensuring smooth operation even under high stress. Regular lubrication keeps it performing reliably over time.

Built for Heavy-Duty Use: 07100-07196 Bearing
07100-07196 Bearing excels in construction equipment like bulldozers and cranes, where durability is key. The tapered rollers distribute loads evenly, reducing wear.
The standard radial clearance offers flexibility for different operating conditions. It’s a practical choice for machinery that faces varying loads daily.

Automotive vs Industrial: Applications of 07100-07196 Bearing
In automotive settings, 07100-07196 Bearing handles wheel and gearbox loads with ease. Its inch measurements align with many US vehicle standards.
For industrial uses, it’s ideal for pumps and compressors, where its robust design withstands continuous operation. The open seal simplifies maintenance.
