TS (Single Row Tapered Roller Bearings) (Imperial) 02474-02421

TS (Single Row Tapered Roller Bearings) (Imperial) 02474-02421

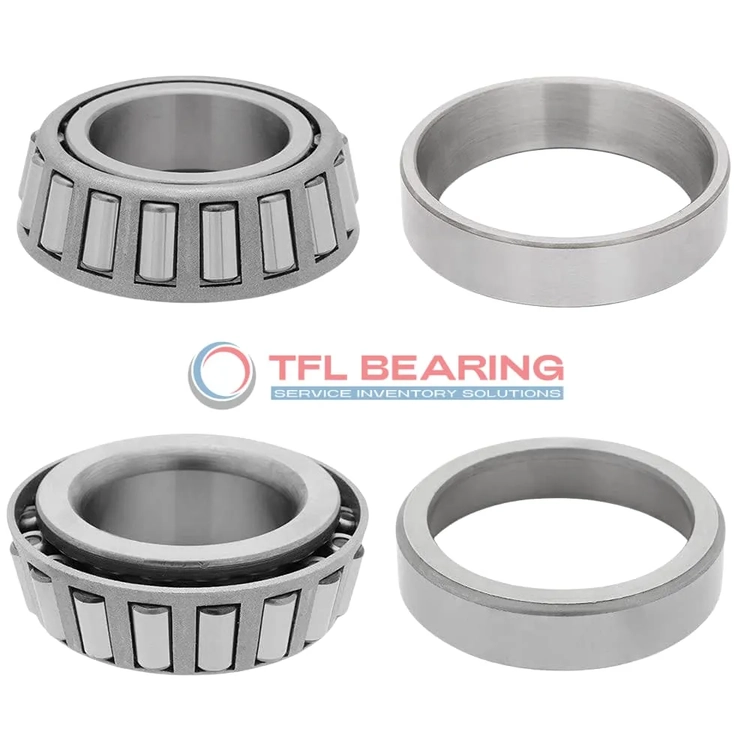

The 02474-02421 is a single-row tapered roller bearing with a 1.125″ bore and 2.6875″ outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 14300 lbf radially and 2650 lbf thrust, suitable for moderate-speed applications.

Its open design allows easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in automotive or industrial equipment where combined loads are common.

Weighing just 0.9 lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for most applications. The standard radial clearance ensures easy installation and maintenance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 02474-02421
  • Brand TFL
  • Interchangeable Timken
  • Size 1.125" x 2.6875" x 0.8751"
  • Bore Dia 1.125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.6875"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.875"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8751"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 1.42"
  • Cone Backface Backing Diameter 1.44"
  • Cup Frontface Backing Diameter 2.52"
  • Cup Backface Backing Diameter 2.32"
  • Cage Cone Frontface Clearance 0.06"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.2"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 2474
  • Cup Part Number 2421
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2400
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 14300 lbf
  • Static Radial Load 15800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3720 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2650 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.9 lb

Features

Performance Features of 02474-02421 Bearing

02474-02421 Bearing is crafted with chrome steel rings and rollers, ensuring strength and durability under combined loads.
Its dynamic radial load capacity reaches 14,300 lbf, making it suitable for heavy-duty applications.

The tapered roller design distributes loads evenly, reducing stress and extending service life.
With a standard radial clearance, it offers reliable performance in various operating conditions.

02474-02421 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage maintains roller alignment, ensuring smooth and consistent operation.

The open design simplifies lubrication, helping to maintain optimal performance.
This bearing is interchangeable with Timken models, providing flexibility in replacements.

Application

Industrial Uses of 02474-02421 Bearing
02474-02421 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 02474-02421 Bearing Used?
You’ll often find 02474-02421 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its precise imperial sizing makes it a reliable choice for older vehicle models.

Built for Heavy-Duty Use: 02474-02421 Bearing
02474-02421 Bearing excels in industrial gearboxes, providing smooth operation under high radial and thrust loads. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 02474-02421 Bearing
In automotive systems, 02474-02421 Bearing supports wheel assemblies, while in aerospace, it’s used in auxiliary equipment. Its ABEC-1 rating ensures consistent performance in both fields.

Perfect Fit for Automation: 02474-02421 Bearing
02474-02421 Bearing works well in automated conveyor systems, where its steel cage reduces friction. The standard radial clearance makes it adaptable to various load conditions.
