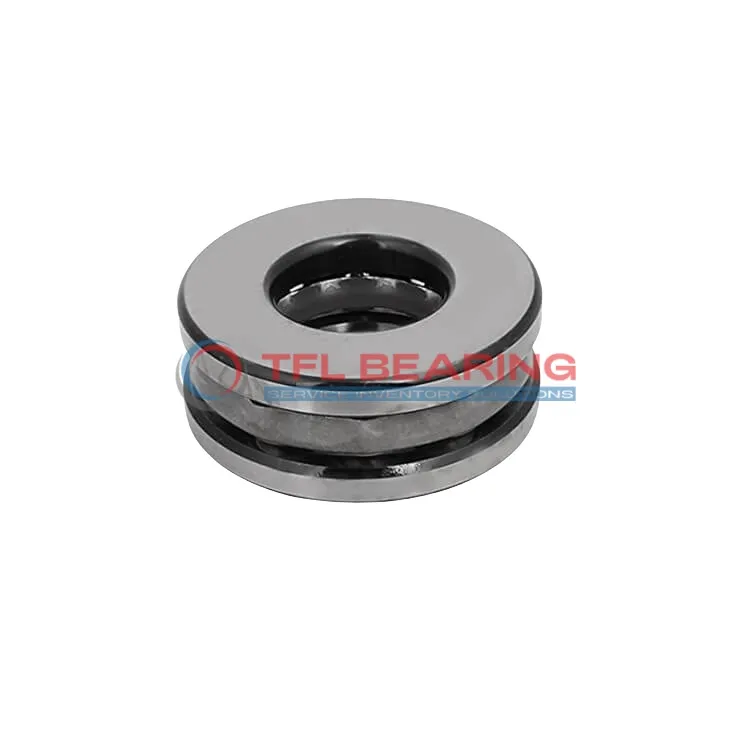

Thrust Ball Bearing With W/ Self Aligning 53207+U207

Thrust Ball Bearing With W/ Self Aligning 53207+U207

The 53207+U207 is a self-aligning thrust ball bearing with a 35mm bore and 62mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 7891 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

The self-aligning feature helps compensate for minor misalignments, making installation easier. Suitable for applications like heavy machinery or industrial equipment where alignment adjustments are needed.

Weighing 0.28kg, it’s a robust yet manageable choice. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 53207+U207
  • Brand TFL
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Washer Outer Dia 65 mm
  • Wahser Outer Dia Tolerance -0.015mm to 0
  • Width 19.9 mm
  • Width Tolerance +0.02mm to -0.25mm
  • Width With Washer 22 mm
  • Width With Washer Tolerance +0.02mm to -0.25mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Thrust Load 7891 lbf
  • Static Thrust Load 15062 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 0.28 kg

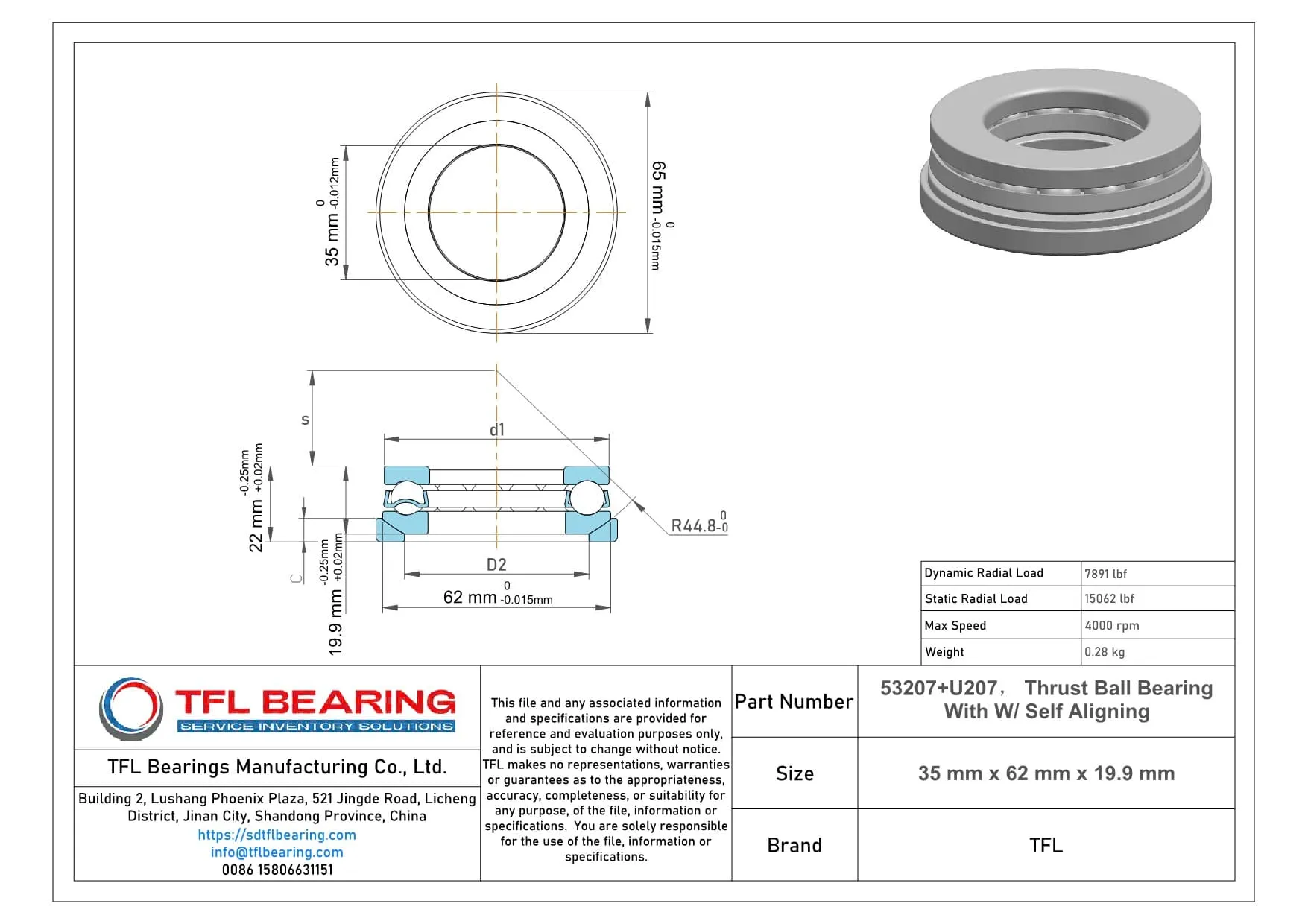

Thrust Ball Bearing With W/ Self Aligning 53207+U207 dimension drawing
Download DWG Download PDF

Features

Why Choose 53207+U207 Bearing for Precision Tasks?

53207+U207 Bearing features a self-aligning design, ensuring precise operation even under misaligned conditions.
Its chrome steel construction provides excellent resistance to wear and tear.

With a dynamic thrust load capacity of 7891 lbf, it handles heavy loads efficiently.
The open seal type allows for easy lubrication, maintaining smooth performance.

53207+U207 Bearing operates within a temperature range of -30° to 110°C, suitable for various environments.
Its robust design ensures long service life with minimal maintenance.

The bearing’s dimensions (35 mm×65 mm×22 mm) make it compact yet powerful for its size.
It is ideal for applications requiring both precision and durability.

Application

Key Fields for 53207+U207 Bearing
In industrial settings, 53207+U207 Bearing is commonly used in heavy machinery like presses and gearboxes, where its self-aligning feature helps handle misalignment issues. The open seal design simplifies lubrication, ensuring long service life even in demanding conditions.

Where Is 53207+U207 Bearing Used?
You’ll often find 53207+U207 Bearing in automotive applications, particularly in clutch assemblies and steering systems. Its high dynamic thrust load capacity makes it reliable for handling frequent directional changes.

Built for Heavy-Duty Use: 53207+U207 Bearing
This bearing excels in construction equipment, such as cranes and excavators, where its chrome steel construction withstands heavy loads. The self-aligning capability also reduces wear from uneven force distribution.

Medical vs Industrial: Where 53207+U207 Bearing Excels
While not typical for medical devices, 53207+U207 Bearing shines in industrial automation, like robotic arms, where precision and durability are key. Its metric sizing ensures compatibility with standard European machinery.

Practical Applications of 53207+U207 Bearing
In household appliances like washing machines, 53207+U207 Bearing supports rotating parts with minimal noise. The temperature range suits both indoor and outdoor use, making it versatile for various environments.
