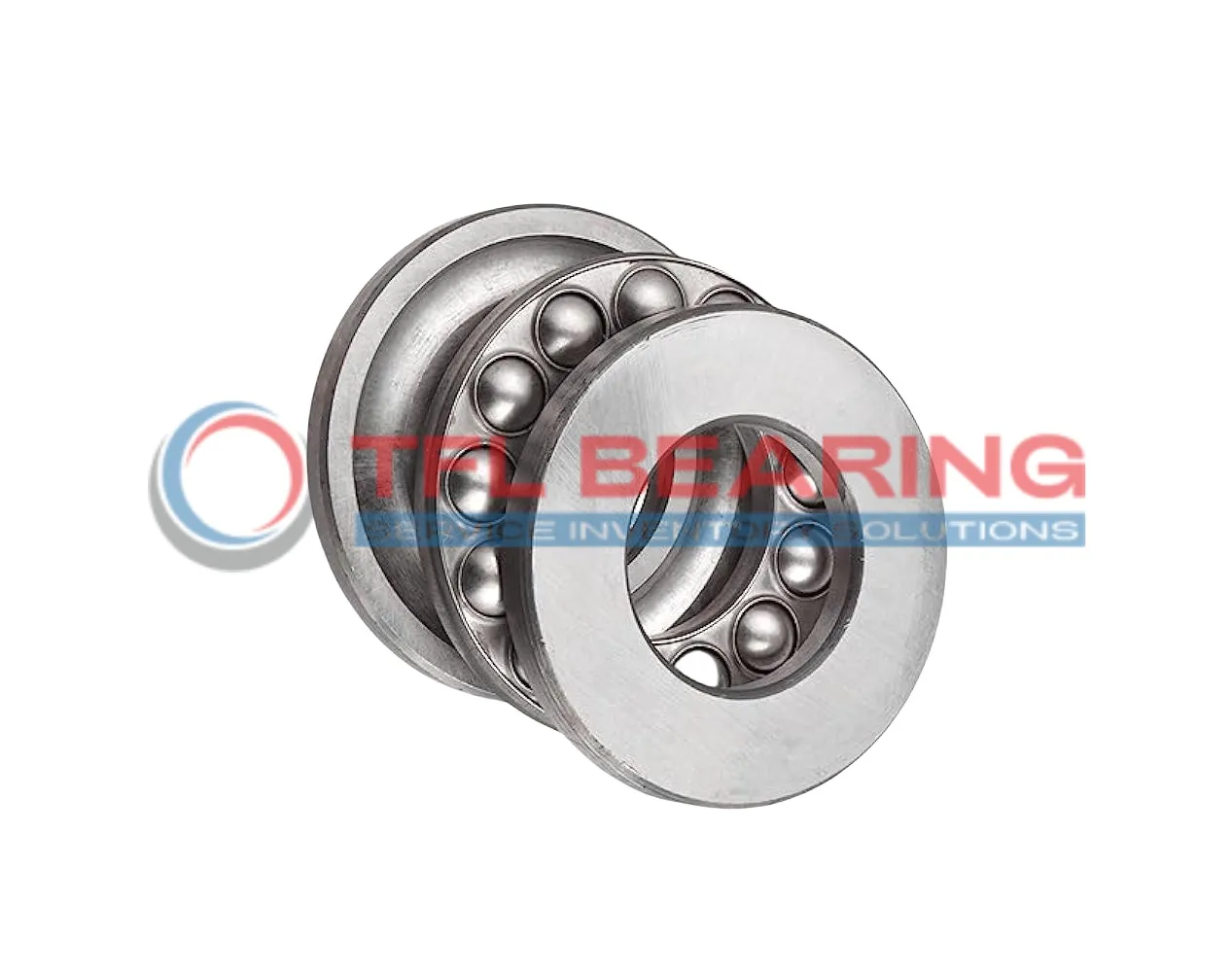

Thrust Ball Bearing With Outside Band T-100-40

Thrust Ball Bearing With Outside Band T-100-40

The T-100-40 is a thrust ball bearing measuring 2.25″ by 3.875″ by 1.25″, made from durable 52100 chrome steel. It handles heavy thrust loads up to 10,635 lbf, with performance varying at different speeds.

Its design includes an outside band for added stability, and it requires regular lubrication for smooth operation. The bearing works well in temperatures ranging from -30°C to 110°C.

With 19 balls, each 1/2″ in diameter, it offers reliable performance under pressure. Ideal for industrial machinery or heavy-duty equipment where thrust loads are common.

Weighing 0.97kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, making it safe for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-40
  • Brand TFL
  • Bore Dia 2.25"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 2.281250"
  • Outer Dia 3.875000"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 1.25"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 1/2"
  • Ball Qty 19
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 10635 lbf
  • Dynamic Thrust Load(100 RPM) 7005 lbf
  • Dynamic Thrust Load(500 RPM) 4315 lbf
  • Dynamic Thrust Load(1500 RPM) 3100 lbf
  • Static Thrust Load 42440 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.97 kg
Thrust Ball Bearing With Outside Band T-100-40 dimension drawing
Download DWG Download PDF

Features

How Does T-100-40 Bearing Handle Heavy Loads?

T-100-40 Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to high thrust loads.
Its static thrust load capacity reaches 42440 lbf, making it suitable for demanding industrial applications.

The bearing’s design includes 19 evenly spaced 1/2″ balls, ensuring balanced load distribution and smooth operation.
With a temperature range of -30° to 110°C, T-100-40 Bearing performs reliably in various environments.

Lubrication is required for optimal performance, enhancing the bearing’s longevity and efficiency.
The inch-based measurements ensure compatibility with systems using imperial units.

Application

Industrial Uses of T-100-40 Bearing
T-100-40 Bearing works well in heavy machinery like hydraulic presses, where its high thrust load capacity handles intense pressure. The inch sizing makes it a good fit for equipment designed to imperial measurements.

In automotive applications, T-100-40 Bearing supports clutch mechanisms and gearboxes, ensuring smooth operation under demanding conditions. Its chrome steel construction offers durability for long-term use.

For automation systems, T-100-40 Bearing is suitable for robotic arms requiring precise thrust control. The open design allows for easy lubrication, maintaining performance in continuous operations.

Medical imaging devices benefit from T-100-40 Bearing’s reliable load handling, particularly in adjustable scanning tables. The stainless steel components ensure minimal wear over time.

Home appliances like washing machines use T-100-40 Bearing in their drum assemblies, where its balanced design reduces vibration. The temperature range also suits typical household conditions.
