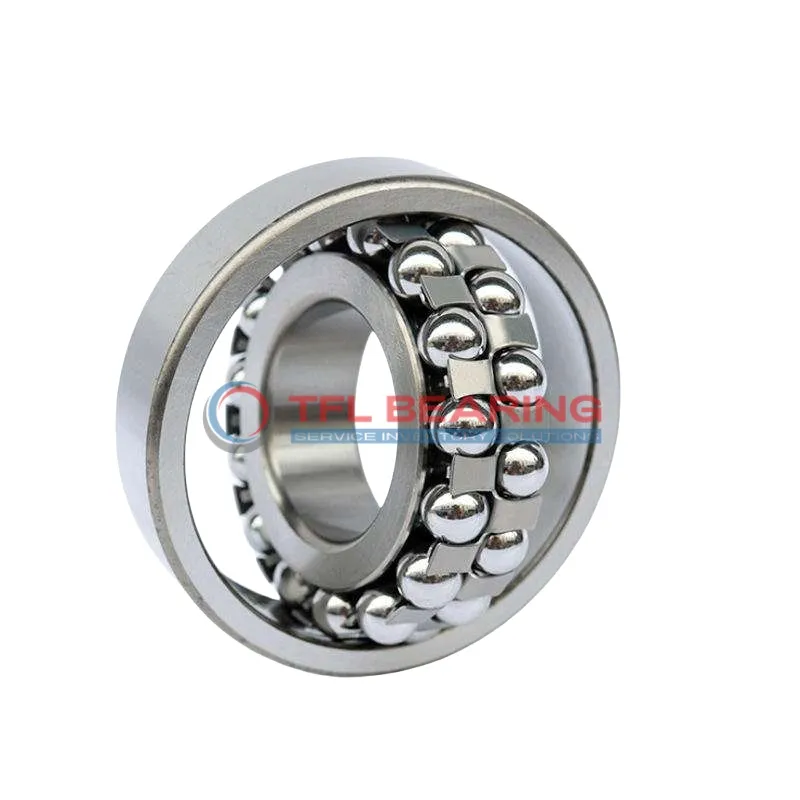

Self Aligning Ball Bearings 1222 C/3

Self Aligning Ball Bearings 1222 C/3

The 1222 C/3 is a self-aligning ball bearing with a 110mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 19890 lbf and runs smoothly at speeds up to 4300 RPM.

Its double-row design helps it adjust to misalignment, while the open seal allows for easy lubrication. The stainless steel cage ensures durability and consistent performance.

This bearing suits temperatures from -30°C to 110°C, making it versatile for various environments. It’s interchangeable with SKF models, ideal for industrial machinery or heavy equipment.

Weighing 5.15kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for radial load applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 1222 C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 38 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 140.35 mm
  • Internal Diameter On Outer Ring 173.7 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 19890 lbf
  • Static Radial Load 8775 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4300 rpm
  • Weight 5.15 kg
  • Price（$） 301.15
Self Aligning Ball Bearings 1222 C/3 dimension drawing
Download DWG Download PDF

Features

How Does 1222 C/3 Bearing Reduce Friction?

1222 C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
Its optimised construction minimises friction, allowing for efficient operation even under heavy loads.

The stainless steel cage maintains proper ball alignment, reducing wear and extending the bearing’s lifespan.
With a dynamic radial load capacity of 19890 lbf, it delivers reliable performance in various applications.

1222 C/3 Bearing operates within a temperature range of -30° to 110°C, making it suitable for diverse environments.
Its open seal type simplifies maintenance while ensuring consistent lubrication.

Application

Industrial Uses of 1222 C/3 Bearing
The 1222 C/3 Bearing is commonly used in heavy machinery like conveyors and mixers, where its double-row design handles radial loads efficiently. Its open seal allows for easy lubrication, extending service life in dusty environments.

In automotive applications, 1222 C/3 Bearing fits well in wheel hubs and transmissions, thanks to its robust chrome steel construction. The metric sizing ensures compatibility with various vehicle designs, making it a versatile choice.

For automation systems, 1222 C/3 Bearing supports robotic arms and assembly lines, where smooth rotation is essential. The stainless steel cage adds durability, reducing wear during continuous operation.

Where Is 1222 C/3 Bearing Used?
You’ll often find 1222 C/3 Bearing in industrial fans and pumps, where its self-aligning feature compensates for minor misalignments. The wide temperature range also makes it suitable for both hot and cold environments.

In household appliances like washing machines, 1222 C/3 Bearing ensures quiet and reliable performance. Its radial load capacity handles the constant motion of drum rotations with ease.
