Thrust Ball Bearing With Outside Band T-100-39

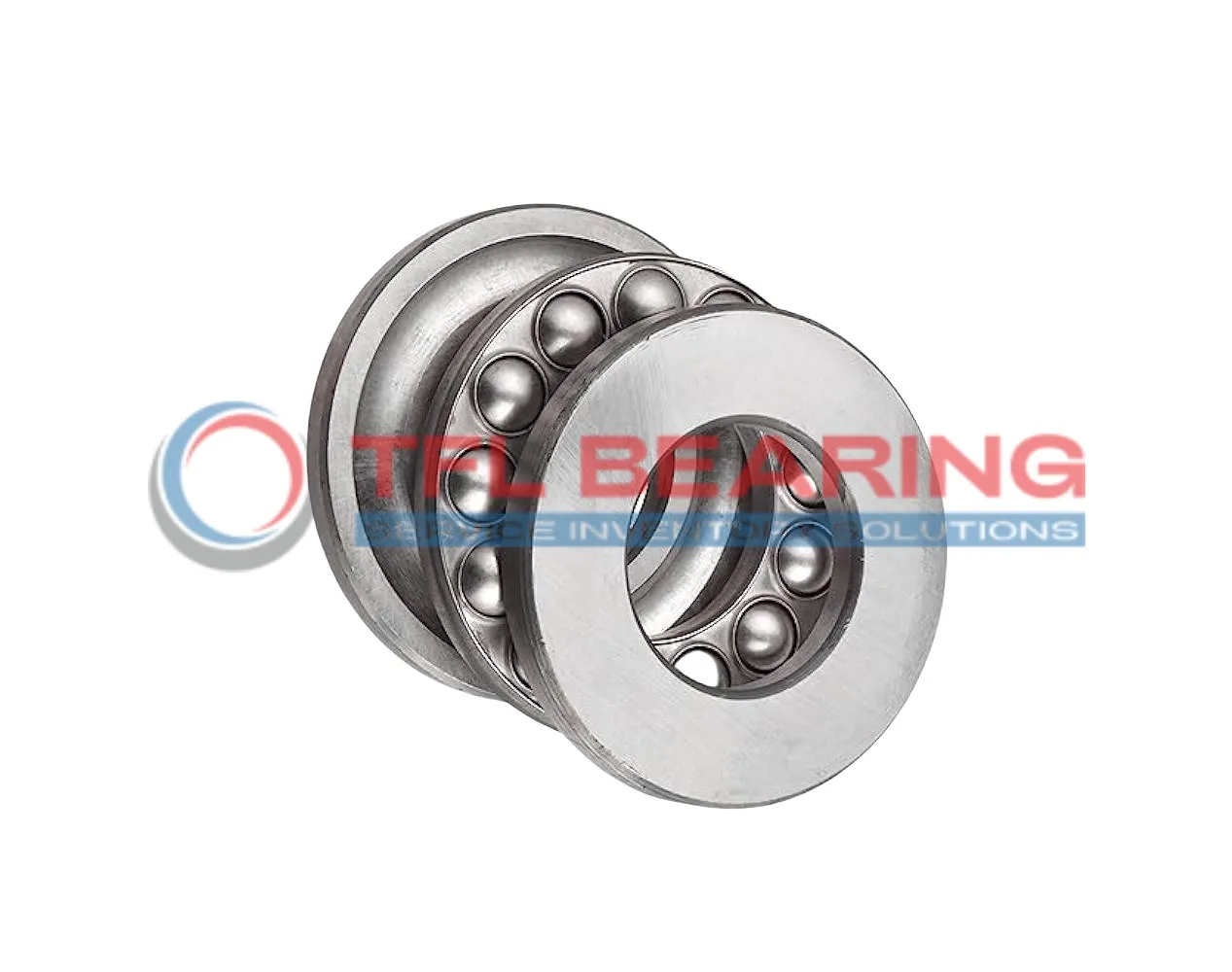

Thrust Ball Bearing With Outside Band T-100-39

The T-100-39 is a thrust ball bearing measuring 2.19″ by 3.88″ by 1.25″, crafted from durable 52100 chrome steel. It handles thrust loads up to 10,635 lbf, with performance varying by speed, making it versatile for different applications.

Its design includes 19 steel balls, each 1/2″ in diameter, ensuring smooth operation. The bearing requires regular lubrication to maintain efficiency and works in temperatures from -30°C to 110°C.

The outer band adds stability, while precise tolerances ensure a reliable fit. Ideal for heavy-duty machinery or industrial equipment where high thrust loads are common.

Compliant with RoHS and REACH standards, it’s a safe and robust choice. Weighing 1.02kg, it balances strength with manageable size for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-39
  • Brand TFL
  • Bore Dia 2.187500"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 2.218750"
  • Outer Dia 3.875000"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 1.25"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 1/2"
  • Ball Qty 19
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 10635 lbf
  • Dynamic Thrust Load(100 RPM) 7005 lbf
  • Dynamic Thrust Load(500 RPM) 4315 lbf
  • Dynamic Thrust Load(1500 RPM) 3100 lbf
  • Static Thrust Load 42440 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.02 kg
Thrust Ball Bearing With Outside Band T-100-39 dimension drawing
Download DWG Download PDF

Features

How Does T-100-39 Bearing Handle Heavy Loads?

T-100-39 Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to high thrust loads.
Its static thrust load capacity reaches 42,440 lbf, making it suitable for heavy-duty applications.
The bearing’s design ensures stable performance across various speeds, from 100 to 1,500 RPM.
With a temperature range of -30° to 110°C, it performs reliably in diverse conditions.

Application

Industrial Uses of T-100-39 Bearing
T-100-39 Bearing is commonly used in heavy machinery, such as hydraulic presses and industrial pumps, where its high thrust load capacity ensures reliable performance.
The inch sizing makes it a suitable choice for equipment designed to imperial measurements, particularly in North American markets.

Where Is T-100-39 Bearing Used?
You’ll often find T-100-39 Bearing in automotive applications like steering systems, where its durability handles constant thrust loads.
Its chrome steel construction also makes it resistant to wear, even in high-stress environments.

Built for Heavy-Duty Use: T-100-39 Bearing
T-100-39 Bearing excels in construction equipment, such as bulldozers and cranes, thanks to its robust design and high static thrust load rating.
The required lubrication ensures smooth operation, even under demanding conditions.

Automotive vs Aerospace: Applications of T-100-39 Bearing
In automotive settings, T-100-39 Bearing supports components like transmissions, while in aerospace, it’s used in auxiliary systems requiring precise thrust handling.
Its temperature range of -30° to 110°C makes it versatile for various climates and operating conditions.

Practical Applications of T-100-39 Bearing
T-100-39 Bearing is a reliable choice for wind turbines, where its ability to handle dynamic thrust loads at different RPMs is crucial.
The stainless steel balls and chrome steel rings ensure long-lasting performance in these high-wear environments.
