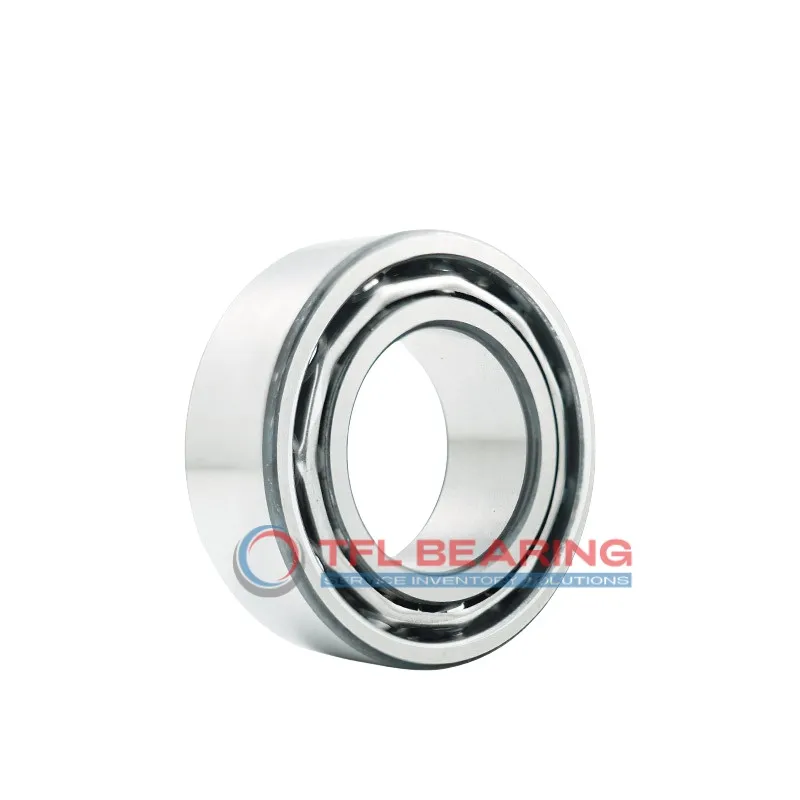

Double Row Angular Contact Ball Bearings (General) 305608 B

Brand: TFL Bearing Interchangeable: SKF 305608 B 160 mm × 215 mm × 56 mm Metric Open
Part number: 305608 B
Double Row Angular Contact Ball Bearings (General) 305608 B
In Stock
US$203.10 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia160 mm
Bore Dia Tolerance-0.018mm to 0
Outer Dia215 mm
Outer Dia Tolerance-0.02mm to 0
Width56 mm
Width Tolerance-0.05mm to 0
Chamfer Dimension2 mm
Internal Diameter On Outer Ring181 mm
Performance
Dynamic Radial Load30,375 lbf
Static Radial Load49,500 lbf
Max Speed3,000 rpm
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionAngular Contact
ConstructionDouble Row
Seal TypeOpen
Distance Pressure Point (a)185 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight5.45 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialStainless Steel
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 305608 B is a double-row angular contact ball bearing with a 160mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 30375 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like industrial machinery or heavy equipment where angular contact loads are common.

Weighing 5.45kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Performance Features of 305608 B Bearing

305608 B Bearing is built with chrome steel rings and balls, offering strong resistance to radial and angular loads.
Its dynamic radial load capacity reaches 30375 lbf, ensuring dependable performance in heavy-duty applications.

The double-row design of 305608 B Bearing provides enhanced stability and load distribution.
With a maximum speed of 3,000 rpm, it balances durability and efficiency in various industrial settings.

305608 B Bearing operates smoothly within a temperature range of -30° to 110 °C.
The stainless steel cage maintains ball alignment, reducing wear and extending the bearing’s service life.

305608 B Bearing’s open design allows for easy lubrication, ensuring consistent performance.
Its P6 tolerance class ensures precision and reliability in demanding applications.

Application

Key Fields for 305608 B Bearing
305608 B Bearing is commonly used in industrial machinery, especially where high radial and axial loads are present, such as in heavy-duty gearboxes and large conveyor systems. Its double-row design provides stability and load distribution, making it suitable for demanding environments.

In the automotive sector, 305608 B Bearing is often found in wheel hubs and drivetrain components, where its angular contact capability ensures smooth handling of combined loads. The metric sizing and P6 tolerance class make it a reliable choice for precision applications.

For automation systems, 305608 B Bearing supports robotic arms and CNC machinery, offering consistent performance under varying operational stresses. The stainless steel cage enhances durability, reducing maintenance needs in high-cycle applications.

Medical imaging devices also benefit from 305608 B Bearing’s precision and reliability, ensuring accurate movement in scanners and diagnostic equipment. The chrome steel construction provides long-term performance in critical healthcare settings.

In consumer appliances like large industrial fans, 305608 B Bearing’s robust design ensures quiet and efficient operation. Its lubricated construction helps maintain performance over extended periods, even in continuous-use scenarios.
