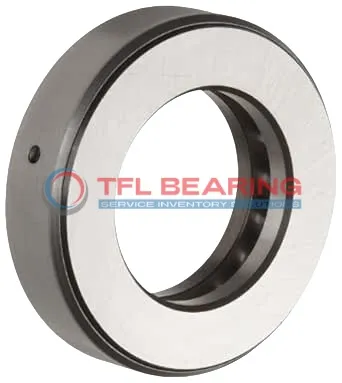

Thrust Ball Bearing With Outside Band T-100-34

Thrust Ball Bearing With Outside Band T-100-34

The T-100-34 is a thrust ball bearing with a 1.75-inch bore and 3.1875-inch outer diameter, crafted from durable 52100 chrome steel. It handles thrust loads up to 9255 lbf and performs well across various speeds, from 100 to 1500 RPM.

Its outside band design provides stability, while the 15 chrome steel balls ensure smooth operation. The bearing requires lubrication for optimal performance and works in temperatures from -30°C to 110°C.

With precise tolerances and a weight of 0.61kg, it’s a sturdy yet manageable choice. Ideal for heavy-duty applications like industrial machinery or automotive systems where reliable thrust support is needed.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various engineering and maintenance tasks.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-34
  • Brand TFL
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.781250"
  • Outer Dia 3.187500"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 1.125000"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 1/2"
  • Ball Qty 15
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 9255 lbf
  • Dynamic Thrust Load(100 RPM) 6095 lbf
  • Dynamic Thrust Load(500 RPM) 3755 lbf
  • Dynamic Thrust Load(1500 RPM) 2825 lbf
  • Static Thrust Load 33505 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.61 kg

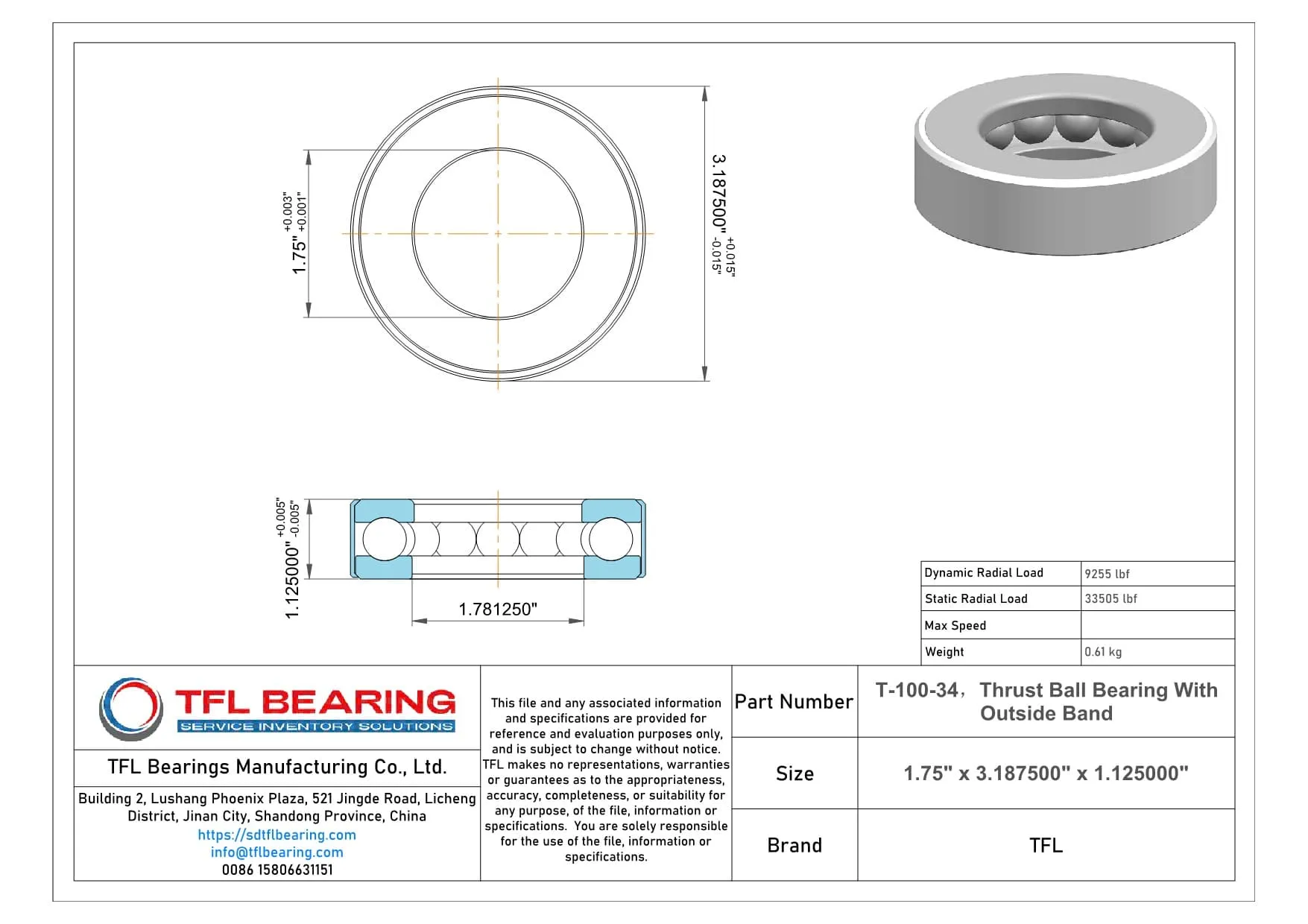

Thrust Ball Bearing With Outside Band T-100-34 dimension drawing
Download DWG Download PDF

Features

How Does T-100-34 Bearing Handle Heavy Loads?

T-100-34 Bearing is crafted from 52100 chrome steel, offering robust resistance to high thrust loads.
Its static thrust load capacity reaches 33505 lbf, making it suitable for demanding industrial applications.

The bearing’s 15 chrome steel balls ensure smooth operation under varying dynamic loads.
With a temperature range of -30° to 110°C, it performs reliably in diverse environments.

T-100-34 Bearing requires lubrication to maintain optimal performance and longevity.
Its inch-based measurements ensure compatibility with systems using imperial standards.

Application

Industrial Uses of T-100-34 Bearing
T-100-34 Bearing is commonly used in heavy machinery, such as hydraulic presses and industrial gearboxes, where its high thrust load capacity ensures reliable performance.
The inch sizing makes it a convenient fit for equipment designed to imperial measurements, particularly in North American markets.

What Makes T-100-34 Bearing a Preferred Choice?
In automotive applications, T-100-34 Bearing handles thrust loads in components like steering systems and transmissions, thanks to its durable chrome steel construction.
Its balanced design also helps reduce wear, extending the lifespan of critical parts.

Built for Heavy-Duty Use: T-100-34 Bearing
For automation systems, T-100-34 Bearing provides smooth operation in robotic arms and conveyor mechanisms, even under continuous use.
The precise tolerances ensure consistent performance, making it suitable for high-precision tasks.

Medical vs Industrial: Where T-100-34 Bearing Excels
While T-100-34 Bearing isn’t typically used in medical devices, it shines in industrial settings like packaging machines and printing presses.
Its robust design handles frequent starts and stops without compromising efficiency.

Practical Applications of T-100-34 Bearing
In consumer appliances, T-100-34 Bearing can be found in heavy-duty mixers or power tools, where its thrust capacity supports demanding operations.
The lubrication requirement ensures smooth running, even under prolonged use.
